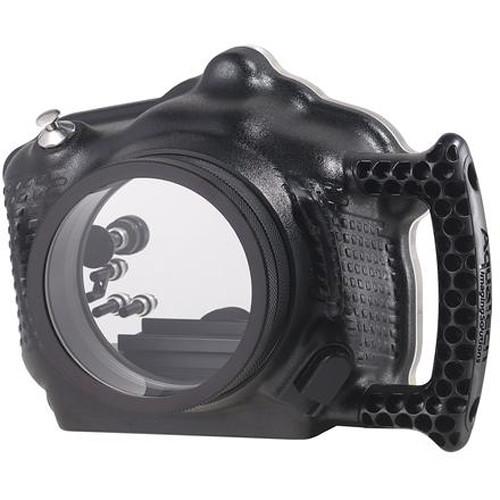

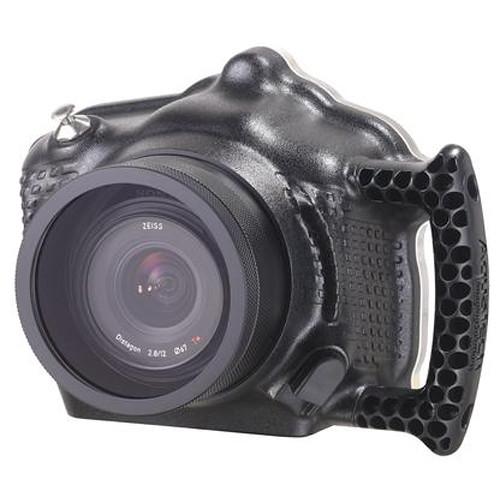

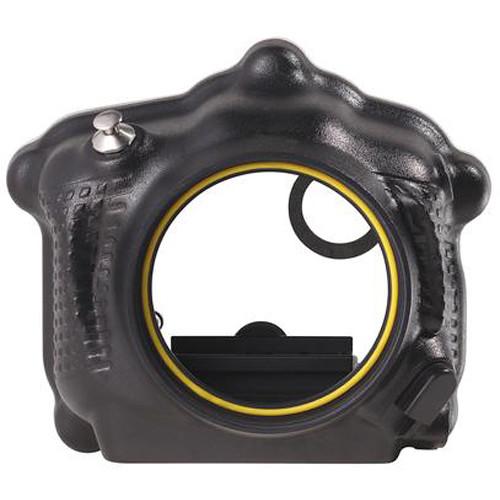

Product description Capture photos and video over, under, on, or near the water's surface with your Fujifilm X-T2 Mirrorless Digital Camera in AquaTech's ATB XT2 Camera Water Housing. The enclosure is offered here in a kit with the 2-Button Pistol Grip Trigger and LP-5 Flat Lens Port. Featuring a depth rating of 33', the ATB is designed for shallow water and surface use and shouldn't be operated at depths beyond 15' for longer than 5 min.
The housing's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and removable side grip afford optimal handling and comfort. The supplied Pistol Grip allows you to aim and maneuver the housing and capture images with a single hand, all without shaking the camera--thus ensuring clear, blur-free shots.
The grip mounts onto the bottom of the camera and is light and ergonomic in your hand. Its waterproof shutter release switch is highly sensitive and direct to help ensure you don't miss your shot. Additionally, the unit features dedicated focus control.
The housing body is crafted from durable polyurethane, while the controls are made of stainless steel, aluminum, and high-strength plastics. All the aluminum parts have been anodized for resistance to corrosion and other wear and tear. The enclosure ships with the LP-5 Port for various lenses, and accepts optional, interchangeable ports for other optics. For full compatibility information, see the Port Chart. - Waterproofing
-
- Depth rating: 33'
- Designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than 5 min
- Controls, Handling, and Operation
-
- Tactile, mechanical push-button and dial controls provide easy access to important camera functions: top dial, playback, multi-controller (up, down, left, right, center), manual shutter

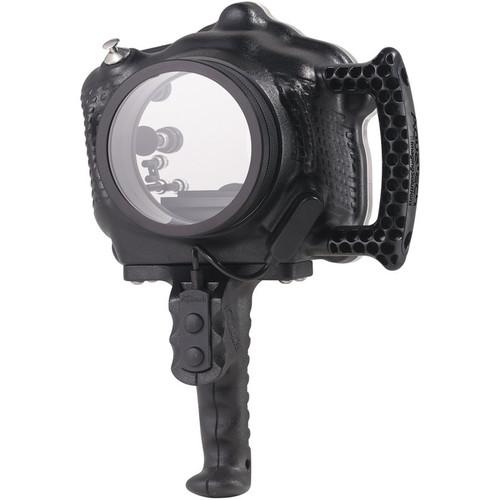

- Included pistol grip mounts onto bottom of housing, allowing you to aim and maneuver housing and capture images with one hand, all without shaking camera--thus ensuring blur-free shots
- Great for one-handed, run-and-gun style shooting
- Pistol features waterproof shutter release switch, which is highly sensitive and direct, as well as dedicated focus control. Zone focus may end up yielding sharpest images
- Ergonomically designed housing, pistol grip, and removable side grip afford optimal handling and comfort
- Side grip serves as alternative to pistol grip and allows you to shoot with the manual shutter control on housing
- Construction Details
-
- Body crafted from durable polyurethane
- Controls made of stainless steel, aluminum, and high-strength plastics
- All aluminum parts have been anodized for resistance to corrosion and other wear and tear
- Lens Port System
-
- Ships with LP-5 Flat Port for X-Mount 14mm f/2.8, 18mm f/2, 23mm f/2, 27mm f/2.8, 35mm f/1.4, 35mm f/2, 90mm f/2, and 10-24mm f/4 lenses
- Compatible with an array of optional, interchangeable LP-series ports that accommodate various other lenses
- For complete info, see Port Chart linked above
- LP-5 features removable, replaceable, acrylic front element
- Lighting
-
- No external strobe connector and not compatible with optional flash housings
- If artificial lighting is desired or needed, connect a constant light source, such as an LED, to your system
- As housing is meant for use on or relatively close to water's surface, available sunlight will be sufficient much of the time

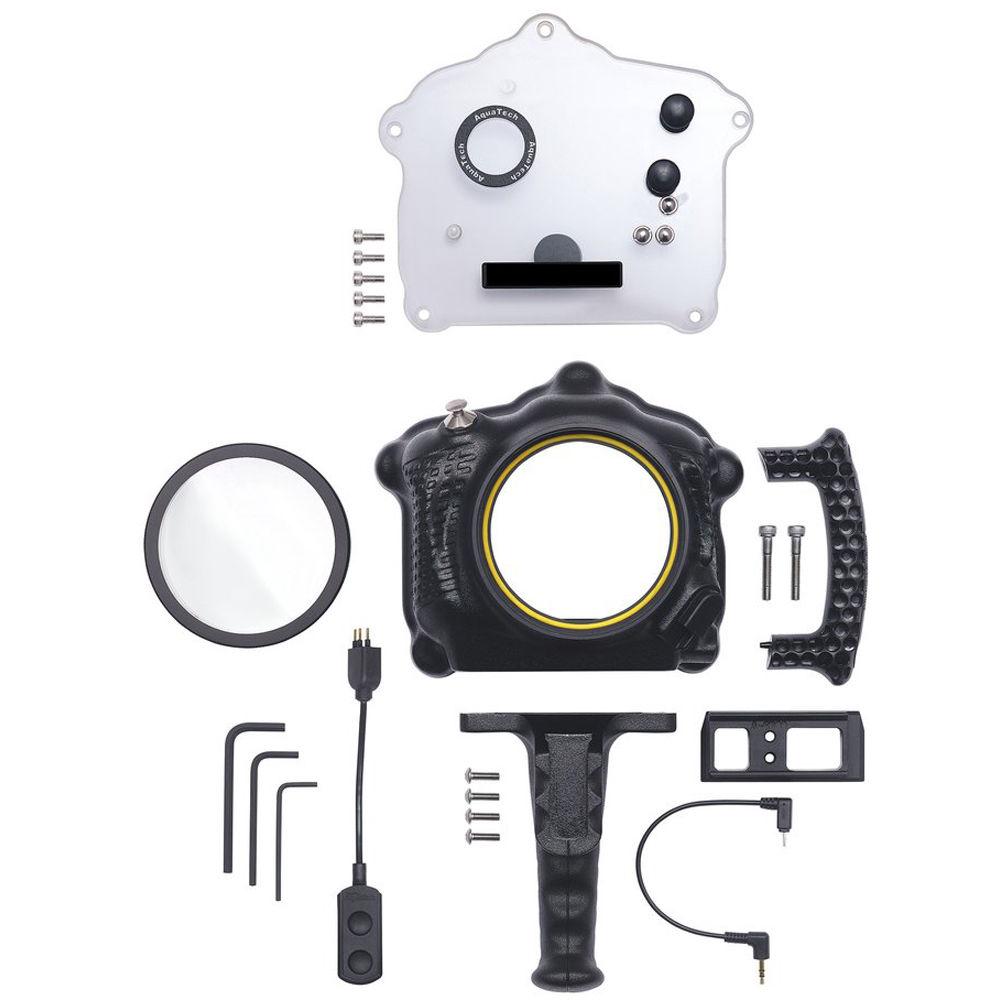

UPC: 810778011784 In the Box AquaTech ATB XT2 Camera Water Housing for Fujifilm X-T2 Camera Plate Removable Side Handle X-T2 Cable Release Pistol Grip Trigger Kit Tool Kit LP-5 Flat Port adaezzeadzycutzywtwfrfcracydwfwvbw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech ATB XT2 Camera Water Housing for Fujifilm X-T2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech XT2 Specs | Depth Rating | 33' / 10 m | | Control Type | Mechanical push-buttons and dials | | Controls | Access to Important Camera Functions: Top dial, playback, multi-controller (up, down, left, right, center), manual shutter | | Material of Construction | Body: Polyurethane
Lens Port: Acrylic front element
Controls/Parts: Stainless steel, anodized aluminum, and plastic | | Lens Port | Ships with LP-5 Flat Port for X-mount 14mm f/2.8, 18mm f/2, 23mm f/2, 27mm f/2.8, 35mm f/1.4, 35mm f/2, 90mm f/2, and 10-24mm f/4
Housing accepts system of optional, interchangeable LP-series ports that accommodate various other lenses
For complete info, see Port Chart linked in Overview | | Buoyancy | Slightly positive | | External Strobe Connector | No | | Dimensions | 6.3 x 6.7 x 4.7" / 16 x 17 x 12 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 13.2 x 10.4 x 6.2" |
