Product description

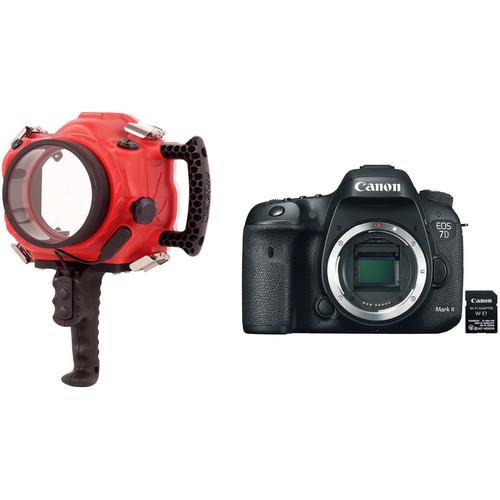

• AquaTech BASE 7D2 Underwater Sport Housing for Canon EOS 7D Mark II
  • AquaTech Pistol Grip For Sport Housing
  Capture photos and video over, under, or near the water's surface with your Canon EOS 7D Mark II DSLR camera in this AquaTech BASE 7D2 Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.

  The included 2-Button Pistol Grip Trigger enables dedicated focus control and shutter operation. Zoom control is enabled with optional zoom gears for applicable lenses. The remaining camera functions must be preset or automatic, as there are no controls for them on this entry-level housing. For those looking to get started in underwater photography or video recording and seeking a simple solution, this housing fits the bill.

  An optional bulkhead sync connector, supplied with the optional AquaTech Strike flash housings, enables the BASE 7D2 to work with external strobes and Pocket Wizards. Housings are available for various flash units.

  The BASE 7D2 has an ergonomic design with a side grip handle. Its body is crafted from durable polyurethane, while smaller parts are made from stainless steel and anodized aluminum for resistance to corrosion. The O-ring and quick-release clips with safety latches ensure a watertight seal. Additionally, a standard threaded mounting point at the bottom of the housing enables connection to an optional tripod or tray.

  The housing is compatible with AquaTech's full range of interchangeable P series ports for various lenses, and includes the P-65 Lens Port, which accommodates an array of lenses with a maximum length of 63mm. For full compatibility information, see Port Chart.
  Waterproofing
  • • Depth rating of 33'
    • Designed for shallow water and surface use, housing shouldn't be operated at depths beyond 15' for longer than five minutes
    • O-ring and quick-release clips with safety latches ensure a watertight seal
  Controls, Handling and Operation
  • • Supplied 2-Button Pistol Grip Trigger provides dedicated focus control and shutter operation independently, allowing you to capture blur-free images with ease
    • Zoom control enabled with optional zoom gears for applicable lenses
    • Remaining camera functions must be preset or automatic, as there are no controls for them on this entry-level housing
    • Ergonomic design with side grip for optimal handling
    • Camera Plate attaches to bottom of camera and slides into mount inside housing
  Construction Details
  • • Body made from durable polyurethane
    • Smaller parts constructed from stainless steel and corrosion-resistant anodized aluminum, as well as high-strength plastic
  Lens Port System
  • • Accepts AquaTech's full range of interchangeable P series ports for various lenses
    • Includes P-65 Lens Port which accommodates an array of lenses with a maximum length of 63mm, including the EF 24mm f/2.8/IS, 28mm f/1.8, 28mm f/2.8 IS, 35mm f/2/IS USM, 50mm f/1.4, and 50mm f/1.8
    • For full compatibility information, see Port Chart linked above
    • P-65 port: Flat acrylic front element with scratch/abrasion-resistant coating, acrylic body, and screw-on mount
  External Strobe Use
  • • Optional bulkhead sync connector, included with optional AquaTech Strike flash housings, permits BASE 7D2 to work with external strobes and Pocket Wizards
  Mounting
  • • Standard threaded mounting point on bottom of housing enables connection to optional tripod or tray
  UPC: 810778011135
• Canon EOS 7D Mark II DSLR Camera Body with W-E1 Wi-Fi Adapter
  • AquaTech Pistol Grip For Sport Housing
  An already very capable imaging machine, the EOS 7D Mark II DSLR Camera Body with W-E1 Wi-Fi Adapter from Canon takes the camera's capabilities up a notch with the inclusion of an SD-card-sized item that adds Wi-Fi connectivity to the camera.

  Designed with a penchant for speed, the 7D Mark II is characterized by its APS-C-sized 20.2MP CMOS sensor, dual DIGIC 6 image processors, and a top continuous shooting rate of 10 fps. Both a 65-point all cross-type phase-detection AF system and Dual Pixel CMOS AF technology benefit fast, accurate focusing performance for both optical viewfinder and live view shooting. Additionally, the combination of the dual image processors along with the CMOS sensor also contribute to enhanced low-light sensitivity to a native ISO 16000, which is further expandable to ISO 51200. The 7D Mark II comfortably performs in a range of challenging situations, and while ideally situated as a tool for sports and wildlife photographers, it resides equally as well in the hands of contemporary multimedia image-makers.

  Complementing the 7D Mark II's still imaging assets, support for recording full HD 1080p video is available, in multiple frame rates up to 60 fps. Beyond saving to internal memory cards, uncompressed video can also be recorded to optional external recorders via an HDMI connection. Custom Movie Servo AF, which is aided by the Dual Pixel CMOS AF system, serves to highlight movie recording abilities by enabling controllable speed and sensitivity settings for continuous focusing with moving subjects.

  Housing the robust set of imaging capabilities is an equally robust dust and weather-sealed magnesium alloy body, which contains a durable shutter mechanism tested for up to 200,000 actuations. A fixed 3.0" 1.04m-dot Clear View II LCD screen is incorporated into the design, along with a bright Intelligent Viewfinder II optical finder, for versatile monitoring and playback abilities. Customizable buttons are placed about the body for personalized control over different settings and a built-in GPS module automatically embeds location data into files for geotagging images when shooting.
  20.2MP APS-C CMOS Sensor and Dual DIGIC 6 Image Processors
  • Featuring a 20.2-megapixel APS-C CMOS sensor and Dual DIGIC 6 image processors, the 7D Mark II is capable of producing high-resolution, well-detailed still imagery and full HD 1080p video with notable sensitivity and minimal noise. A native ISO range of 100-16000, which can further be expanded to ISO 51200, is well-suited to working in difficult lighting conditions and the processing power of the DIGIC 6 processors also contributes to enhanced low-light quality with smooth color and tonal gradations and corrected optical aberrations.

    The dual processor design further benefits the imaging system through the addition of speed, which avails 10 fps continuous shooting for over 1000 JPEGs, 31 RAW, or 19 RAW+JPEG files, along with a top shutter speed of 1/8000 sec. and a top flash sync speed of 1/250 sec. Additionally, a shutter lag time of 0.055 sec. and a start-up time of just 0.1 sec. help keep the camera ready to perform when desired.
  65-Point All Cross-Type AF System
  • When shooting with the optical viewfinder, a 65-point all cross-type autofocus system is used to provide wide frame coverage for acquiring focus accurately and quickly. The center point of this cluster is a high-precision dual cross-type sensor that benefits working with f/2.8, or faster, lenses and supports focusing down to -3 EV to enable working in low-light conditions. These focus points are configurable and allow homing in on specific elements within the frame to focus on, or, alternatively, all can be used to provide coverage across the frame.
  Dual Pixel CMOS AF
  • Dual Pixel CMOS AF is a refined live view focusing technology that works to provide incredibly quick and precise autofocusing abilities that function in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across nearly 80% of the frame to help reduce focus hunting for faster, more direct control of focus placement. Dual Pixel CMOS AF is utilized during live view applications, for either still or video shooting.

    When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, focusing is smooth and natural when changing from different subjects or different distances within the scene. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  EOS HD Video
  • Full HD 1080p video recording is supported in multiple frame rates, up to 60 fps, in both the MOV and MP4 file formats. Additionally, uncompressed video can be recorded to an optional external recorded via the HDMI output. In-camera video is recorded using the high quality H.264/MPEG-4 AVC codec and manual exposure control is supported for greater refinement over the look and feel of recordings. Video clips are automatically partitioned after the file size has reached 4GB and both IPB and All i-frame compressions are available for use depending on editing and output preferences.

    When recording video, customizable Movie Servo AF can be utilized to adjust the focusing location, speed, and tracking intervals for fluid and smooth AF quality. Support is also available for STM lenses, which deliver exceptionally quiet and smooth focusing to benefit the overall quality of movies.

    In-camera audio is recorded using the Linear PCM format for MOV files, or the AAC format for MP4 files, and support is available for utilizing an optional external microphone during recording. Additionally, a headphone input is also available for real-time audio monitoring.
  Body Design
  • Featuring a durable magnesium alloy body with a shutter tested to 200,000 cycles, along with enhanced mirror and shutter drive mechanisms, this rugged camera is also sealed to resist dust and moisture for use in inclement conditions. On the rear of the camera is a bright, large 3.0" 1.04m-dot LCD screen that can be used for live view monitoring, image review, and menu navigation. It features a smudge-resistant and anti-reflective Clear View II coating to better enable viewing in bright lighting conditions. Alternatively, for eye-level finding, an optical Intelligent Viewfinder II is incorporated into the design and provides 100% frame coverage, for greater composition accuracy, and an overlay display to highlight pertinent shooting settings, such as a digital level, exposure information, and other camera functions. The body design also incorporates a dual memory card slot that accepts one CompactFlash card and one SD/SDHC/SDXC card to extend file saving capabilities by permitting overflow recording or in-camera duplicating. The camera also features a range of customizable controls that can be configured to adjust a range of settings based on your personal preference.
  Scene Detection System and Exposure Metering
  • For enhanced precision in regard to exposure metering, an iSA (Intelligent Scene Analysis) system employs an independent 150,000-pixel RGB metering sensor, which benefits the iTR AF (Intelligent Tracking and Recognition) system, for consistent, precise subject tracking and exposure metering capabilities. These systems also incorporated dedicated tracking algorithms designed to recognize faces and colors, too, to support both exposure metering and autofocus functions.
  Other Camera Features
  • • A built-in intervalometer permits the creation of time lapse imagery and supports recording 1-99 consecutive frames in pre-selected intervals.
    • The bulb shutter speed setting enables you to keep the shutter open as long as desired for an expanded range of creative exposure capabilities.
    • An integrated GPS Receiver automatically records location data with each exposure, including longitude and latitude, elevation, and UTC time as EXIF data, and also provides a digital compass. Movement can also be tracked at set intervals to showcase your routes taken during shooting.
    • Advanced mirror vibration control technology supports the 7D Mark II's exceptional continuous shooting speeds and helps to maintain consistent results during shooting bursts.
    • A flicker detection system can automatically warn you, in the viewfinder, when a flickering light source has been detected. The effects of these light sources can be compensated for using the Anti-Flicker Shooting function, which will automatically record images only during instances of peak light volume. This system is especially useful for reducing inconsistent exposure or color results, which are prevalent when continuously shooting in difficult lighting conditions.
    • In-camera correction for a variety of lens aberrations is possible, including the ability to control peripheral illumination, chromatic aberration, and other distortions. When working in live view, the Image Simulation Function can be utilized to monitor the effects of distortion correction for fine-tuning your results.
    • A USB 3.0 terminal is available for expedited transfer speeds between the camera and a computer or the optional WFT-E7 (Version 2) for Wi-Fi connectivity.
    • Picture Style modes allow you to set predefined looks to imagery in-camera and include Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, and up to three User Defined settings.
    • Language support: English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, and Japanese.
  UPC: 013803285246

• BASE 7D2 Underwater Sport Housing for Canon EOS 7D Mark II fuyzbfwdsfvabedv
• Camera Plate
• Cable Release
• Pistol Grip Trigger
• P-Series P-65 Flat Port for Short to Medium Length Prime Lenses
• Limited 3-Month Warranty

• Canon - EOS 7D Mark II DSLR Camera Body with W-E1 Wi-Fi Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AquaTech BASE 7D2 Underwater Sport Housing for Canon EOS 7D Mark II

  Depth Rating	33' / 10 m
  Control Type	2-Button Pistol Grip Trigger
  Controls	Focus and shutter via pistol grip Zoom control with optional zoom gears for applicable lenses Rest of controls must be preset or set to Auto mode before camera is put into housing
  Material of Construction	Body: Polyurethane Clips/Latches/Other Parts: Stainless steel, anodized aluminum, high-strength plastic
  Lens Port	Compatible with AquaTech's full range of interchangeable P series ports Includes P-65 Lens Port, which fits array of lenses with max length of 2.5" / 63 mm P-65: Flat acrylic front element with scratch/abrasion-resistant coating, acrylic body, and screw-on mount
  Buoyancy	Positive or nearly neutral Varies based on choice of lens and port
  External Strobe Connector	Optional bulkhead sync connector, included with optional AquaTech flash housing
  Moisture Alarm	None
  Mounting	Standard threaded tripod mount
  Dimensions	Approx. 7.5 x 6.7 x 5.0" / 19 x 17.1 x 12.7 cm
  Weight	Approx. 3.5 lb / 1.6 kg (housing only)

  Box Dimensions (LxWxH)	13.2 x 10.3 x 6.2"

• Canon EOS 7D Mark II DSLR Camera Body with W-E1 Wi-Fi Adapter

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 20.9 Megapixel Effective: 20.2 Megapixel
  Maximum Resolution	5472 x 3648
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	22.4 x 15 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 16000 (Extended: 100 to 51200)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight
  Continuous Shooting	Up to 10 fps
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 Full HD (1920 x 1080) at 23.976p/29.97p/59.94p HD (1280 x 720) at 29.97p/59.94p SD (640 x 480) at 29.97p MOV Full HD (1920 x 1080) at 23.976p/29.97p/59.94p HD (1280 x 720) at 59.94p SD (640 x 480) at 29.97p
  External Recording Modes	Full HD (1920 x 1080) at 59.94p
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) Up to 29 Minutes, 59 Seconds for HD (1280 x 720) Up to 29 Minutes, 59 Seconds for SD (640 x 480)
  Audio Recording	Built-In Microphone External Microphone Input
  Audio File Format	AAC, Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 65 (65 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	22 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	LCD

  Built-in Flash	Yes
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 3.0
  Wireless	Wi-Fi
  GPS	Yes

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E6N Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.9 x 4.4 x 3.1" / 148.6 x 112.4 x 78.2 mm
  Weight	2.00 lb / 910 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	9.9 x 7.2 x 5.8"
