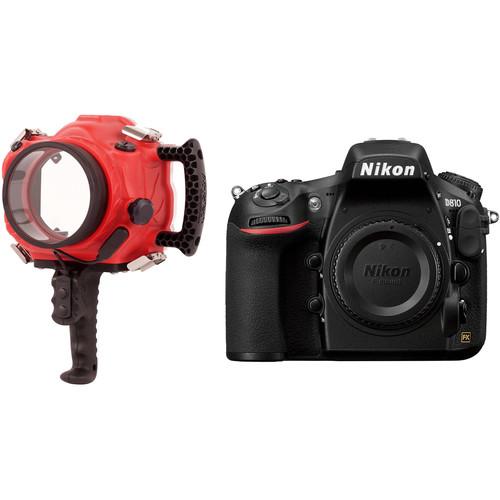

User Manual for AquaTech Base D810 Underwater Sport Housing and Nikon D810 DSLR Camera Body Kit

• Product category: Still Cameras & Housings AquaTech
• Brand: AquaTech
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AquaTech Still Cameras & Housings

Product description

• AquaTech BASE D810 Underwater Sport Housing for Nikon D810 or D800
  • AquaTech Pistol Grip For Sport Housing
  Capture photos and video over, under, or near the water's surface with your Nikon D810 or D800 DSLR camera in this AquaTech BASE D810 Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.

  The included 2-Button Pistol Grip Trigger enables dedicated focus control and shutter operation. Zoom control is enabled with optional zoom gears for applicable lenses. The remaining camera functions must be preset or automatic, as there are no controls for them on this entry-level housing. For those looking to get started in underwater photography or video recording and seeking a simple solution, this housing fits the bill.

  An optional bulkhead sync connector, supplied with the optional AquaTech Strike flash housings, enables the BASE D810 to work with external strobes and Pocket Wizards. Housings are available for various flash units.

  The BASE D810 has an ergonomic design with a side grip handle. Its body is crafted from durable polyurethane, while smaller parts are made from stainless steel and anodized aluminum for resistance to corrosion. The O-ring and quick-release clips with safety latches ensure a watertight seal. Additionally, a standard threaded mounting point at the bottom of the housing enables connection to an optional tripod or tray.

  The housing is compatible with AquaTech's full range of interchangeable P series ports for various lenses, and includes the P-65 Lens Port, which accommodates an array of lenses with a maximum length of 63mm. For full compatibility information, see Port Chart.
  Waterproofing
  • • Depth rating of 33'
    • Designed for shallow water and surface use, housing shouldn't be operated at depths beyond 15' for longer than five minutes
    • O-ring and quick-release clips with safety latches ensure a watertight seal
  Controls, Handling and Operation
  • • Supplied 2-Button Pistol Grip Trigger provides dedicated focus control and shutter operation independently, allowing you to capture blur-free images with ease
    • Zoom control enabled with optional zoom gears for applicable lenses
    • Remaining camera functions must be preset or automatic, as there are no controls for them on this entry-level housing
    • Ergonomic design with side grip for optimal handling
    • Camera Plate attaches to bottom of camera and slides into mount inside housing
  Construction Details
  • • Body made from durable polyurethane
    • Smaller parts constructed from stainless steel and corrosion-resistant anodized aluminum, as well as high-strength plastic
  Lens Port System
  • • Accepts AquaTech's full range of interchangeable P series ports for various lenses
    • Includes P-65 Lens Port which accommodates an array of lenses with a maximum length of 63mm, including the 24mm f/2.8, 28mm f/2.8, 35mm f/1.8 G, 35mm f/2, 50mm f/1.4, and 50mm f/1.8
    • For full compatibility information, see Port Chart linked above
    • P-65 port: Flat acrylic front element with scratch/abrasion-resistant coating, acrylic body, and screw-on mount
  External Strobe Use
  • • Optional bulkhead sync connector, included with optional AquaTech Strike flash housings, permits BASE D810 to work with external strobes and Pocket Wizards
  Mounting
  • • Standard threaded mounting point on bottom of housing enables connection to optional tripod or tray
  UPC: 810778011180
• Nikon D810 DSLR Camera (Body Only)
  • AquaTech Pistol Grip For Sport Housing
  The Nikon D810 DSLR Camera takes its place as the high resolution option in the Nikon DSLR lineup. It features a 36.3MP FX-format CMOS sensor without an Optical Low Pass Filter for particularly sharp and detailed still imaging. With the addition of the EXPEED 4 Image Processor, performance speed is increased compared to the EXPEED 3 and noise is effectively reduced throughout the ISO range. Continuous shooting speed in FX format is 5 fps and in DX format hits a maximum of 7 fps. In addition, the Full HD video capabilities of the D810 have been upgraded to include 1080p capture at 24, 30 and 60 fps. Also, the improved efficiency of the processor enables up to 1200 shots on one battery charge and 40 minutes of video recording. Low light performance has been upgraded thanks to a wide native ISO sensitivity range that runs from 64 to 12,800 and can be expanded from 32 to 51,200. The advanced Multi-CAM 3500FX autofocus sensor offers 51 AF points with 15 cross-type sensors and Group Area AF enables five AF sensors to be used as one group. This is useful when shooting subjects that cannot be tracked easily by one AF point due to lighting conditions. As a camera optimized for video capture, the D810 features recording in both FX and DX formats including simultaneous recording to memory cards and an external recorder as well as recording 60p output to an external recorder. The ISO range for video has also been expanded to run from ISO 64 to 12,800 and expand to 51,200. Automatic ISO adjustment in manual mode enables smooth exposure transitions. A built-in stereo microphone is supported as are jacks for an external mic and headphones. A selectable audio frequency range provides exacting control over sound recording.A 3.2" LCD with 1,229K-dot resolution provides playback viewing and live view, and improved coatings on the optical viewfinder components provide brighter images and more accurate colors. Live View function now includes split screen display zoom for stills, and zebra highlighting display in video mode. Full aperture metering during live view for still shooting is supported.Interval and time-lapse shooting feature exposure smoothing, and the maximum number of images per sequence is now 9,999. Improved Picture Control settings now offer Flat Picture Control to enable maximum dynamic range and color adjustments in post-production.The D810 utilizes dual media slots for both Compact Flash and SD cards, and it provides a built-in flash with i-TTL metering as well as a hot shoe mount. A larger grip enables comfortable control for extended shooting, and a secondary "i" button has been added to back panel for faster access to important settings.
  36.3MP FX-Format CMOS Sensor without an Optical Low Pass Filter
  • Nikon's highest resolution sensor is housed in the D810, and by omitting the Optical Low Pass Filter, the sensor provides superior sharpness and detail. The sensor boasts fast channel readout, wide dynamic range, rich tones and improved imaging at high sensitivities.
  EXPEED 4 Image Processor
  • The EXPEED 4 processor provides 30% faster performance over the EXPEED 3 as well improved low noise imaging throughout the ISO range. Support for 1080p video capture at 60 fps is featured and the processor's increased efficiency enables up to 1200 still shots and 40 minutes of video recording per charge.
  Native ISO Range of 64 to 12,800
  • The improved ISO range compared to the D800 enables more effective low light imaging, and the ISO can be expanded from 32 to 51,200.
  Advanced Multi-CAM 3500FX Auto Focus Sensor
  • Versatile AF Modes of 9, 21, and 51 points and 3D tracking enable fast, precise auto focus control. AF sensitivity down to -2 EV is effective in low light and 15 cross-type sensors are compatible with AF NIKKOR lenses with open aperture of f/5.6 or faster. Eleven central focus points work with an open aperture of f/8. Improvements include upgraded 'lock-on', expanded 'store by orientation,' and more options for AF mode restrictions.
  Group Area AF
  • Group Area AF enhances subject detection and tracking in challenging lighting conditions or when shooting comparatively small subjects against a high-contrast background by grouping and monitoring 5 individual AF points. The 5-point AF area can be shifted across the 51-point array as your composition changes.
  RAW Size S
  • Accelerate your workflow with Nikon's RAW Size S file format which delivers 12-bit uncompressed Nikon NEF files that enable faster image transfer and smoother post-production.
  Continuous Shooting
  • In FX mode, the D810 can shoot up to 5 fps, and in DX mode it can capture up to 7 fps when utilizing the MB-D12 battery grip with AA batteries.
  Reduced Vibration for Sharper Imaging
  • The D810's shutter/mirror box architecture and electronic front-curtain feature improve overall image clarity. The shutter/mirror mechanism reduces image shake for a steady viewfinder image with minimal blackout during high-speed shooting. When activated, the electronic front-curtain shutter reduces the risk of blur in even subtle details by minimizing internal vibrations during exposure.
  Quiet Continuous Mode
  • A redesigned Sequencer/Balancer Mechanism enables Quiet Continuous Mode for near silent sequential shooting.
  Picture Control
  • In addition to standard, neutral, vivid, monochrome, portrait and landscape, image control options have been expanded to include Flat Picture Control which is geared for shooting in RAW modes and for video capture when adjustments will be made in post-production. Also, a clarity option has been added to all Picture Control settings and better control over Picture Control is enabled by fine 0.25 steps.
  Full HD 1080p Video Capture in 60/30/24 fps
  • Video recording is supported in both FX and DX formats with an ISO range from 64 to 12,800 and expandable to 51, 200. Simultaneous recording to memory cards and to an external recorder is now supported. Auto ISO adjustment is possible in manual mode for smooth exposure transitions. Nikon's 3D noise reduction reduces random noise, distortion, and flicker when filming at high sensitivities. Zebra mode on the camera monitor shows you exactly where highlights are. A built-in stereo microphone as well as jacks for external microphone and headphones are provided. You can fine-tune audio levels in isolation both before and during recording and select the sound range (wide/voice).
  3.2" LCD Monitor with 1,229k-dot Resolution
  • A high resolution LCD provides detailed playback viewing and live view capture with color balance and brightness control. A split screen display zoom for still shooting lets you compare two enlarged points in the image for sharpness and exposure.
  Optical Viewfinder
  • Improved coatings on the optical components render brighter and more accurate color, and the Organic EL information display makes it easier to make adjustments under bright/dim conditions.
  Interval Timer/Time-Lapse Shooting
  • Exposure smoothing is supported in time-lapse and interval shooting modes and the number of recordable images has been increased to 9,999.
  Flash
  • Both a built-in flash and hot shoe mount are supported with i-TTL metering, as is a flash sync terminal. The built-in flash offers commander mode for wireless control of up to two groups of off-camera flash units.
  CF and SD Card Slots
  • Two card slots are supported for versatile image storage and smoother workflow. One CF card slot for high-speed UDMA 7 cards, and one SD card slot for high-speed, high-capacity SDXC and UHS-I cards allow you to use one card as back-up or place still images on one card and video on the other or RAW on one and JPEG on the other.
  Wi-Fi with Optional Transmitter
  • The D810 offers wireless connectivity for image transfer to a computer or FTP server and for remote camera control using Nikon's Camera Control Pro 2 software via the optional WT-5A Wireless Transmitter in combination with the optional UT-1 Communications Unit. The WT-5 attaches to the UT-1 unit which mounts to the camera's accessory hot shoe.
  Form Factor
  • A deeper hand grip improves handling, and a secondary "i" button has been added for easier access to important settings. A durable magnesium alloy body with extensive weather and dust sealing ensure the D810 is moisture- and dust-resistant.
  UPC: 018208015429

• BASE D810 Underwater Sport Housing for Nikon D810 or D800 dqbbevdstcuqfsbbyruabeyvfecuurtcxs
• Camera Plate
• Cable Release
• Pistol Grip Trigger
• P-Series P-65 Flat Port for Short to Medium Length Prime Lenses
• Limited 3-Month Warranty

• Nikon - D810 DSLR Camera (Body Only)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AquaTech BASE D810 Underwater Sport Housing for Nikon D810 or D800

  Depth Rating	33' / 10 m
  Control Type	2-Button Pistol Grip Trigger
  Controls	Focus and shutter via pistol grip Zoom control with optional zoom gears for applicable lenses Rest of controls must be preset or set to Auto mode before camera is put into housing
  Material of Construction	Body: Polyurethane Clips/Latches/Other Parts: Stainless steel, anodized aluminum, high-strength plastic
  Lens Port	Compatible with AquaTech's full range of interchangeable P series ports Includes P-65 Lens Port, which fits array of lenses with max length of 2.5" / 63 mm P-65: Flat acrylic front element with scratch/abrasion-resistant coating, acrylic body, and screw-on mount
  Buoyancy	Positive or nearly neutral Varies based on choice of lens and port
  External Strobe Connector	Optional bulkhead sync connector, included with optional AquaTech flash housing
  Moisture Alarm	None
  Mounting	Standard threaded tripod mount
  Dimensions	Approx. 7.5 x 6.7 x 5.0" / 19 x 17.1 x 12.7 cm
  Weight	Approx. 3.5 lb / 1.6 kg (housing only)

  Box Dimensions (LxWxH)	13.2 x 10.3 x 6.1"

• Nikon D810 DSLR Camera (Body Only)

  Lens Mount	Nikon F
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 37.09 Megapixel Effective: 36.3 Megapixel
  Maximum Resolution	7360 x 4912
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	35.9 x 24 mm
  Image File Format	JPEG, RAW, TIFF
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 64 to 12800 (Extended: 32 to 51200)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	3D Color Matrix, Center-Weighted Average, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2, 1 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (Warm White), Fluorescent (White), Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 5 fps
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p HD (1280 x 720) at 50p/59.94p
  External Recording Modes	Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 20 Minutes for Full HD (1920 x 1080) at 50p/59.94p Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) at 23.976p/25p/29.97p Up to 29 Minutes, 59 Seconds for HD (1280 x 720) at 50p/59.94p
  Video Encoding	NTSC
  ISO Sensitivity	64 to 12800 (Extended: 51200)
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	51 (15 Cross-Type)
  Autofocus Sensitivity	-2 to +19 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	17 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.7x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,229,000 Dot
  Monitor Type	LCD

  Built-in Flash	Yes
  Flash Modes	Auto, First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	39' / 11.89 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2, 1 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe, PC Terminal, Wireless

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 3.0 Micro-B
  Wireless	Wi-Fi (Via Adapter)
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15 Rechargeable Lithium-Ion, 7.0 VDC, 1900 mAh
  Dimensions (W x H x D)	5.7 x 4.8 x 3.2" / 146.0 x 123.0 x 81.5 mm
  Weight	31.04 oz / 880 g

  Box Dimensions (LxWxH)	9.7 x 6.6 x 6.1"
