Product description AquaTech BASE Underwater Sport Housings for Dry DSLR and Mirrorless Cameras Read More vzrbxtrvrs - AquaTech Pistol Grip For Sport Housing

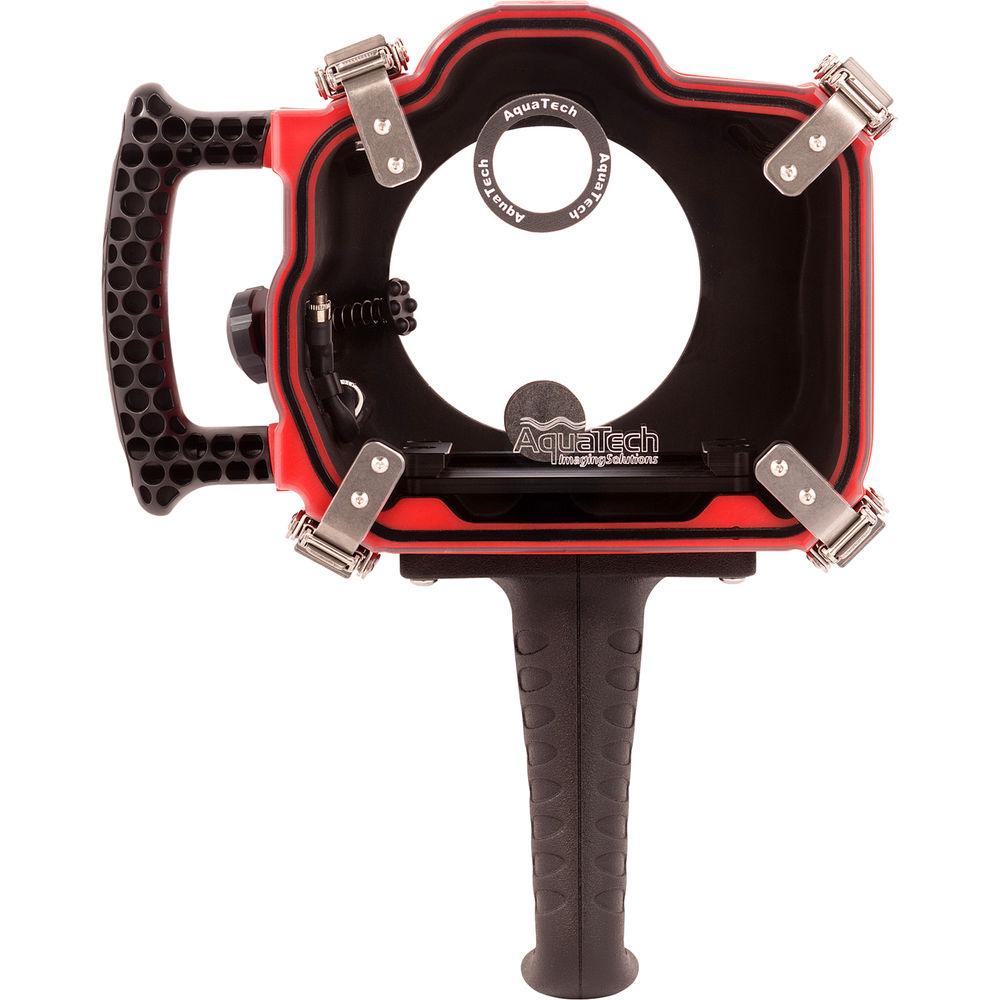

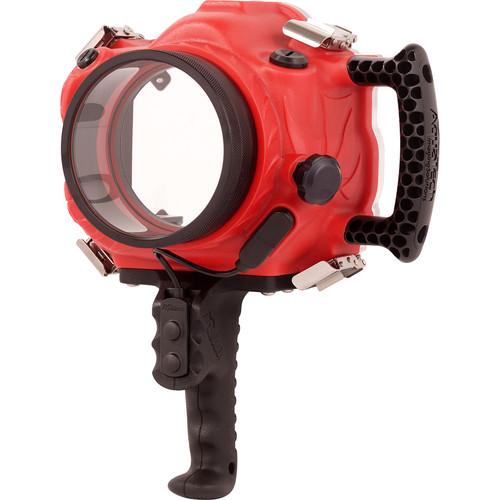

Capture photos and video over, under, or near the water's surface with your Nikon D810 or D800 DSLR camera in this AquaTech BASE D810 Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.
The included 2-Button Pistol Grip Trigger enables dedicated focus control and shutter operation. Zoom control is enabled with optional zoom gears for applicable lenses. The remaining camera functions must be preset or automatic, as there are no controls for them on this entry-level housing. For those looking to get started in underwater photography or video recording and seeking a simple solution, this housing fits the bill.
An optional bulkhead sync connector, supplied with the optional AquaTech Strike flash housings, enables the BASE D810 to work with external strobes and Pocket Wizards. Housings are available for various flash units.
The BASE D810 has an ergonomic design with a side grip handle. Its body is crafted from durable polyurethane, while smaller parts are made from stainless steel and anodized aluminum for resistance to corrosion. The O-ring and quick-release clips with safety latches ensure a watertight seal. Additionally, a standard threaded mounting point at the bottom of the housing enables connection to an optional tripod or tray.
The housing is compatible with AquaTech's full range of interchangeable P series ports for various lenses, and includes the P-65 Lens Port, which accommodates an array of lenses with a maximum length of 63mm. For full compatibility information, see Port Chartvzrbxtrvrs. - Waterproofing
-
- Depth rating of 33'
- Designed for shallow water and surface use, housing shouldn't be operated at depths beyond 15' for longer than five minutes
- O-ring and quick-release clips with safety latches ensure a watertight seal
- Controls, Handling and Operation
-
- Supplied 2-Button Pistol Grip Trigger provides dedicated focus control and shutter operation independently, allowing you to capture blur-free images with ease
- Zoom control enabled with optional zoom gears for applicable lenses
- Remaining camera functions must be preset or automatic, as there are no controls for them on this entry-level housing
- Ergonomic design with side grip for optimal handling
- Camera Plate attaches to bottom of camera and slides into mount inside housing
- Construction Details
-
- Body made from durable polyurethane
- Smaller parts constructed from stainless steel and corrosion-resistant anodized aluminum, as well as high-strength plastic
- Lens Port System
-
- Accepts AquaTech's full range of interchangeable P series ports for various lenses
- Includes P-65 Lens Port which accommodates an array of lenses with a maximum length of 63mm, including the 24mm f/2.8, 28mm f/2.8, 35mm f/1.8 G, 35mm f/2, 50mm f/1.4, and 50mm f/1.8
- For full compatibility information, see Port Chart linked above
- P-65 port: Flat acrylic front element with scratch/abrasion-resistant coating, acrylic body, and screw-on mount
- External Strobe Use
-
- Optional bulkhead sync connector, included with optional AquaTech Strike flash housings, permits BASE D810 to work with external strobes and Pocket Wizards
- Mounting
-
- Standard threaded mounting point on bottom of housing enables connection to optional tripod or tray

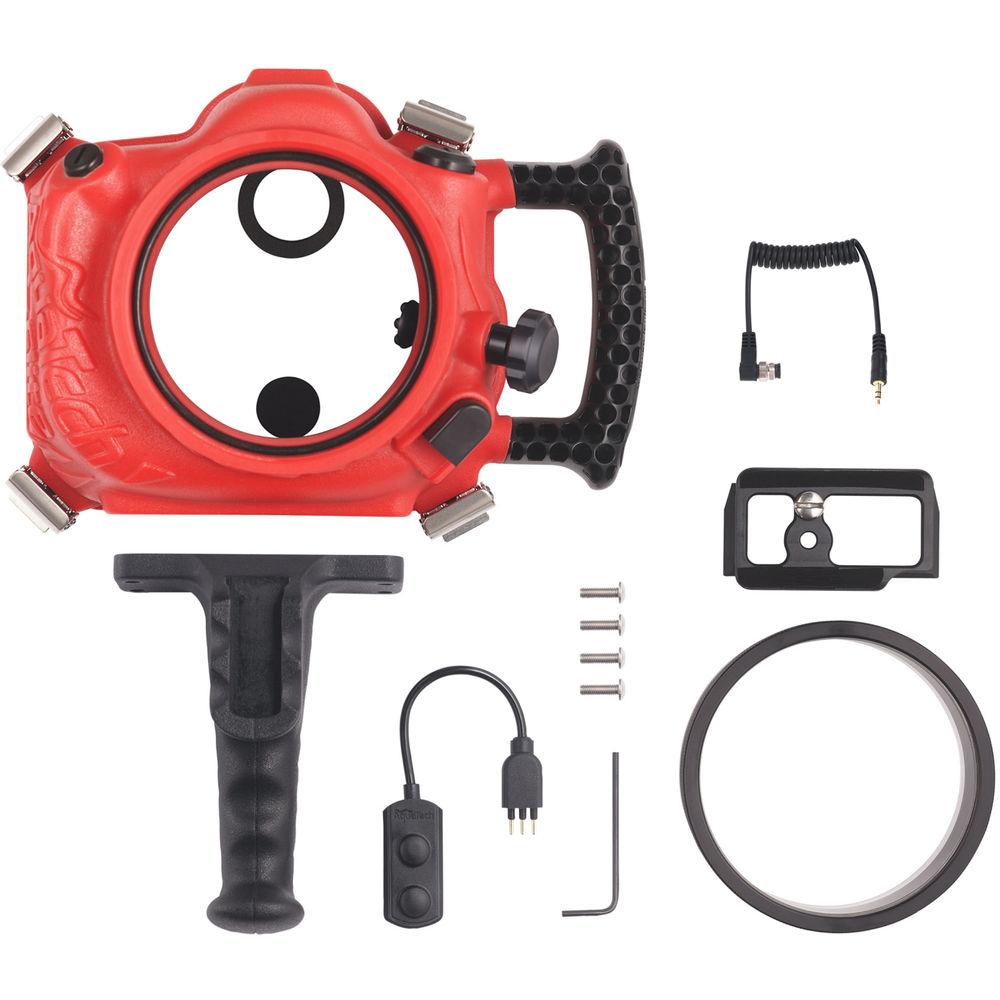

UPC: 810778011180 In the Box AquaTech BASE D810 Underwater Sport Housing for Nikon D810 or D800 Camera Plate Cable Release Pistol Grip Trigger P-Series P-65 Flat Port for Short to Medium Length Prime Lenses Limited 3-Month Warranty Guides & Manuals vzrbxtrvrs Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech BASE D810 Underwater Sport Housing for Nikon D810 or D800 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech 10118 Specs | Depth Rating | 33' / 10 m | | Control Type | 2-Button Pistol Grip Trigger | | Controls | Focus and shutter via pistol grip
Zoom control with optional zoom gears for applicable lenses
Rest of controls must be preset or set to Auto mode before camera is put into housing | | Material of Construction | Body: Polyurethane
Clips/Latches/Other Parts: Stainless steel, anodized aluminum, high-strength plastic | | Lens Port | Compatible with AquaTech's full range of interchangeable P series ports
Includes P-65 Lens Port, which fits array of lenses with max length of 2.5" / 63 mm
P-65: Flat acrylic front element with scratch/abrasion-resistant coating, acrylic body, and screw-on mount | | Buoyancy | Positive or nearly neutral
Varies based on choice of lens and port | | External Strobe Connector | Optional bulkhead sync connector, included with optional AquaTech flash housing | | Moisture Alarm | None | | Mounting | Standard threaded tripod mount | | Dimensions | Approx. 7.5 x 6.7 x 5.0" / 19 x 17.1 x 12.7 cm | | Weight | Approx. 3.5 lb / 1.6 kg (housing only) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 13.2 x 10.3 x 6.1" |
