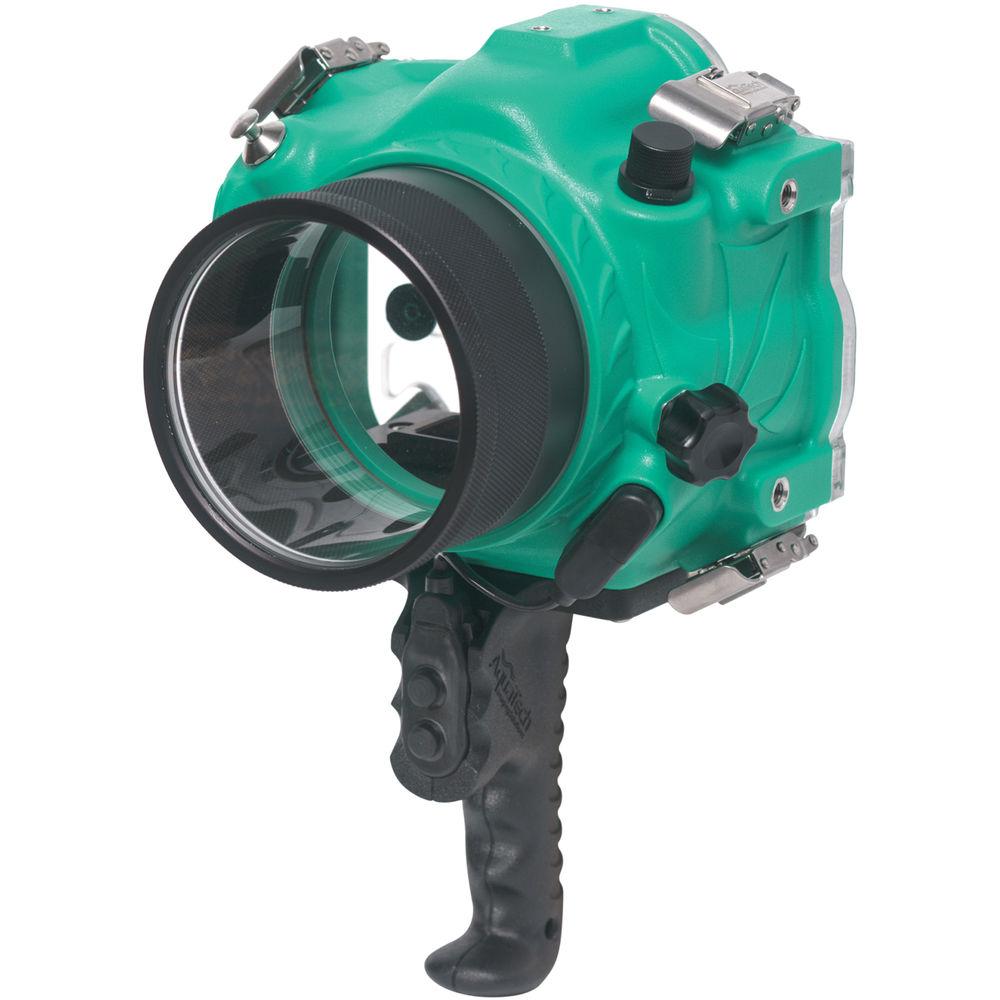

Product description Capture photos and video over, under, or near the water's surface with your Canon 70D or 80D DSLR in this AquaTech Compac 70D Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.
The Compac 70D's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and side grip offer optimal handling and comfort. This housing also comes with a Pistol Grip Trigger for remote firing capability and focus control, allowing you to capture blur-free images with ease. The trigger includes a waterproof shutter release switch and cable release as well as all mounting hardware. An optional 27" Pole Shutter Extension kit can be attached to the pistol grip to offer extra reach when shooting at certain angles.
The housing's polyurethane body has reinforced quick-release clips and tactile controls made of stainless steel, aluminum, and high strength plastics. All of the aluminum parts have been anodized for resistance to corrosion and other wear and tear. The O-rings that secure the housing's inner controls are greased during assembly and a small tube of O-ring grease is included for continued maintenance of the metal shafts of the housing's push controls.
An optional flash bulkhead sync connector, supplied with the flash housing, enables the Compac 70D to work with optional accessories such as external flash units and pocket wizards. A threaded 3/8"-16 mounting point at the bottom of the housing enables connection to an optional tripod or tray. The Compac 70D sport housing ships without a required lens port, and accepts a series of screw-mounted ports for for a range of lenses. For complete compatibility information, see this Port Chart. - Waterproofing
-
- Depth rating of 33'
- Designed for shallow water and surface use, housing shouldn't be operated at depths beyond 15' for longer than five minutes.
- Controls, Handling and Operation
-
- Provides access to the following camera functions via mechanical, push-button controls on housing backplate: Playback, Video / Stills control, Rear Main dial, Shutter
- Ergonomic design with side grip for optimum handling.
- Camera Plate bolts to the bottom of camera and slides into mount inside housing.
- Included pistol grip or optional 27" pole shutter extension kit enables remote firing capability and focus control, allowing you to capture blur-free images with ease. Pole also offers extra reach when shooting at certain angles. Additionally, this housing is compatible with optional strobes or PocketWizards in their own designated housings.
- Construction Details
-
- Made from durable polyurethane.
- Controls made from stainless steel, anodized aluminum and high strength plastic.
- Four quick release clips with safety latches.
- Main and front compression O-rings seal the main back plate at the rear and the lens port on the front below the threads.
- Lens Port System
-
- Ships without a required lens port.
- Various interchangeable ports are available for wide-angle, macro, and zoom lenses.
- For full compatibility, see Port Chart linked above.
- External Strobe Use
-
- Optional flash bulkhead sync connector enables attachment of optional external strobes. Flash bulkhead included with purchase of AquaTech's flash housing.
- Included pistol grip or optional pole shutter release enables remote firing capability and is compatible with optional strobes or PocketWizards in their own designated housings.
- Mounting
-
- One 3/8"-16 threaded tripod mounting point.

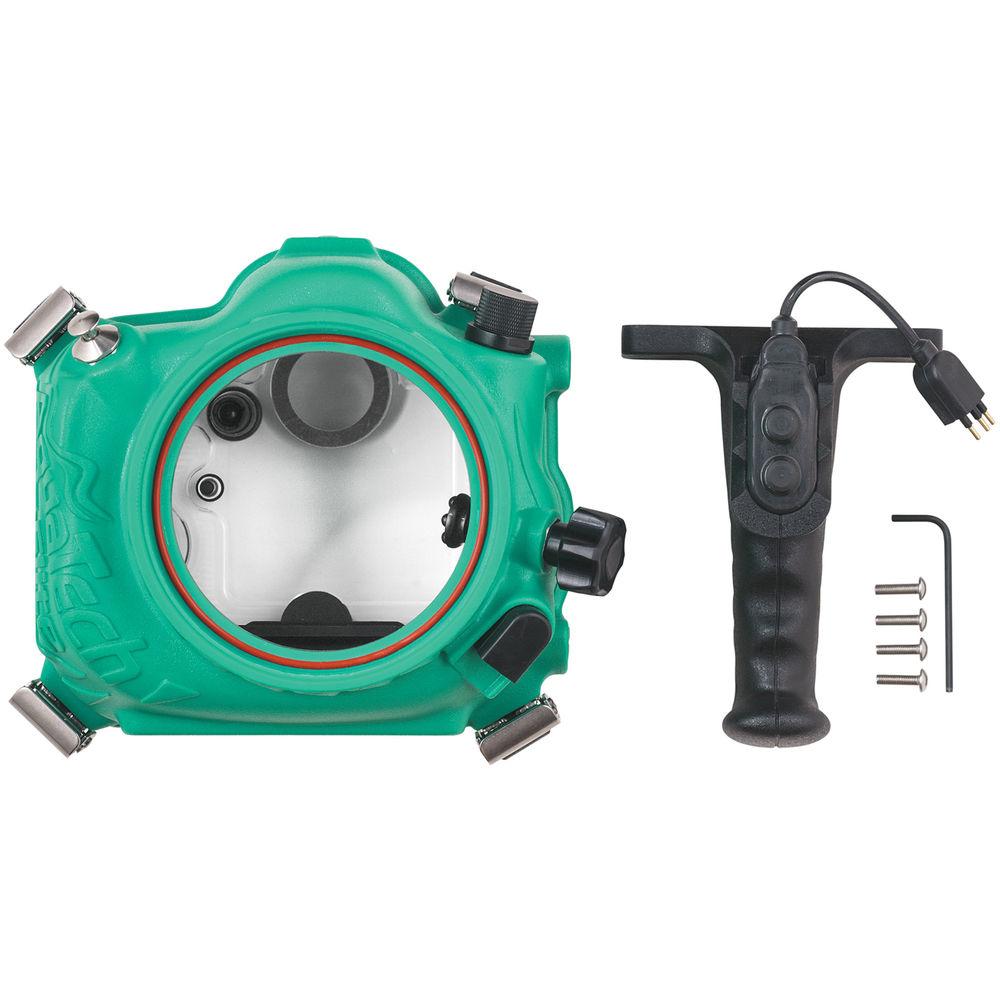

UPC: 810778010077 In the Box AquaTech Compac 70D Underwater Sport Housing for Canon 70D or 80D DSLR - Back Plate
- Pistol Grip Trigger
- Camera Plate
- Tool Kit
- Tube of Grease
- Limited 3-Month Warranty
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech Compac 70D Underwater Sport Housing for Canon 70D or 80D DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech Compac 70D Specs | Depth Rating | 33' / 10 m | | Control Type | Mechanical.
Includes pistol grip trigger for remote shutter / focus control | | Controls | Housing provides access to these camera functions: Playback, Video / Stills control, Rear Main dial, Shutter. | | Material of Construction | Polyurethane body, stainless steel and hard anodized aluminum controls. | | Lens Port | Required and sold separately. Lens Port Mount Diameter: 4.75" / 120 mm. Various interchangeable, screw-mount flat and dome ports are available for wide-angle, macro and zoom lenses. For compatibility details, see port chart linked in overview. | | Buoyancy | Varies depending on choice of lens and port. | | External Strobe Connector | The Compac 70D can accommodate an optional flash bulkhead, which is included with the purchase of AquaTech's flash housing. | | Viewfinder | None | | Moisture Alarm | None | | Mounting | One 3/8"-16 threaded tripod mounting point. | | Dimensions (W x H x D) | 7.5 x 6.75 x 5.0" / 19.0 x 17.1 x 12.7 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 10.8 x 8.5 x 6.2" |
