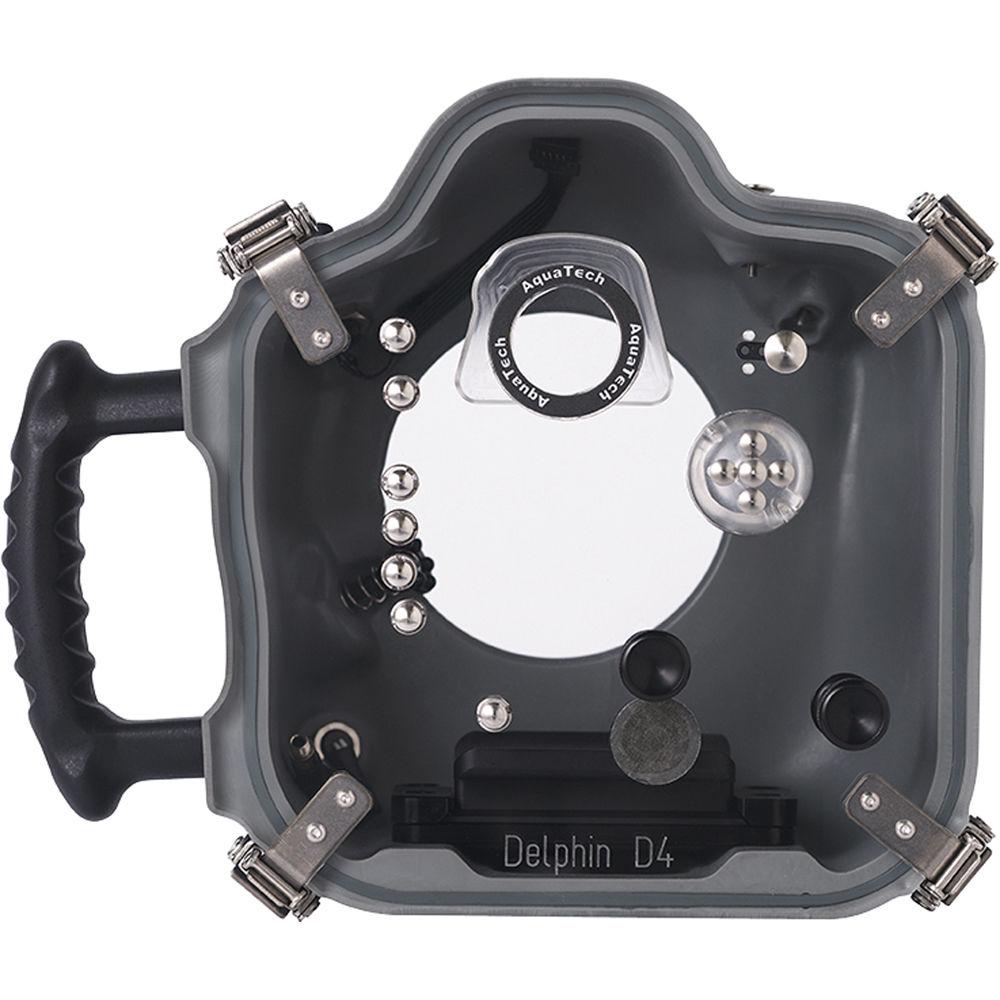

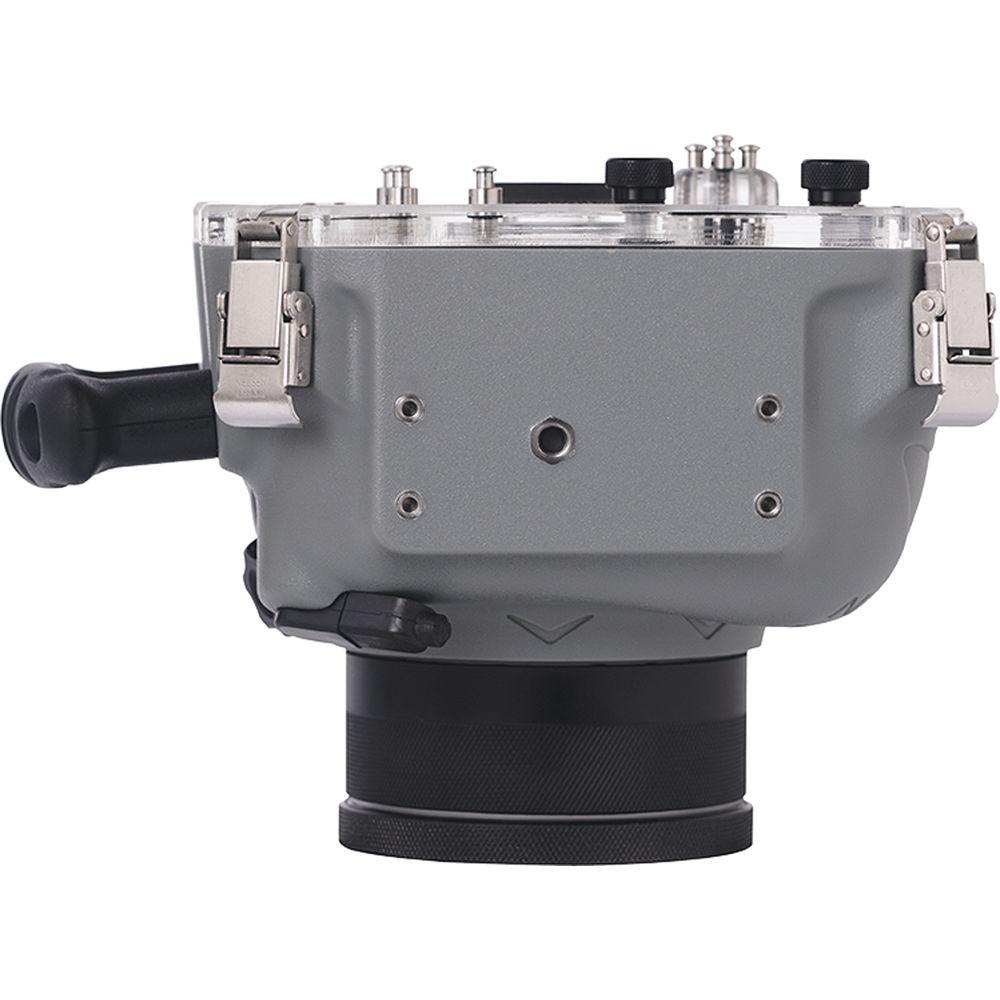

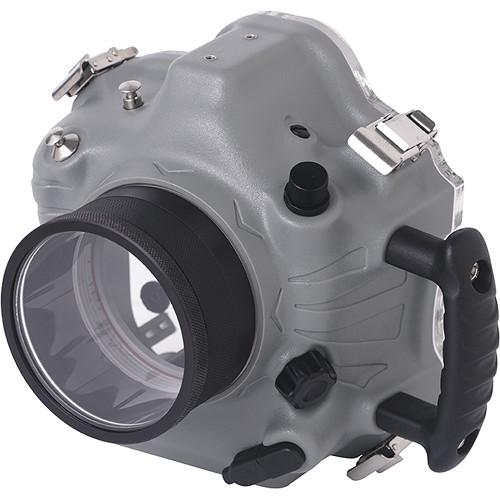

User Manual for AquaTech Delphin D4 Underwater Sport Housing for Nikon D4 or D4s DSLR Click to enlarge the picture
Contents of the user manual for the AquaTech Delphin D4 Underwater Sport Housing
- Product category: Still Cameras & Housings AquaTech
- Brand: AquaTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AquaTech Still Cameras & Housings
 |
User manual for the AquaTech Delphin D4 Underwater Sport Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AquaTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AquaTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AquaTech product will considerably shorten its lifespan!
|
Product description Capture photos and video over, under, or near the water's surface with your Nikon D4 or D4s DSLR in this AquaTech Delphin D4 Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.
The Delphin D4's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and side grip offer optimal handling and comfort. An optional Pistol Grip Trigger and 27" Pole Shutter Extension kit offers remote firing capability and focus control, allowing you to capture blur-free images with ease. The pole also affords extra reach when shooting at certain angles.
The housing's polyurethane body has reinforced quick-release clips and tactile controls made of stainless steel, aluminum, and high strength plastics. All of the aluminum parts have been anodized for resistance to corrosion and other wear and tear. The O-rings that secure the housing's inner controls are greased during assembly and a small tube of O-ring grease is included for continued maintenance of the metal shafts of the housing's push controls.
An optional flash bulkhead sync connector, supplied with the flash housing, enables the Delphin D4 to work with optional accessories such as external flash units and pocket wizards. A threaded 3/8"-16 mounting point at the bottom of the housing enables connection to an optional tripod or tray. The Delphin D4 sport housing ships without a required lens port, and accepts a series of screw-mounted ports for for a wide range of lenses. For complete compatibility information, see this Port Chart. - Waterproofing
-
- Depth rating of 33'
- Designed for shallow water and surface use, housing shouldn't be operated at depths beyond 15' for longer than five minutes.
- Controls, Handling and Operation
-
- Provides access to the following camera functions via mechanical, push-button controls on housing backplate: Menu, Playback, Zoom in, Zoom out, AF-On, Info, ISO, OK, Live View, Video / Stills, Mode, Shutter, Multi control pad (up, down, left & right), Rear control dial
- Ergonomic design with side grip for optimum handling.
- Camera Plate bolts to the bottom of camera and slides into mount inside housing.
- Optional pistol grip or optional 27" pole shutter extension kit enables remote firing capability and focus control, allowing you to capture blur-free images with ease. Pole also offers extra reach when shooting at certain angles. Additionally, this housing is compatible with optional strobes or PocketWizards in their own designated housings.
- Construction Details
-
- Made from durable polyurethane.
- Controls made from stainless steel, anodized aluminum and high strength plastic.
- Four quick release clips with safety latches.
- Main and front compression O-rings seal the main back plate at the rear and the lens port on the front below the threads.
- Lens Port System
-
- Ships without a required lens port.
- Various interchangeable ports are available for wide-angle, macro, and zoom lenses.
- For full compatibility, see Port Chart linked above.
- External Strobe Use
-
- Optional flash bulkhead sync connector enables attachment of optional external strobes. Flash bulkhead included with purchase of AquaTech's flash housing.
- Optional pistol grip or pole shutter release enables remote firing capability and is compatible with optional strobes or PocketWizards in their own designated housings.
- Mounting
-
- 3/8"-16 threaded tripod mounting point.
UPC: 810778003048 In the Box AquaTech Delphin D4 Underwater Sport Housing for Nikon D4 or D4s DSLR - Back Plate
- Slide Plate
- Tool Kit
- Tube of Grease
- Limited 3-Month Warranty
Reference Chart PDF 154.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech Delphin D4 Underwater Sport Housing for Nikon D4 or D4s DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech Delphin D4 Specs | Depth Rating | 33' / 10 m | | Control Type | Mechanical. | | Controls | Housing provides access to these camera functions: Menu, Playback, Zoom in, Zoom out, AF-On, Info, ISO, OK, Live View, Video / Stills, Mode, Shutter, Multi control pad (up, down, left & right), Rear control dial. | | Material of Construction | Polyurethane body, stainless steel and hard anodized aluminum controls. | | Lens Port | Required and sold separately. Lens Port Mount Diameter: 4.75" / 120 mm. Various interchangeable, screw-mount flat and dome ports are available for wide-angle, macro and zoom lenses. For compatibility details, see port chart linked in overview. | | Buoyancy | Varies depending on choice of lens and port. | | External Strobe Connector | The Delphin D4 can accommodate an optional flash bulkhead, which is included with the purchase of AquaTech's flash housing. | | Viewfinder | None | | Moisture Alarm | None | | Mounting | 3/8"-16 threaded tripod mounting point. | | Dimensions (W x H x D) | 8.5 x 8.5 x 5.0" / 21.6 x 21.6 x 12.7 cm | | Weight | 4.1 lb / 1.8 kg | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 13.3 x 10.4 x 6.2" |
