User Manual for AquaTech Delphin D5 Water Housing for Nikon D5 Click to enlarge the picture
Contents of the user manual for the AquaTech Delphin D5 Water Housing for
- Product category: Still Cameras & Housings AquaTech
- Brand: AquaTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AquaTech Still Cameras & Housings
 |
User manual for the AquaTech Delphin D5 Water Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AquaTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AquaTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AquaTech product will considerably shorten its lifespan!
|

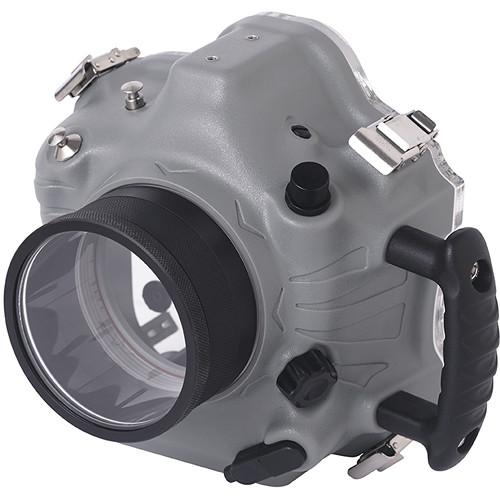

Product description Capture photos and video over, under, on, or near the water's surface with your Nikon D5 DSLR camera in AquaTech's Delphin D5 Water Housing. Featuring a depth rating of 33', it is designed for shallow water and surface use and shouldn't be operated at depths beyond 15' for longer than 5 min.
The Delphin's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and side grip afford optimal handling and comfort. An optional Pistol Grip Trigger and 27" Pole Shutter Extension kit offer the ability to adjust focus and capture images with your hands off the housing, allowing for sharp, blur-free images. The pole enables remote firing and also affords extra reach when shooting at certain angles.
The housing's polyurethane body has reinforced quick-release clips and tactile controls made of stainless steel, aluminum, and high strength plastics. All of the aluminum parts have been anodized for resistance to corrosion and other wear and tear.
An optional flash bulkhead sync connector, supplied with the AquaTech flash housings, enables the Delphin D5 to work with optional accessories such as external flash units and pocket wizards. A threaded 3/8"-16 mounting point at the bottom of the Delphin enables connection to an optional tripod or tray. This enclosure ships without a required lens port, and accepts a series of screw-mounted ports for a wide range of lenses. For complete compatibility information, see the Port Chart. - Waterproofing
-
- Depth Rating: 33'
- Designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than 5 min
- Controls, Handling and Operation
-
- Tactile, mechanical push-button and knob/dial controls provide easy access to important camera functions, including menu, playback, zoom in, zoom out, AF-On, info, ISO, OK, live view, video / stills, shutter, multi-control pad (up, down, left & right), and rear control dial
- Ergonomic design and side grip afford optimal handling and comfort
- Camera Plate bolts to bottom of camera and slides into mount inside housing
- Optional Pistol Grip Trigger and 27" Pole Shutter Extension kit offer ability to adjust focus and capture images with hands off housing, allowing for blur-free images
- Pistol is great for one-handed, run-and-gun style active shooting
- Pole enables remote firing and also affords extra reach when shooting at certain angles
- Construction Details
-
- Body crafted from durable polyurethane
- Controls and reinforced quick-release clips with safety latches are made of stainless steel, aluminum, and high strength plastics
- 3/8"-16 threaded mount on bottom for connection to optional tripod or tray
- Lens Port System
-
- Ships without required lens port
- Accepts series of screw-mounted ports for a wide range of lenses
- For complete compatibility information, see Port Chart linked above
- External Strobe Use
-
- Optional flash bulkhead sync connector enables attachment of optional external strobes and pocket wizards
- Bulkhead included with purchase of AquaTech's flash housing
UPC: 810778011319 In the Box AquaTech Delphin D5 Water Housing for Nikon D5 Back Plate Camera Mounting Plate Tool Kit Limited 3-Month Warranty Lens Based Cross Reference Chart PDF 169kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech Delphin D5 Water Housing for Nikon D5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech D5 Specs | Depth Rating | 33' / 10 m | | Control Type | Mechanical push-buttons and knobs/dials | | Controls | Provide access to following camera functions: Menu, playback, zoom in, zoom out, AF-On, info, ISO, OK, live view, video / stills, shutter, multi-control pad (up, down, left & right), and rear control dial | | Material of Construction | Body: Polyurethane
Controls and QR Clips/Latches: Stainless steel, aluminum, and high-strength plastics | | Lens Port | Ships without required lens port
Accepts series of screw-mounted ports for wide range of lenses
For complete compatibility information, see Port Chart linked in Overview | | Buoyancy | Generally positive, though may vary with choice of lens and port | | External Strobe Connector | Optional flash bulkhead sync connector (included with AquaTech flash housings) | | Mounting | 3/8"-16 threaded tripod/tray mount | | Dimensions | 8.5 x 8.5 x 5.0" / 21.6 x 21.6 x 12.7 cm | | Weight | 4.1 lb / 1.8 kg | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 13.1 x 10.4 x 6.3" |
