Product description

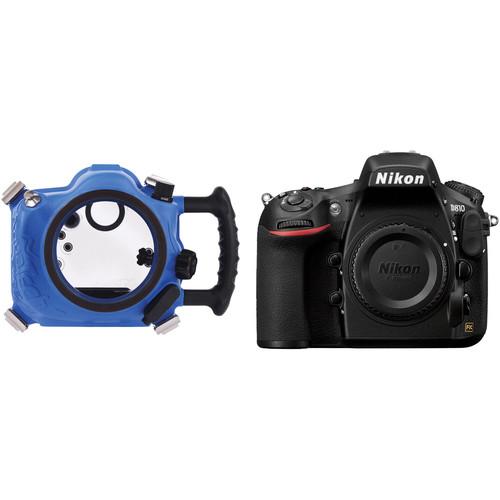

• AquaTech Elite D810 / D800 Underwater Sport Housing for Nikon D800, D800e or D810 Capture photos and video over, under, or near the water's surface with your Nikon D800, D800e or D810 in this AquaTech Elite D810 / D800 Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.

  The Elite D810 / D800's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and side grip offer optimal handling and comfort. An optional Pistol Grip Trigger and 27" Pole Shutter Extension kit offers remote firing capability and focus control, allowing you to capture blur-free images with ease. The pole also affords extra reach when shooting at certain angles.

  The housing's polyurethane body has reinforced quick-release clips and tactile controls made of stainless steel, aluminum, and high strength plastics. All of the aluminum parts have been anodized for resistance to corrosion and other wear and tear. The O-rings that secure the housing's inner controls are greased during assembly and a small tube of O-ring grease is included for continued maintenance of the metal shafts of the housing's push controls.

  An optional flash bulkhead sync connector, supplied with the flash housing, enables the Elite D810 / D800 to work with optional accessories such as external flash units and pocket wizards. A threaded 3/8"-16 mounting point at the bottom of the housing enables connection to an optional tripod or tray. The Elite D810 / D800 sport housing ships without a required lens port, and accepts a series of screw-mounted ports for for a range of lenses. For complete compatibility information, see this Port Chartusfweddfbrvddtrdyttfrrsefbdcvvbfyq.
  Waterproofing
  • • Depth rating of 33'
    • Designed for shallow water and surface use, housing shouldn't be operated at depths beyond 15' for longer than five minutes.
    Controls, Handling and Operation
    • • Provides access to the following camera functions via mechanical, push-button controls on housing backplate: Menu, Playback, Zoom In/Out, Multi Controller, Live view/Video button, AF-ON, Back Dial, Shutter
      • Ergonomic design with side grip for optimum handling.
      • Camera Plate bolts to the bottom of camera and slides into mount inside housing.
      • Optional pistol grip or optional 27" pole shutter extension kit enables remote firing capability and focus control, allowing you to capture blur-free images with ease. Pole also offers extra reach when shooting at certain angles. Additionally, this housing is compatible with optional strobes or PocketWizards in their own designated housings.
      Construction Details
      • • Made from durable polyurethane.
        • Controls made from stainless steel, anodized aluminum and high strength plastic.
        • Four quick release clips with safety latches.
        • Main and front compression O-rings seal the main back plate at the rear and the lens port on the front below the threads.
        Lens Port System
        • • Ships without a required lens port.
          • Various interchangeable ports are available for wide-angle, macro, and zoom lenses.
          • For full compatibility, see Port Chart linked above.
          External Strobe Use
          • • Optional flash bulkhead sync connector enables attachment of optional external strobes. Flash bulkhead included with purchase of AquaTech's flash housing.
            • Optional pistol grip or pole shutter release enables remote firing capability and is compatible with optional strobes or PocketWizards in their own designated housings.
            Mounting
            • • 3/8"-16 threaded tripod mounting point.
              UPC: 810778003055
            • Nikon D810 DSLR Camera (Body Only) The Nikon D810 DSLR Camera takes its place as the high resolution option in the Nikon DSLR lineup. It features a 36.3MP FX-format CMOS sensor without an Optical Low Pass Filter for particularly sharp and detailed still imaging. With the addition of the EXPEED 4 Image Processor, performance speed is increased compared to the EXPEED 3 and noise is effectively reduced throughout the ISO range. Continuous shooting speed in FX format is 5 fps and in DX format hits a maximum of 7 fps. In addition, the Full HD video capabilities of the D810 have been upgraded to include 1080p capture at 24, 30 and 60 fps. Also, the improved efficiency of the processor enables up to 1200 shots on one battery charge and 40 minutes of video recording. Low light performance has been upgraded thanks to a wide native ISO sensitivity range that runs from 64 to 12,800 and can be expanded from 32 to 51,200. The advanced Multi-CAM 3500FX autofocus sensor offers 51 AF points with 15 cross-type sensors and Group Area AF enables five AF sensors to be used as one group. This is useful when shooting subjects that cannot be tracked easily by one AF point due to lighting conditions. As a camera optimized for video capture, the D810 features recording in both FX and DX formats including simultaneous recording to memory cards and an external recorder as well as recording 60p output to an external recorder. The ISO range for video has also been expanded to run from ISO 64 to 12,800 and expand to 51,200. Automatic ISO adjustment in manual mode enables smooth exposure transitions. A built-in stereo microphone is supported as are jacks for an external mic and headphones. A selectable audio frequency range provides exacting control over sound recording.A 3.2" LCD with 1,229K-dot resolution provides playback viewing and live view, and improved coatings on the optical viewfinder components provide brighter images and more accurate colors. Live View function now includes split screen display zoom for stills, and zebra highlighting display in video mode. Full aperture metering during live view for still shooting is supported.Interval and time-lapse shooting feature exposure smoothing, and the maximum number of images per sequence is now 9,999. Improved Picture Control settings now offer Flat Picture Control to enable maximum dynamic range and color adjustments in post-production.The D810 utilizes dual media slots for both Compact Flash and SD cards, and it provides a built-in flash with i-TTL metering as well as a hot shoe mount. A larger grip enables comfortable control for extended shooting, and a secondary "i" button has been added to back panel for faster access to important settings.
              36.3MP FX-Format CMOS Sensor without an Optical Low Pass Filter
              • Nikon's highest resolution sensor is housed in the D810, and by omitting the Optical Low Pass Filter, the sensor provides superior sharpness and detail. The sensor boasts fast channel readout, wide dynamic range, rich tones and improved imaging at high sensitivities.
              EXPEED 4 Image Processor
              • The EXPEED 4 processor provides 30% faster performance over the EXPEED 3 as well improved low noise imaging throughout the ISO range. Support for 1080p video capture at 60 fps is featured and the processor's increased efficiency enables up to 1200 still shots and 40 minutes of video recording per charge.
              Native ISO Range of 64 to 12,800
              • The improved ISO range compared to the D800 enables more effective low light imaging, and the ISO can be expanded from 32 to 51,200.
              Advanced Multi-CAM 3500FX Auto Focus Sensor
              • Versatile AF Modes of 9, 21, and 51 points and 3D tracking enable fast, precise auto focus control. AF sensitivity down to -2 EV is effective in low light and 15 cross-type sensors are compatible with AF NIKKOR lenses with open aperture of f/5.6 or faster. Eleven central focus points work with an open aperture of f/8. Improvements include upgraded 'lock-on', expanded 'store by orientation,' and more options for AF mode restrictions.
              Group Area AF
              • Group Area AF enhances subject detection and tracking in challenging lighting conditions or when shooting comparatively small subjects against a high-contrast background by grouping and monitoring 5 individual AF points. The 5-point AF area can be shifted across the 51-point array as your composition changes.
              RAW Size S
              • Accelerate your workflow with Nikon's RAW Size S file format which delivers 12-bit uncompressed Nikon NEF files that enable faster image transfer and smoother post-production.
              Continuous Shooting
              • In FX mode, the D810 can shoot up to 5 fps, and in DX mode it can capture up to 7 fps when utilizing the MB-D12 battery grip with AA batteries.
              Reduced Vibration for Sharper Imaging
              • The D810's shutter/mirror box architecture and electronic front-curtain feature improve overall image clarity. The shutter/mirror mechanism reduces image shake for a steady viewfinder image with minimal blackout during high-speed shooting. When activated, the electronic front-curtain shutter reduces the risk of blur in even subtle details by minimizing internal vibrations during exposure.
              Quiet Continuous Mode
              • A redesigned Sequencer/Balancer Mechanism enables Quiet Continuous Mode for near silent sequential shooting.
              Picture Control
              • In addition to standard, neutral, vivid, monochrome, portrait and landscape, image control options have been expanded to include Flat Picture Control which is geared for shooting in RAW modes and for video capture when adjustments will be made in post-production. Also, a clarity option has been added to all Picture Control settings and better control over Picture Control is enabled by fine 0.25 steps.
              Full HD 1080p Video Capture in 60/30/24 fps
              • Video recording is supported in both FX and DX formats with an ISO range from 64 to 12,800 and expandable to 51, 200. Simultaneous recording to memory cards and to an external recorder is now supported. Auto ISO adjustment is possible in manual mode for smooth exposure transitions. Nikon's 3D noise reduction reduces random noise, distortion, and flicker when filming at high sensitivities. Zebra mode on the camera monitor shows you exactly where highlights are. A built-in stereo microphone as well as jacks for external microphone and headphones are provided. You can fine-tune audio levels in isolation both before and during recording and select the sound range (wide/voice).
              3.2" LCD Monitor with 1,229k-dot Resolution
              • A high resolution LCD provides detailed playback viewing and live view capture with color balance and brightness control. A split screen display zoom for still shooting lets you compare two enlarged points in the image for sharpness and exposure.
              Optical Viewfinder
              • Improved coatings on the optical components render brighter and more accurate color, and the Organic EL information display makes it easier to make adjustments under bright/dim conditions.
              Interval Timer/Time-Lapse Shooting
              • Exposure smoothing is supported in time-lapse and interval shooting modes and the number of recordable images has been increased to 9,999.
              Flash
              • Both a built-in flash and hot shoe mount are supported with i-TTL metering, as is a flash sync terminal. The built-in flash offers commander mode for wireless control of up to two groups of off-camera flash units.
              CF and SD Card Slots
              • Two card slots are supported for versatile image storage and smoother workflow. One CF card slot for high-speed UDMA 7 cards, and one SD card slot for high-speed, high-capacity SDXC and UHS-I cards allow you to use one card as back-up or place still images on one card and video on the other or RAW on one and JPEG on the other.
              Wi-Fi with Optional Transmitter
              • The D810 offers wireless connectivity for image transfer to a computer or FTP server and for remote camera control using Nikon's Camera Control Pro 2 software via the optional WT-5A Wireless Transmitter in combination with the optional UT-1 Communications Unit. The WT-5 attaches to the UT-1 unit which mounts to the camera's accessory hot shoe.
              Form Factor
              • A deeper hand grip improves handling, and a secondary "i" button has been added for easier access to important settings. A durable magnesium alloy body with extensive weather and dust sealing ensure the D810 is moisture- and dust-resistant.
              UPC: 018208015429
            In the Box
            • Elite D810 / D800 Underwater Sport Housing for Nikon D800, D800e or D810 usfweddfbrvddtrdyttfrrsefbdcvvbfyq
            • Back Plate
            • Camera Plate
            • Tool Kit
            • Tube of Grease
            • Limited 3-Month Warranty
            • Nikon - D810 DSLR Camera (Body Only)
            Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AquaTech Elite D810 / D800 Underwater Sport Housing for Nikon D800, D800e or D810

  Depth Rating	33' / 10 m
  Control Type	Mechanical.
  Controls	Housing provides access to these camera functions: Menu, Playback, Zoom In/Out, Multi Controller, Live view/Video button, AF-ON, Back Dial, Shutter.
  Material of Construction	Polyurethane body, stainless steel and hard anodized aluminum controls.
  Lens Port	Required and sold separately. Lens Port Mount Diameter: 4.75" / 120 mm. Various interchangeable, screw-mount flat and dome ports are available for wide-angle, macro and zoom lenses. For compatibility details, see port chart linked in overview.
  Buoyancy	Varies depending on choice of lens and port.
  External Strobe Connector	The Elite D810 / D800 can accommodate an optional flash bulkhead, which is included with the purchase of AquaTech's flash housing.
  Viewfinder	None
  Moisture Alarm	None
  Mounting	3/8"-16 threaded tripod mounting point.
  Dimensions (W x H x D)	7.5 x 6.75 x 5.0" / 19.0 x 17.1 x 12.7 cm
  Weight	3.6 lb / 1.6 kg

  Box Dimensions (LxWxH)	12.7 x 9.4 x 6.3"

• Nikon D810 DSLR Camera (Body Only)

  Lens Mount	Nikon F
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 37.09 Megapixel Effective: 36.3 Megapixel
  Maximum Resolution	7360 x 4912
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	35.9 x 24 mm
  Image File Format	JPEG, RAW, TIFF
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 64 to 12800 (Extended: 32 to 51200)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	3D Color Matrix, Center-Weighted Average, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2, 1 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (Warm White), Fluorescent (White), Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 5 fps
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p HD (1280 x 720) at 50p/59.94p
  External Recording Modes	Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 20 Minutes for Full HD (1920 x 1080) at 50p/59.94p Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) at 23.976p/25p/29.97p Up to 29 Minutes, 59 Seconds for HD (1280 x 720) at 50p/59.94p
  Video Encoding	NTSC
  ISO Sensitivity	64 to 12800 (Extended: 51200)
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	51 (15 Cross-Type)
  Autofocus Sensitivity	-2 to +19 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	17 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.7x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,229,000 Dot
  Monitor Type	LCD

  Built-in Flash	Yes
  Flash Modes	Auto, First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	39' / 11.89 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2, 1 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe, PC Terminal, Wireless

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 3.0 Micro-B
  Wireless	Wi-Fi (Via Adapter)
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15 Rechargeable Lithium-Ion, 7.0 VDC, 1900 mAh
  Dimensions (W x H x D)	5.7 x 4.8 x 3.2" / 146.0 x 123.0 x 81.5 mm
  Weight	31.04 oz / 880 g

  Box Dimensions (LxWxH)	9.7 x 6.6 x 6.1"
