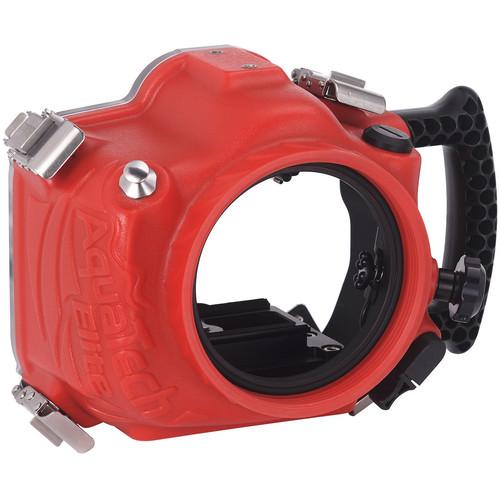

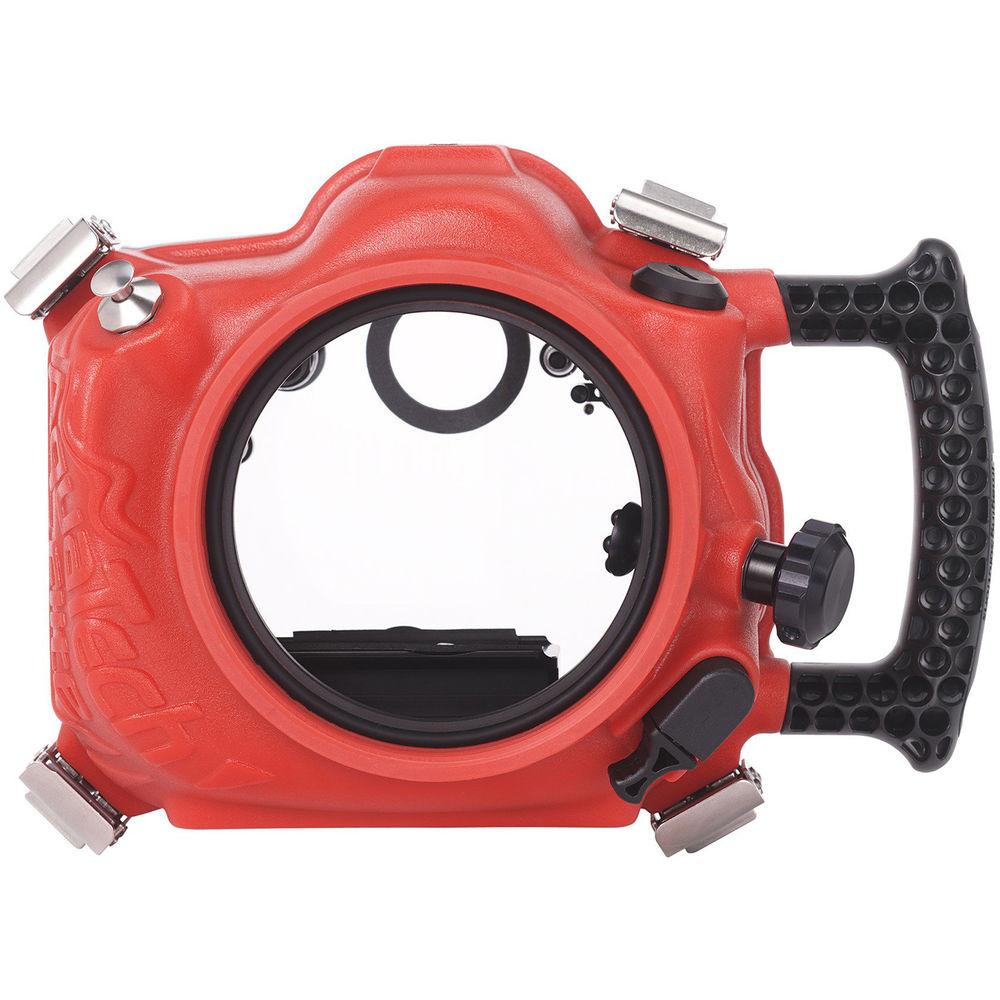

Product description Capture images over, under, or near the surface with your Panasonic Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera in AquaTech's Elite GH5 Water Housing, which features a depth rating of 33'. Mechanical controls afford easy access to important camera functions, while an ergonomic side grip improves handling and comfort. An optional Pistol Grip Trigger and Pole Shutter Extension will enable remote firing capability and focus control, allowing you to capture blur-free images with ease. The pole will also give you extra reach when shooting at certain angles.

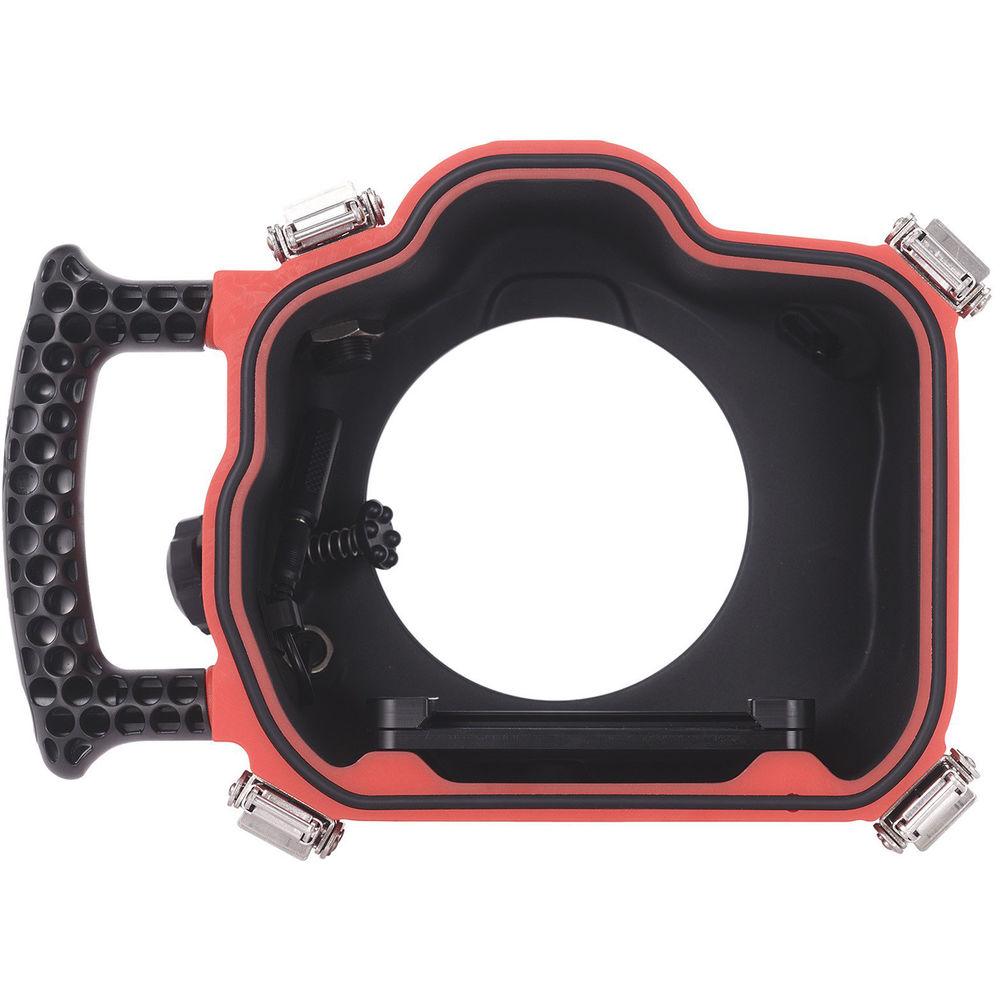

Built for durability, the housing body is constructed from corrosion-resistant polyurethane and the controls are made of stainless steel, anodized aluminum, and high-strength plastic. Together, the quick-release clips with safety latches and the O-rings ensure that the Elite GH5 remains watertight to keep your camera and lens safe.
A threaded 3/8"-16 mounting point at the bottom of the housing enables connection to an optional tripod or tray. The enclosure ships without a required lens port, and accepts a series of interchangeable ports for various lenses. For complete compatibility details, see the P-Series Port Chart. - Construction Details
-
- Depth Rating: 33'
- Designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes
- Made from durable, corrosion-resistant polyurethane
- Controls made from corrosion-resistant stainless steel, anodized aluminum, and high-strength plastic
- Quick-release clips with safety latches, along with multiple O-rings, ensure the housing is watertight
- Controls and Handling
-

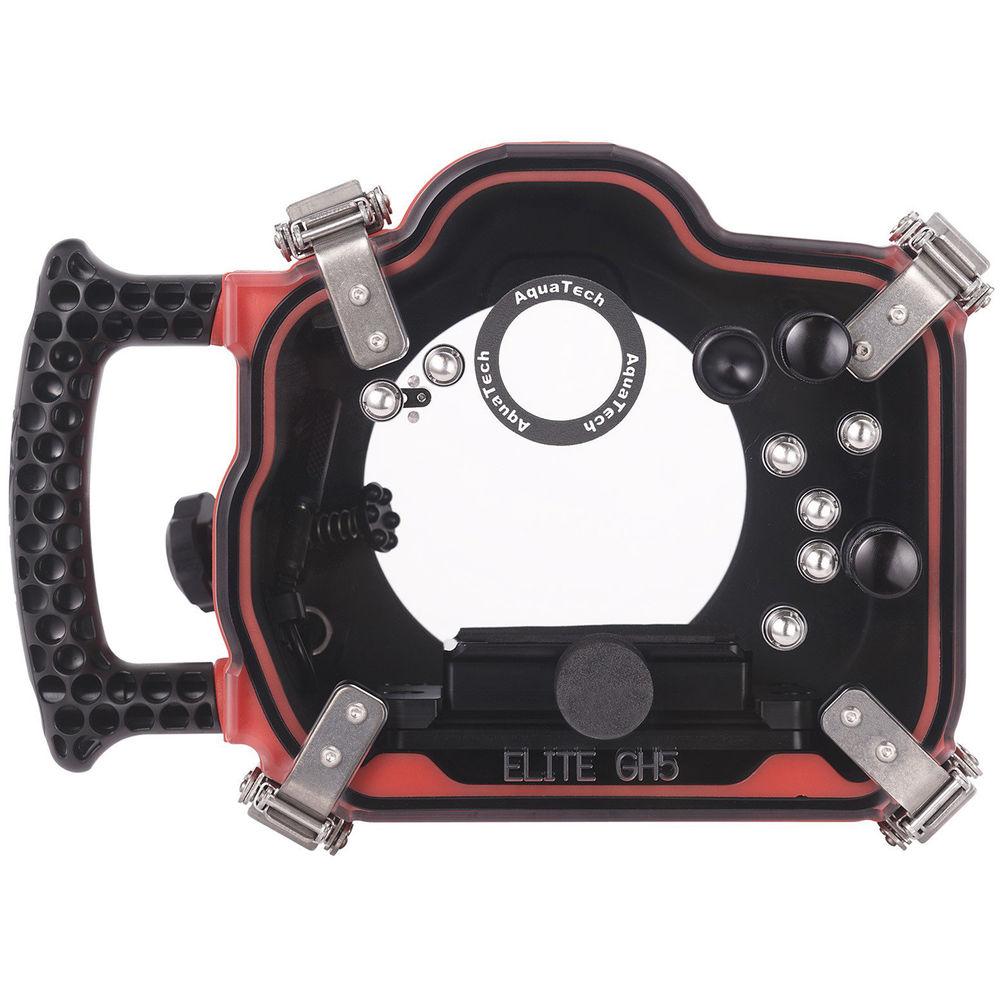

- Mechanical push-buttons and dials afford access to important camera functions, including shutter, manual focus, auto focus (AFC, AFS), mode dial, control dial, multi-controller, menu, set, display, Fn3, Fn4, Fn5, and playback
- Ergonomic side grip improves handling and comfort

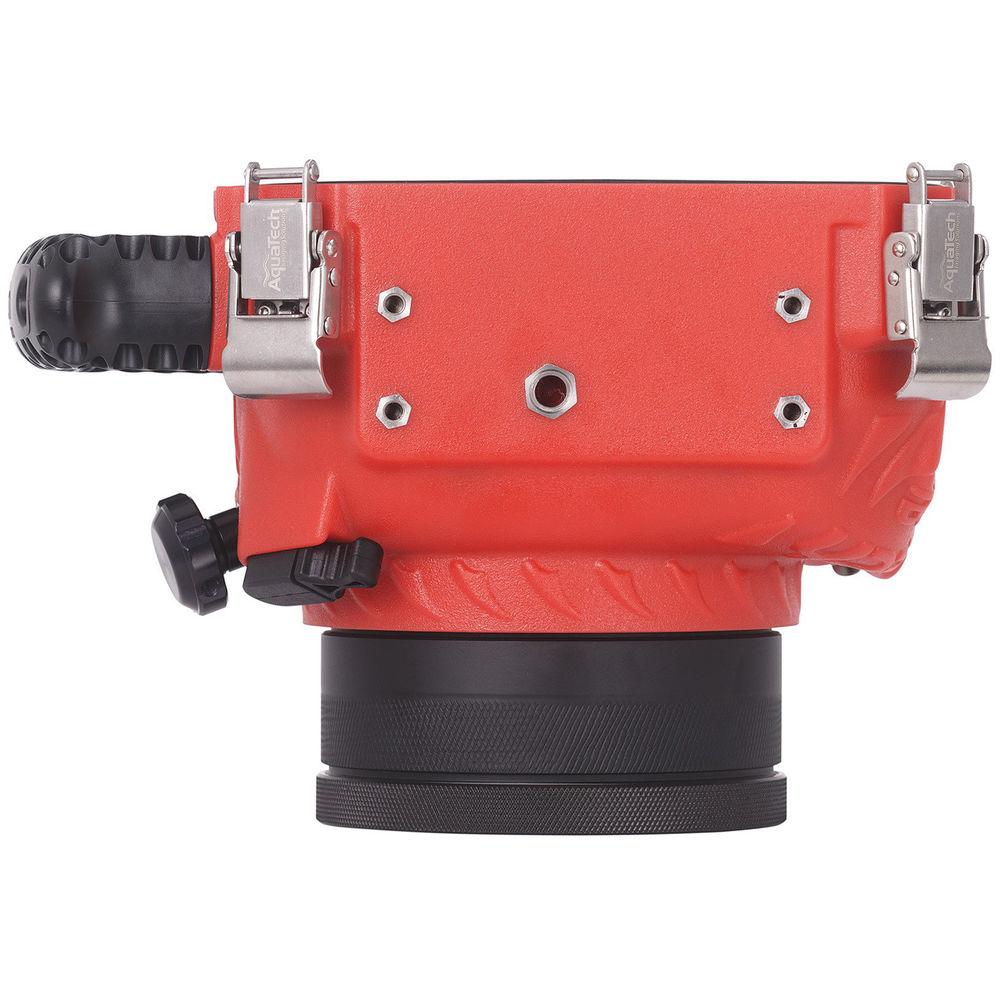

- 3/8"-16 threaded mount enables connection to an optional tripod or tray
- Lens Ports
-
- Ships without a required lens port
- Accepts a series of interchangeable ports for various lenses
- For complete compatibility details, see the port chart linked above
- Strobe Connection and Operation
-
- Optional flash bulkhead connector enables the attachment of external strobes via sync cords
- Bulkhead is included with AquaTech's flash housings
- Optional pistol grip or pole shutter release enables remote firing capability, and is compatible with strobes or PocketWizards installed in their own housings
UPC: 810778012491 In the Box AquaTech Elite GH5 Water Housing for Panasonic Lumix DC-GH5 Set of O-Rings Camera Plate Tool Kit Limited 3-Month Warranty Lens Based Cross Reference Chart PDF 153.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech Elite GH5 Water Housing for Panasonic Lumix DC-GH5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech Elite GH5 Specs | Depth Rating | 33' / 10 m | | Control Type | Mechanical push-buttons and dials | | Controls | Enable access to important camera functions: shutter, manual focus, auto focus (AFC, AFS), mode dial, control dial, multi-controller, menu, set, display, Fn3, Fn4, Fn5, and playback | | Material of Construction | Body: Polyurethane
Controls: Stainless steel, anodized aluminum, and high-strength plastic | | Lens Port | Ships without a required lens port
Accepts a series of interchangeable ports for various lenses
For complete compatibility details, see port chart linked in overview section | | Buoyancy | Positive | | External Strobe Connector | Optional bulkhead can be added for connection of external strobes via sync cords
Bulkhead is included with AquaTech's flash housings | | Viewfinder | None | | Moisture Alarm | None | | Mounting | 1x 3/8"-16 tripod mount | | Dimensions | 7.5 x 6.75 x 5.0" / 19 x 17.1 x 12.7 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 10.7 x 8.3 x 6.2" |
