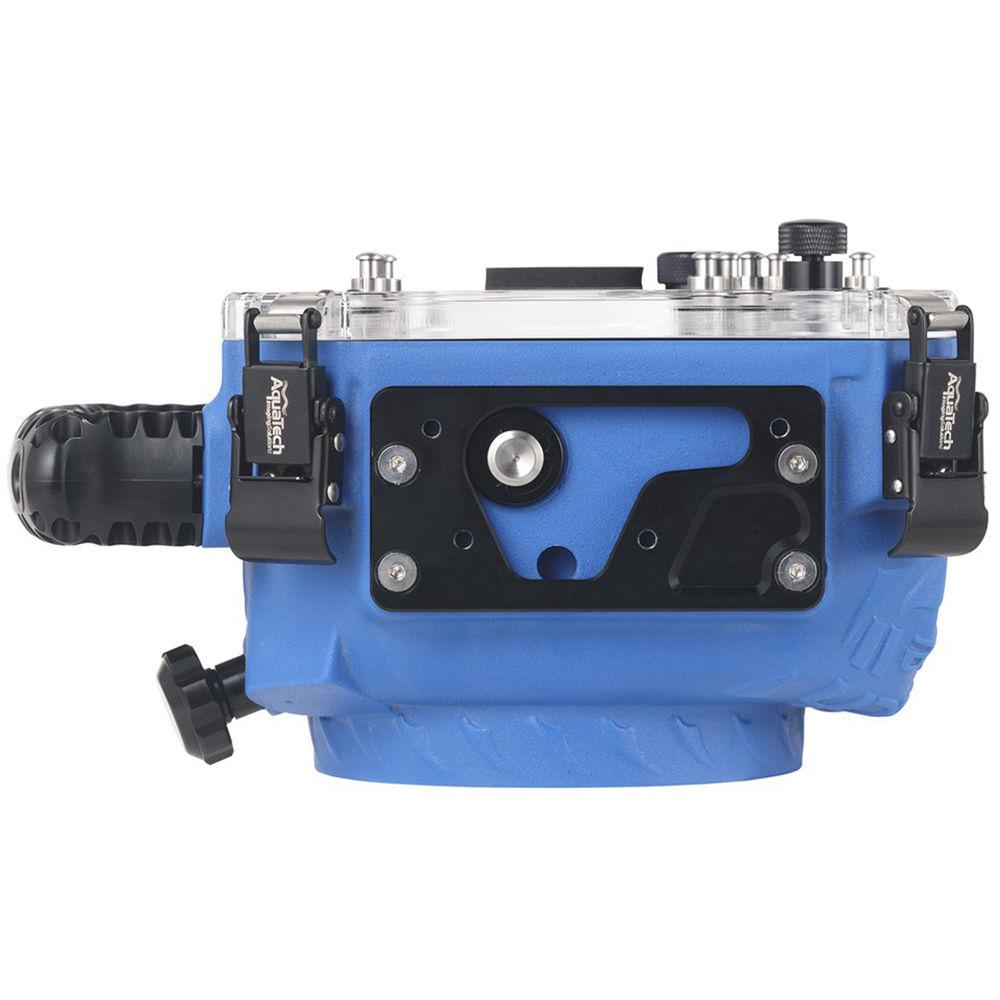

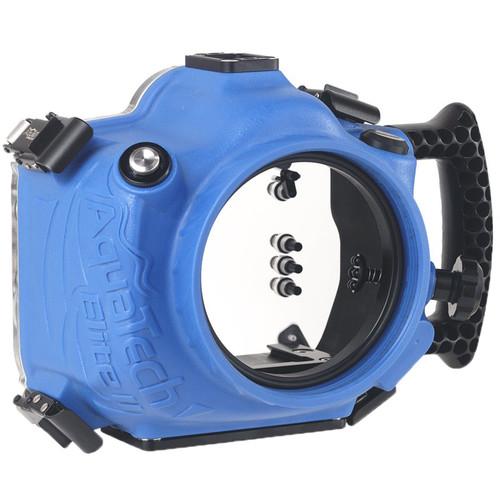

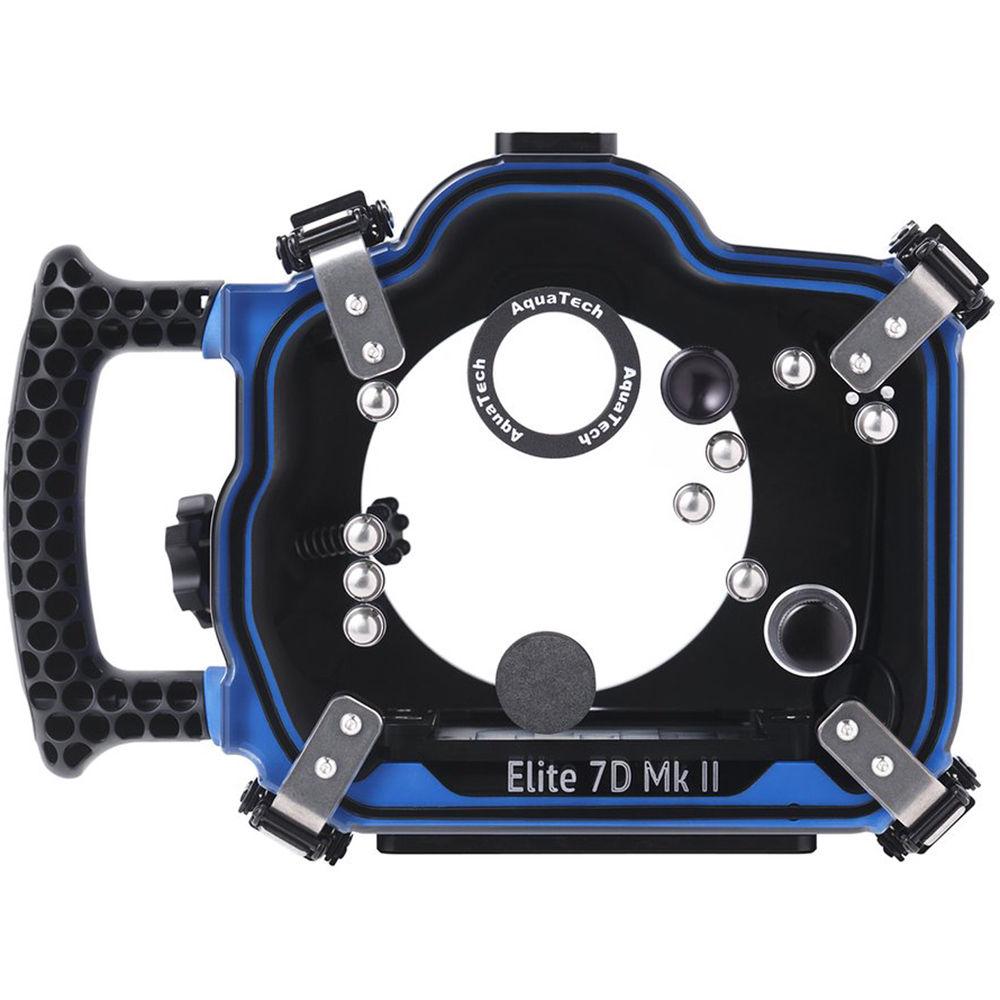

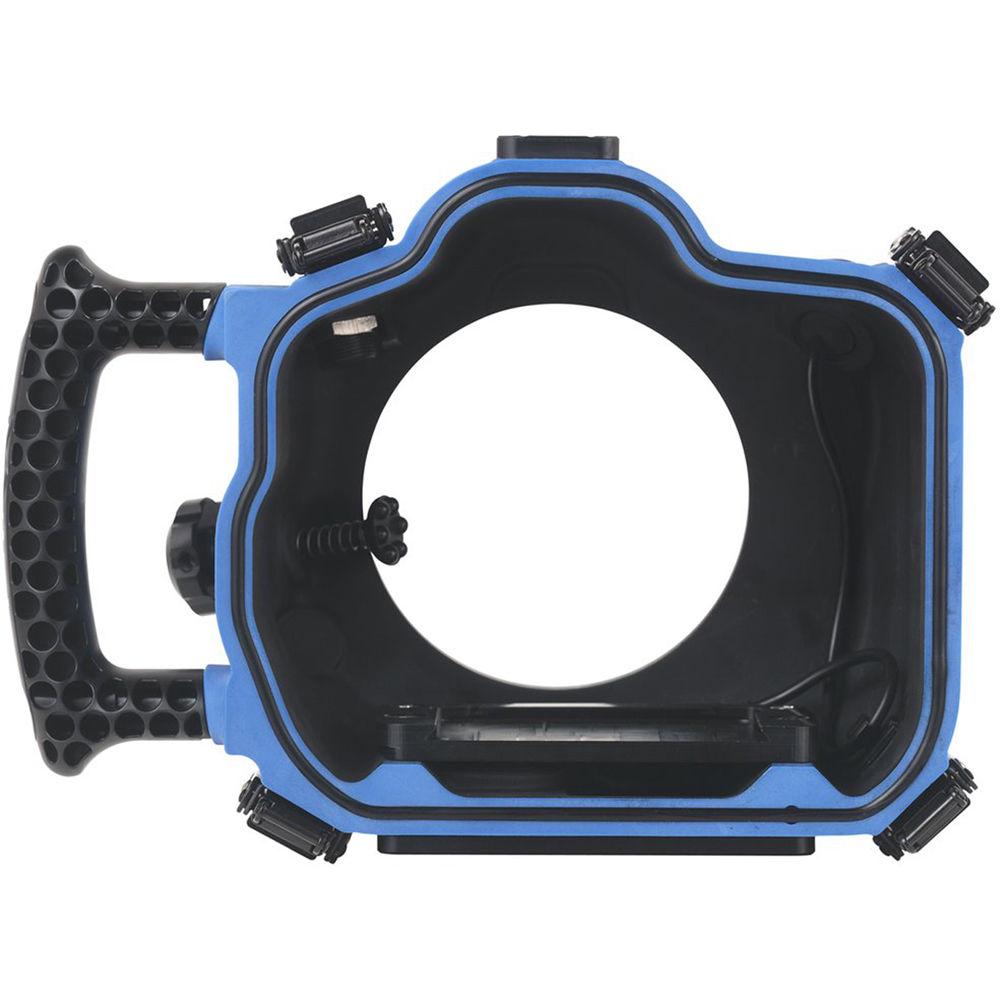

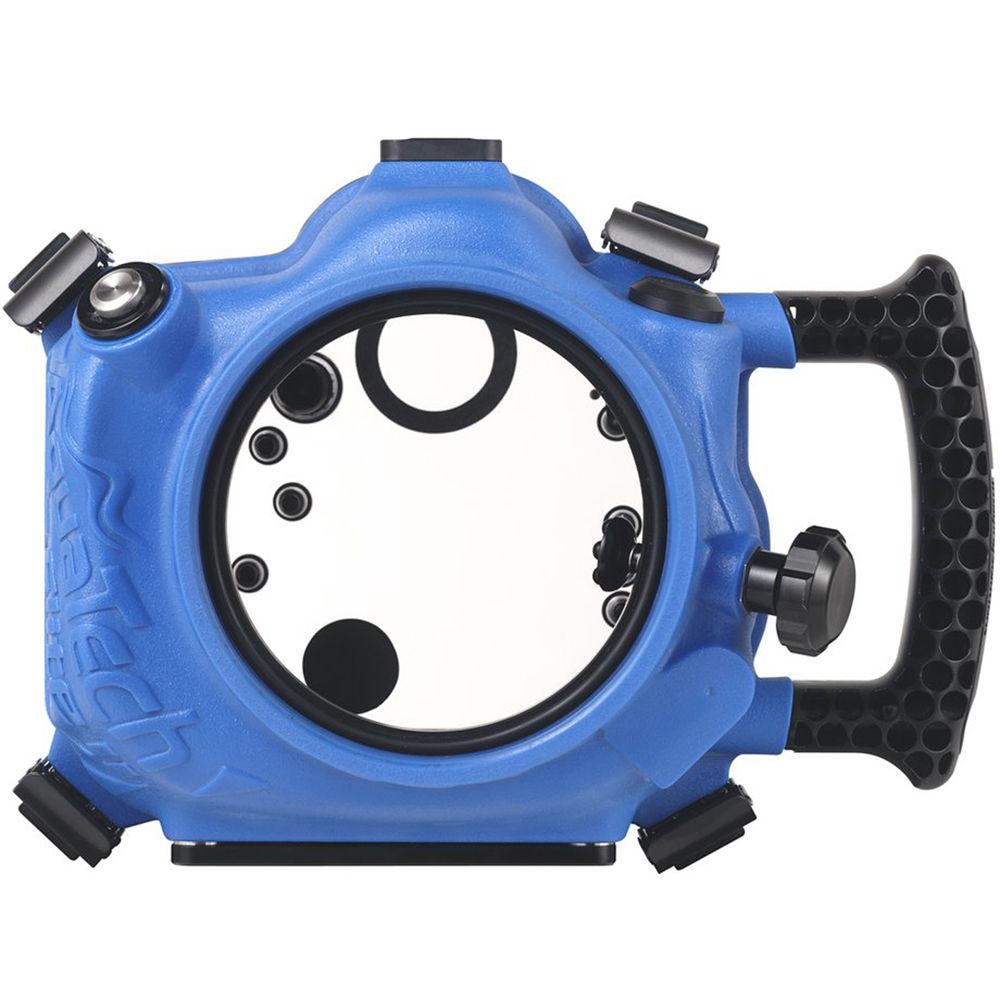

Product description Experience the same half-press for focus, full-press to shoot function as your dry-land photography with the AquaTech Elite II 7D2 Underwater Camera Housing. Designed for use with the Canon 7D Mark II DSLR, the 33' depth-rated housing's electronic shutter controls (one for portrait, one for landscape) provide a sensation similar to the camera's half-press shutter function, allowing the user to easily determine the half-press for focus and full-press for shutter release.
The Elite II's other controls are mechanical, providing easy access to important camera functions, and its ergonomic design and side grip afford optimal handling and comfort. The housing's polyurethane body has reinforced quick release clips and tactile controls made of stainless steel, aluminum, and high-strength plastics. All the aluminum parts have been anodized for resistance to corrosion and other wear and tear.
A sync cord bulkhead, supplied with AquaTech flash housings, enables the Elite II 7D2 to work with separately available accessories such as external strobe units and pocket wizards. A threaded 1/4"-20 mounting point at the bottom of the housing enables connection to an optional tripod or tray. The enclosure ships without a required lens port and accepts a series of ports for a wide range of lenses. For complete compatibility information, see the Port Chart. - Waterproofing
-
- Depth Rating: 33'
- Designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for more than 5 minutes
- Controls, Handling, and Operation
-
- Electronic shutter release mimics half-press focus camera function
- Tactile mechanical push-button and knob/dial controls provide easy access to important camera functions, including AF-On, start/stop video recording, video/photo switch, Q menu, right multi-controller, set button, zoom in, playback, auto focus points button, rear control dial, dual shutter buttons
- Ergonomic design and side grip afford optimal handling and comfort
- Camera plate bolts to bottom of camera and slides into mount inside housing
- Separately sold M3 Pistol Grip also offers half-press functionality
- Construction Details
-
- Body crafted from durable polyurethane
- Blue front, top and sides, clear back for camera visibility
- Controls made of stainless steel, aluminum, and high-strength plastics
- All aluminum parts anodized for resistance to corrosion and other wear and tear
- 1/4"-20 tripod mount
- Lens Port System
-
- Ships without required lens port
- Accepts a series of ports for a wide range of lenses
- For complete compatibility information, see Port Chart linked above
- External Strobe Use
-
- Flash bulkhead sync connector, supplied with AquaTech flash housings, provides compatibility with flash units and pocket wizards
- Housing ships without required sync cord
UPC: 810778013153 In the Box AquaTech Elite II 7D2 Underwater Camera Housing for Canon 7D Mark II Camera Plate Tool Kit Limited 1-Year Warranty Port chart PDF 203.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech Elite II 7D2 Underwater Camera Housing for Canon 7D Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech Elite II Specs | Depth Rating | 33' / 10 m | | Controls | Electronic Shutter Release
Mechanical Control of AF-On, Start/Stop Video Recording, Video/Photo Switch, Q Menu, Right Multi-Controller, Set Button, Zoom In, Playback, Auto Focus Points Button, Rear Control Dial, Dual Shutter Buttons | | Material of Construction | Body: Polyurethane
Controls and QR Clips: Stainless Steel, Anodized Aluminum, Plastic | | Dimensions | 7.5 x 6.8 x 5.0" / 19.0 x 17.1 x 12.7 cm | | Weight | 3.6 lb / 1.6 kg |
