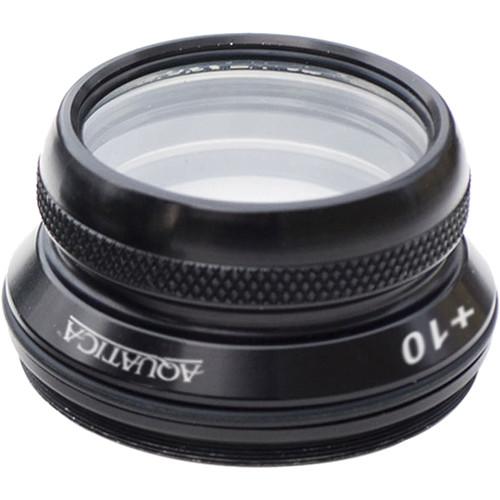

User Manual for Aquatica 10 Wet Diopter Close Up Lens Click to enlarge the picture
Contents of the user manual for the Aquatica 10 Wet Diopter Close Up
- Product category: Lenses Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Lenses
|
User manual for the Aquatica 10 Wet Diopter Close Up contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|
Product description The +10 Wet Diopter Close Up Lens from Aquatica mounts externally on the front of your macro port. Positioned directly in front of your standard macro lens, it adds magnification power to it. Conveniently, the Wet Diopter can be easily added or removed as needed during a dive, enabling you to move from normal close up to super macro work with no trouble at all. Constructed from military-grade, anodized aluminum and achromatic dual-element BK-7 mineral glass encased in air, the lens helps eliminate aberration and distortion, enhancing sharpness and preserving the magnification of the original lens when submerged. This dual-element, or "doublet," design also offers greater performance than a single element construction can provide.
The Wet Diopter is treated with both a scratch-resistant and anti-reflective coating for maximum protection and brightness. It maintains the highest standard of optical performance, offering a flat focus plane virtually free of color fringing. Super macro excellence is well within reach with the +10, which provides up to 2.2:1 magnification with a standard 105mm macro lens. Enjoy the power to bring to light minute details that escape the naked eye--at twice life-size.
The mounting of the close up lens is performed via a unique press fit method, making for fast, secure attachment. A quick mount, enabling underwater lens attachment and removal in mere seconds, and 67mm mounting threads for wide compatibility with various underwater housings, are incorporated into the lens design. The optional aluminum holder (not included) mounts on any of Aquatica's bayonet macro ports. Its fastener won't scratch or damage the protective layer of anodizing on the port. - Mounts externally on the front of your macro port. Positioned directly in front of your standard macro lens, it adds magnification power to it
- Can be easily added or removed as needed during a dive, enabling you to move from normal close up to super macro work with no trouble at all
- Constructed from military-grade, anodized aluminum and achromatic dual-element BK-7 mineral glass encased in air, the lens helps eliminate aberration and distortion, enhancing sharpness and preserving the magnification of the original lens when submerged
- Dual-element, or "doublet," design offers greater performance than a single element construction can provide
- Treated with both a scratch-resistant and anti-reflective coating for maximum protection and brightness
- Maintains the highest standard of optical performance, offering a flat focus plane virtually free of color fringing
- Super macro excellence is well within reach with the +10, which provides up to 2.2:1 magnification with a standard 105mm macro lens. Enjoy the power to bring to light minute details that escape the naked eye--at twice life-size
- Maximum magnification with different lenses:
60mm lens: 1.5:1
100mm lens: 2.1:1
105mm lens: 2.2:1
150mm lens: 2.8:1
200mm lens: 3.5:1 - Mounting is performed via a unique press fit method, making for fast, secure attachment. A quick mount, enabling underwater lens attachment and removal in mere seconds, and 67mm mounting threads for wide compatibility with various underwater housings, are incorporated into the lens design
- The optional aluminum holder (not included) mounts on any of Aquatica's bayonet macro ports. Its fastener won't scratch or damage the protective layer of anodizing on the port
In the Box Aquatica +10 Wet Diopter Close Up Lens 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica 10 Wet Diopter Close Up Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 19353 Specs | Construction | Military-grade anodized aluminum
Achromatic dual-element BK-7 mineral glass encased in air | | Reproduction Ratio | 60mm lens: 1.5:1
100mm lens: 2.1:1
105mm lens: 2.2:1
150mm lens: 2.8:1
200mm lens: 3.5:1 | | Mounting Thread | 67 mm | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 3.4 x 3.2 x 3.2" |
