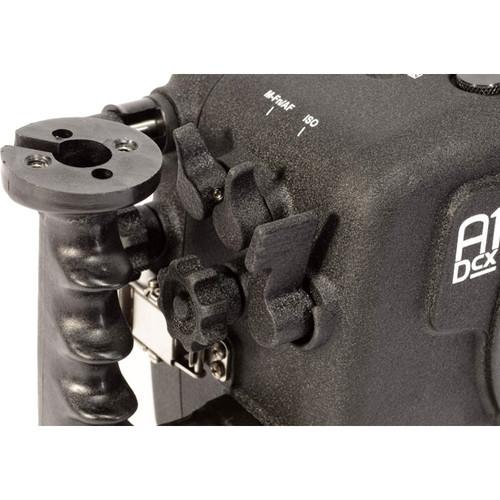

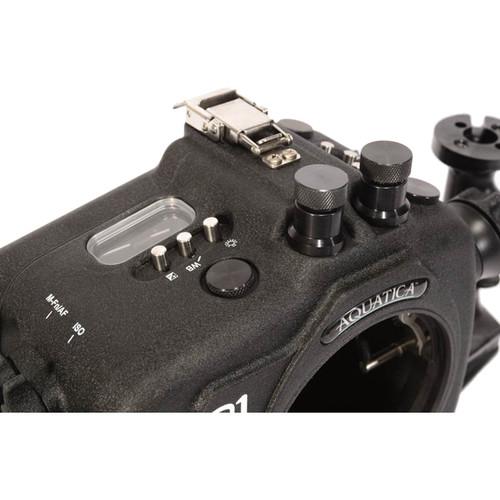

User Manual for Aquatica A1Dcx Pro Underwater Housing for Canon EOS-1D C or 1D X with Aqua VF and Vacuum Check System Click to enlarge the picture
Contents of the user manual for the Aquatica A1Dcx Pro Underwater Housing for
- Product category: Still Cameras & Housings Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Still Cameras & Housings
 |
User manual for the Aquatica A1Dcx Pro Underwater Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|
Product description You can capture brilliant photos and stunning 4K video of coral, parrot fish, and other denizens of the sea, thanks to Aquatica's A1Dcx Pro Underwater Housing for the Canon EOS-1D C or 1D X DSLR camera. It has a depth rating of 295', which can be upgraded for free to 426'. This version of the housing also includes a pre-installed vacuum check system, which allows you to confirm watertight integrity before the dive. Dual Nikonos connectors enable the attachment of optional external strobes via sync cords.
A standard, coated eyepiece offers a full view of the camera's viewfinder, and the coated Aqua View Finder, also included, offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment. The housing provides access to virtually all camera functions via mechanical controls, and has an ergonomic design with 2 grips that offer improved handling and attachment points for lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from anodized, machined aluminum and stainless steel.
The A1Dcx Pro ships without a required lens port, though various interchangeable ports are available for wide-angle, macro, and zoom lenses. For complete compatibility details, see the Type 1 Port Chart and Type 4 Port Chart. - Waterproofing
-
- Depth rating of 295', which is upgradeable to 426' upon request
- This version of housing includes pre-installed vacuum check system, which allows you to confirm watertight integrity before dive
- Known as Vacuum Circuitry and Alarm Kit, the atmospheric pressure-sensitive system consists of a vacuum valve, an extracting pump, and a SURVEYOR moisture alarm/pressure sensor with an on/off switch
- Moisture alarm features temperature compensation to prevent change in ambient temperature from affecting its accuracy
- Valve and extracting pump contribute by ensuring that a solid vacuum is created inside the housing
- Controls, Handling, and Operation
-
- Provides access to virtually all camera functions via mechanical controls, including push-buttons, levers, and grooved/knurled dials and knobs
- Knobs/dials oversized for easy operation when wearing diving gloves
- Extended shutter release for easier access
- Video control layout designed for easy reach and smooth operation
- Video record on/off control lever located on right side of housing and easily controlled via thumb
- Port lock and lens release mechanisms
- Large lens gear system with redesigned housing pinion gear for smoother transitions while zooming/focusing during video recording
- Ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms, such as those from Aquatica's Technical Lighting Control system
- Standard, coated Galileo-type eyepiece offers a full view of the camera's viewfinder
- Coated Aqua View Finder, also included, offers enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment
- Quick-release tray enables precise positioning of camera in housing, and allows you to insert and remove it via simple push tab
- Camera can be removed from rear of housing while lens and zoom gear remain attached
- Construction Details
-
- Made from machined, 6061 T6 aluminum alloy, which is black anodized to MIL-A-8625, type 2, class 2 specifications
- Certified A.A.M.A. 2603-98, electrostatic, polyester powder-coat paint is baked on at 350°F / 177°C (ASTM D2794 specification) for added protection
- Controls made from Type 304 stainless steel
- All shafts have double O-ring seals
- All push-pins have quad-ring seals
- Dual replaceable, sacrificial anodes on the front and rear of the housing shield vulnerable parts of the enclosure from saltwater, eventually being corroded in the process
- Lens Port System
-
- Ships without a required lens port
- Various interchangeable ports are available for wide-angle, macro, and zoom lenses
- For full compatibility, see Type 1 Port Chart and Type 4 Port Chart linked above
- External Strobe Use
-
- Dual Nikonos connectors enable the attachment of optional external strobes via sync cords
- Mounting
-
- Five accessory bulkhead entry points for optional monitors and more
- Five standard 1/4"-20 threaded holes: two on each hand grip and one centered on top of housing
- Three standard 1/4"-20 threaded holes located on bottom of housing for connection to tray, tripod, or bracket

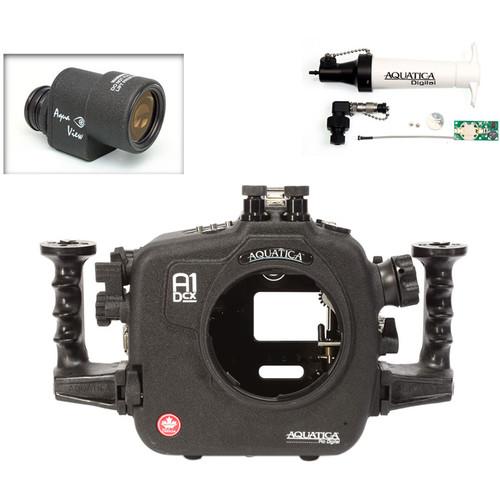

In the Box Aquatica A1Dcx Pro Underwater Housing for Canon EOS-1D C or 1D X with Aqua VF and Vacuum Check System (Dual Nikonos Strobe Connectors) Aqua View Finder and Standard Viewfinder Vacuum Check System 2 x Grip Handles Allen Key Spare Main O-Ring Container of O-Ring Lubricant Limited 1-Year Warranty Compatibility chart PDF 840kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica A1Dcx Pro Underwater Housing for Canon EOS-1D C or 1D X with Aqua VF and Vacuum Check System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20075-NK-VF-VC Specs | Depth Rating | 295'/ 90 m, upgradeable to 426' / 130 m | | Control Type | Mechanical push-buttons, levers, and grooved/knurled dials and knobs | | Controls | Provide access to virtually all camera functions | | Material of Construction | Housing: Anodized, machined 6061 T6 aluminum
Controls: Type 304 stainless steel
Sacrificial Anodes: Zinc | | Lens Port | Ships without a required lens port
Accepts various interchangeable ports are available for wide-angle, macro, and zoom lenses
For full compatibility, see port charts linked in Overview | | Buoyancy | Varies depending on choice of lens and port | | External Strobe Connector | 2x Nikonos connectors for use with optional sync cords | | Viewfinder | Standard, coated eyepiece offers full view of camera's viewfinder
Coated Aqua View Finder, also included, offers enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment | | Moisture Alarm | Yes, with audible and LED signals
Includes pre-installed vacuum check system for confirming watertight integrity before dive
Vacuum Circuitry and Alarm Kit are sensitive to atmospheric pressure
Consists of vacuum valve, extracting pump, and moisture alarm/pressure sensor with an on/off switch | | Mounting | Grips configured with 1/4"-20 female threaded mounts for optional lighting arms
Extra mounting point on top of housing
3x 1/4"-20 female threaded mounts on bottom for optional bracket, tray, or tripod
3x bulkhead access holes for accessories, such as external monitors or remote triggering devices | | Dimensions | With Grips: 8.5 x 5.3 x 13" / 21.6 x 13.5 x 33 cm
Without Grips: 8.5 x 5.3 x 8.6" / 21.6 x 13.5 x 21.8 cm | | Weight | With Grips: 8.5 lb / 3.9 kg |
