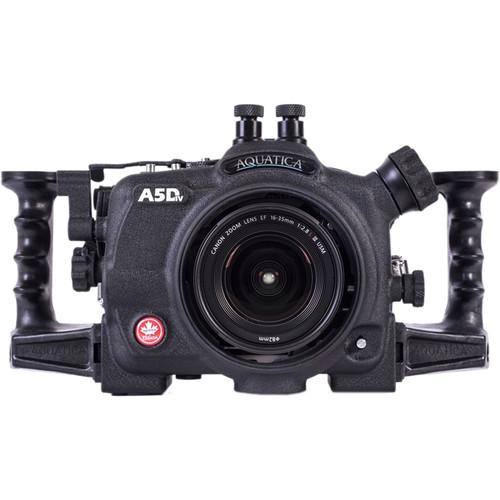

Product description Capture detailed still images and brilliant 4K video of parrot fish, moray eels, coral reefs, and more with Aquatica's A5DMkIV Underwater Housing for the Canon EOS 5D Mark IV DSLR camera. It has a depth rating of 295', which is upgradeable upon request to 426', and features a Surveyor moisture alarm and pressure sensor that will alert you in the unlikely event of a breach in the waterproof seal. This version of the housing also includes a pre-installed vacuum check system, which allows you to confirm watertight integrity before the dive.
Dual Nikonos connectors enable the attachment of optional external strobes via sync cords. The standard, coated eyepiece offers a full view of the camera's viewfinder, and the coated Aqua View Finder, also included, offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment. The housing provides access to virtually all camera functions via mechanical push-button, knob/dial, and lever controls. It also features an ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from anodized, machined aluminum and stainless steel.
The A5DMkIV ships without a required lens port, and accepts various interchangeable ports to accommodate a wide array of lenses. For full compatibility information, see the Port Chart. - Waterproofing
-
- Depth rating: 295', which is upgradeable upon request to 426'
- Surveyor audible/visible moisture alarm and atmospheric pressure sensor alert you in unlikely event of a breach in waterproof seal
- This version of the housing also includes a pre-installed vacuum check system with a valve and extracting pump, allowing you to confirm watertight integrity before the dive and actually create a vacuum inside the housing if necessary
- Circuit features integrated temperature compensation, preventing changes in ambient temperature from affecting accuracy
- Green LED lights up to indicate that vacuum has been created
- Controls, Handling, and Operation
-

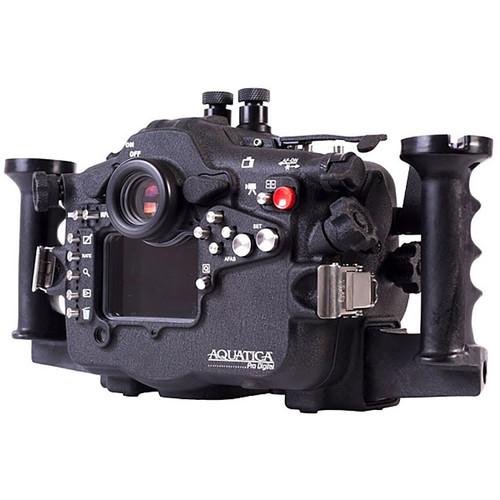

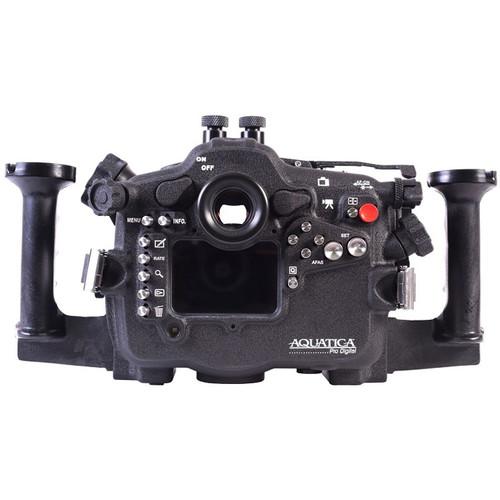

- Provides easy access to virtually all camera functions, including live view toggle, rear SET button, and multi-controller pad, via mechanical push-button, knob/dial, and lever controls
- Knurled knobs and over-sized controls ensure problem-free operation, even when wearing thick gloves
- SET button moved slightly up and right of its position on A5DSR Pro housing, making it more easily accessible via your thumb
- AF area button added by Canon is also accessible by way of a dedicated control on housing, allowing you to choose any combination of 61 AF points
- AF-ON and start button access via rotating collar
- Controls for aperture, shutter, ISO, and strobe exposure are all accessible with your hands on grips
- Control extender arm/lever for ISO button
- Video record button, positioned close to thumb, is large and red for quick identification and easy pressing
- Menu buttons angled for easier reach
- Smaller housing pinion gear and larger lens gear allow for smoother action while zooming in video sequences
- Zoom-actuating pinion gear and lens release lever let you remove camera from back of housing while keeping lens and zoom gear attached
- Ergonomic design with 2 grooved, corrosion-resistant grips that offer improved handling and attachment points for optional lighting arms, such as Aquatica's Delta 3 line
- Grips are attached to tray, which can be easily removed by pushing a tab
- Standard, coated, Galileo-type eyepiece offers a full view of the camera's viewfinder

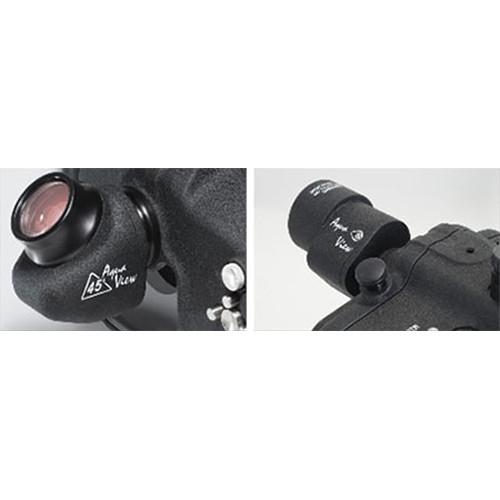

- Coated, straight 180° Aqua View Finder, also included, offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment
- Optional angled 45° Aqua View Finder offers a more comfortable viewing angle for long-term use, while providing all the benefits of the 180° version
- Construction Details
-
- Built for durability, especially resistance to corrosion, the housing is made in Canada from anodized aluminum alloy and then tested in harsh conditions
- Housing shell crafted using 5-axis computer-assisted machines
- Powder coating baked on at high temperature for extra protection
- Sacrificial zinc anodes safeguard vulnerable parts of housing, corroding themselves so housing will not be subjected to corrosion
- All push-buttons made from Type 304 stainless steel
- Lens Port System
-
- Ships without a required lens port
- Various interchangeable ports, including 9.25" Megadome, 8" and 6" domes, 4" Minidome, and flat macro options, are available for different lenses
- For full compatibility information, including ports, gears, and extensions, see Port Chart linked above
- External Strobe and Light Use
-
- Dual Nikonos connectors enable attachment of optional external strobes via sync cords

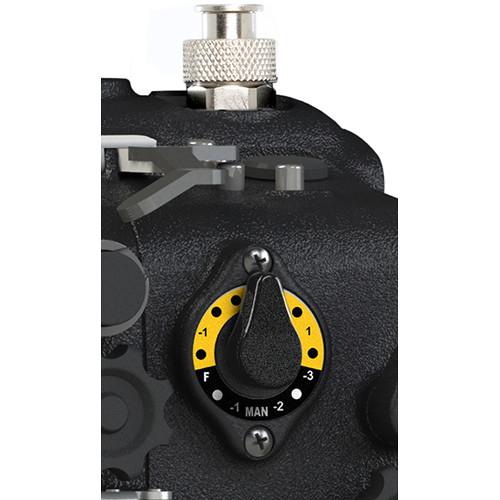

- Tweak your TTL lighting exposure or go fully manual with controls placed right at your fingertips
- Mounting
-
- Standard 1/4"-20 connectors on grips for lighting arms
- One 1/4"-20 mount on top for attaching optional focus/video light or other accessory
- Three more 1/4"-20s on bottom enable connection to optional bracket or tripod
- Two connection points for accessories such as HDMI monitors, remote controls, or vacuum monitoring systems
In the Box Aquatica A5DMkIV Underwater Housing for Canon EOS 5D Mark IV with Aqua VF & Vacuum Check System (Dual Nikonos Strobe Connectors) Aqua View Finder and Standard Viewfinder Vacuum Check System 2 x Grip Handles Set of O-Rings & Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica A5DMkIV Underwater Housing for Canon EOS 5D Mark IV with Aqua VF & Vacuum Check System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica A5DMkIV Specs | Depth Rating | 295' / 90 m, upgradeable to 426' / 130 m upon request | | Control Type | Mechanical push-buttons, grooved/knurled dials/knobs, and levers | | Controls | Access to virtually all camera functions | | Material of Construction | Body: Anodized aluminum alloy
Baked-on powder coating
Controls: Type 304 stainless steel | | Lens Port | Ships without a required lens port
Accepts various interchangeable ports to accommodate wide array of lenses
For full compatibility, see Port Chart linked in overview | | Buoyancy | Varies based on choice of lens and port | | External Strobe Connector | Dual Nikonos connectors enable attachment of optional external strobes via sync cords (not included) | | Viewfinder | Standard, coated, Galileo-type eyepiece offers a full view of the camera's viewfinder
Coated, straight 180° Aqua View Finder offers enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment (included)
Optional angled 45° Aqua View Finder provides same benefits and a more comfortable viewing angle | | Moisture Alarm | Yes, Surveyor audible and visible alarm/pressure sensor
Pre-installed vacuum check system also includes vacuum valve and extracting pump
Green LED lights up to indicate that vacuum has been created | | Mounting | 4 x 1/4"-20 mounts on grips for lighting arms
1 x 1/4"-20 mount on top for attaching optional focus/video light or other accessory
3 x 1/4"-20s on bottom for optional bracket or tripod
2 x connection points for other accessories, such as HDMI monitors, remote controls, or vacuum monitoring systems | | Dimensions | With Grips: 13.8 x 7.7 x 5.7" / 35 x 19.5 x 14.5 cm
Without Grips: 9.1 x 7.7 x 5.7" / 23 x 19.5 x 14.5 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 12.5 x 12.4 x 6.5" |
