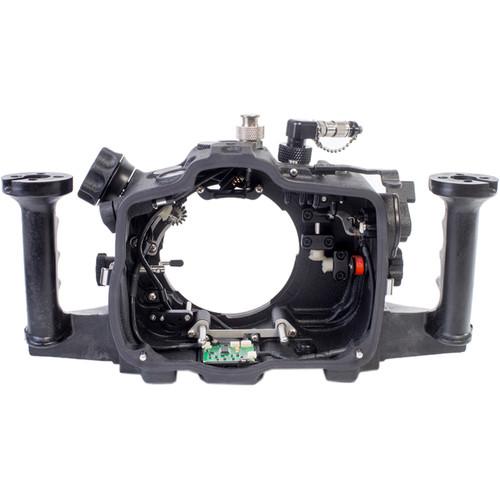

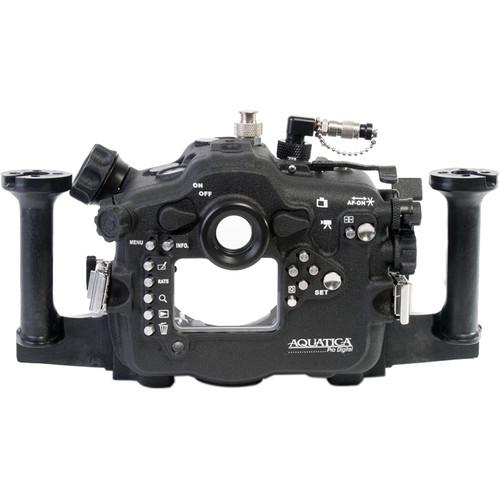

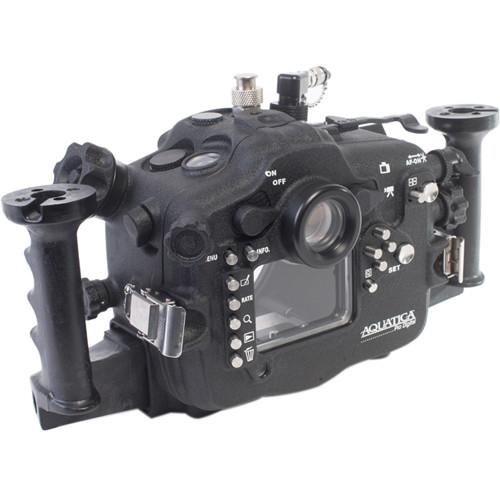

Product description Capture detailed still images and Full HD 1080p videos of parrot fish, moray eels, and coral reefs with Aquatica's A5DSR Pro Underwater Housing, which is designed for Canon's EOS 5Ds, 5Dsr, and 5D Mark III DSLR cameras. It has a depth rating of 295', which is upgradeable upon request to 426'. This version of the housing also includes a pre-installed vacuum check system, which allows you to confirm watertight integrity before the dive. An Ikelite TTL/manual connector enables the attachment of optional external strobes. The standard, coated eyepiece offers a full view of the camera's viewfinder.
The housing provides access to virtually all camera functions via mechanical controls. It also has an ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from an anodized, machined aluminum alloy and stainless steel.
The A5DSR ships without a required lens port, though various interchangeable ports are available for wide-angle, macro, and zoom lenses. For full compatibility, see the Type 1 Port Chartvudfbsqefrvfzqra and Type 4 Port Chart. - Waterproofing
-
- Depth rating: 295', upgradeable to 426'
- Surveyor moisture alarm alerts you in unlikely event of a breach in waterproof seal
- This version of housing includes pre-installed vacuum check system, which allows you to confirm watertight integrity before dive

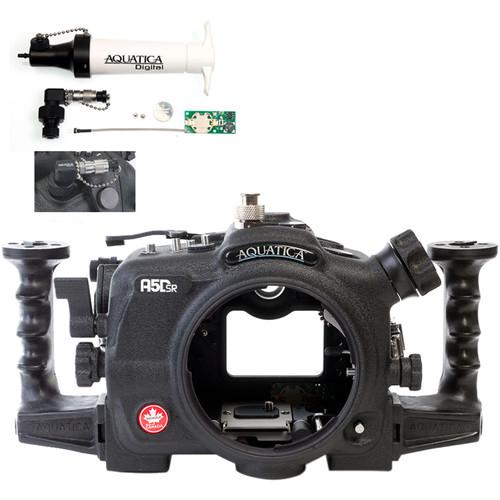

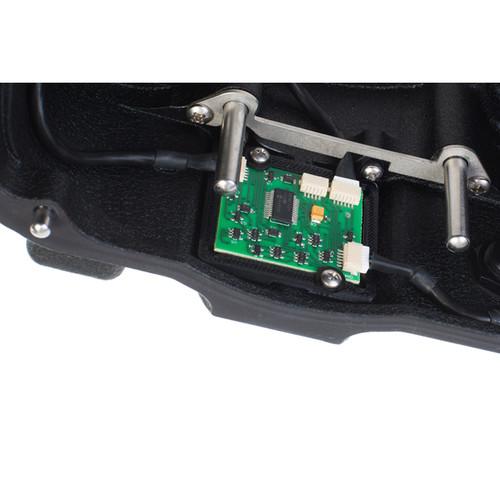

- Known as Vacuum Circuitry and Alarm Kit, the atmospheric pressure-sensitive system consists of a vacuum valve, an extracting pump, and a moisture alarm/pressure sensor with an on/off switch
- Valve and extracting pump contribute by ensuring that a solid vacuum is created inside the housing
- Controls, Handling, and Operation
-
- Provides easy access to virtually all camera functions, including live view toggle, set button, and multi-controller pad, via mechanical controls
- Controls for aperture, shutter, ISO, and strobe exposure are all accessible with your hands-on grips
- Control extender arm for ISO button
- Over-sized video recording button is located close to your thumb and features bright red coating for quick identification

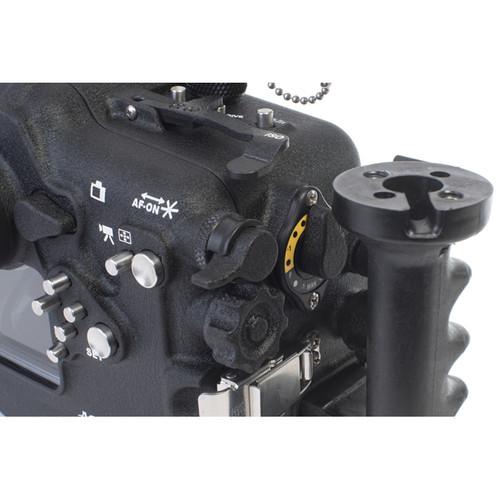

- AF-ON and star button access is provided with rotating collar that prevents ambient pressure from pushing it back towards housing
- Menu buttons angled to provide easier reach with left hand
- Prime lens focusing can be done via control knob on upper left side of housing

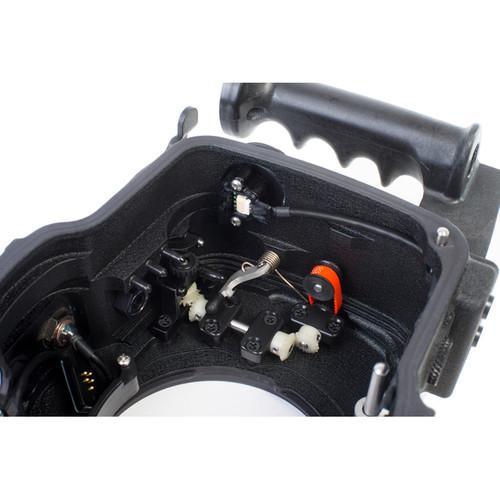

- Gear system incorporates smaller housing pinion gear and larger lens gear, resulting in smoother action while zooming in video sequences
- Zoom actuating pinion gear and the lens release lever pull out to allow you to remove camera from rear while still keeping a lens and zoom gear attached
- Knurled knobs and oversized controls for ease of use, even while wearing diving gloves
- Battery and memory card replacement are also simple tasks, thanks to tray that positions camera precisely in housing and can be disengaged with just a push on a tab
- Ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms
- Standard, coated eyepiece offers a full view of the camera's viewfinder
- Construction Details
-
- Built for durability, especially resistance to corrosion, the housing is made in Canada from anodized aluminum alloy and stainless steel, and tested in harsh conditions
- Housing shell crafted using 5-axis computer-assisted machines
- Powder coating baked on at high temperature for extra protection
- Sacrificial zinc anodes safeguard vulnerable parts of housing, corroding themselves so housing will not be subjected to corrosion
- All push buttons made from Type 304 stainless steel
- Lens Port System
-
- Ships without a required lens port
- Various interchangeable dome and flat ports are available for wide-angle, macro, and zoom lenses
- For full compatibility, see Type 1 Port Chart and Type 4 Port Chart linked above
- External Strobe and Light Use
-
- An Ikelite TTL/manual connector enables attachment of optional external strobes
- Tweak your TTL lighting exposure or go fully manual with controls placed right at your fingertips
- Strobe connectors are user-replaceable without any special tools
- Mounting
-
- Grips configured with 1/4"-20 female threaded mounts for optional lighting arms
- Extra mounting point on top of housing for attaching focus/video light or other accessory
- Three 1/4"-20 female threaded mounts on bottom enable connection to optional bracket, tray, or tripod
- 16mm & 1/2" bulkhead access holes allow for attachment of accessories, such as external monitors or triggering devices
In the Box Aquatica A5DSR Pro Underwater Housing for Canon 5Ds, 5Dsr, or 5D Mk III and Vacuum Check System ( Ikelite TTL/Manual Strobe Connector) Vacuum Circuitry and Alarm Kit with Valve and Pump for Select Underwater Housings 2 x Grip Handle Allen Key Spare Main O-Ring O-Ring Lubricant Limited 1-Year Warranty Compatibility chart PDF 840kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica A5DSR Pro Underwater Housing for Canon 5Ds, 5Dsr, or 5D Mk III and Vacuum Check System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20078-KT-VC Specs | Depth Rating | 295', upgradeable to 426' | | Control Type | Mechanical push buttons, knurled knobs, dials, and levers | | Controls | Access to virtually all camera functions, including power on/off, shutter, video recording, live view toggle, set button, multi-controller, main control dial, aperture, shutter, ISO, exposure, AF-ON, star button, menu, play, info, Q button, and delete | | Material of Construction | Housing: Anodized, machined aluminum alloy and stainless steel
Sacrificial anodes: Zinc
Push Buttons: Type 304 stainless steel | | Lens Port | Ships without a required lens port
Various interchangeable dome and flat ports are available for wide-angle, macro, and zoom lenses
For full compatibility, see Type 1 Port Chart and Type 4 Port Chart linked in Overview | | Buoyancy | Varies depending on choice of lens and port | | External Strobe Connector | 1x Ikelite TTL connector | | Viewfinder | Standard, coated eyepiece offers a full view of camera's viewfinder | | Moisture Alarm | Yes
Includes pre-installed vacuum check system, allowing you to confirm watertight integrity before dive
Vacuum Circuitry and Alarm Kit consists of a vacuum valve, an extracting pump, and moisture alarm/pressure sensor with on/off switch, and is sensitive to atmospheric pressure | | Mounting | Grips configured with 1/4"-20 female threaded mounts for optional lighting arms
Extra mounting point on top of housing
3x 1/4"-20 female threaded mounts on bottom for optional bracket, tray, or tripod
0.6" / 16 mm and 0.5" / 12.7 mm bulkhead access holes for accessories, such as external monitors or triggering devices | | Dimensions | With Grips: 13.8 x 7.7 x 5.7" / 35 x 19.5 x 14.5 cm
Without Grips: 9.1 x 7.7 x 5.7" / 23 x 19.5 x 14.5 cm | | Weight | Approx. 7.0 lb / 3.2 kg | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 10.7 x 8.4 x 8.3" |
