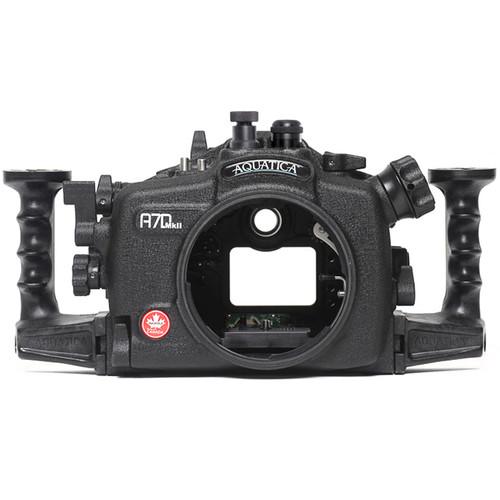

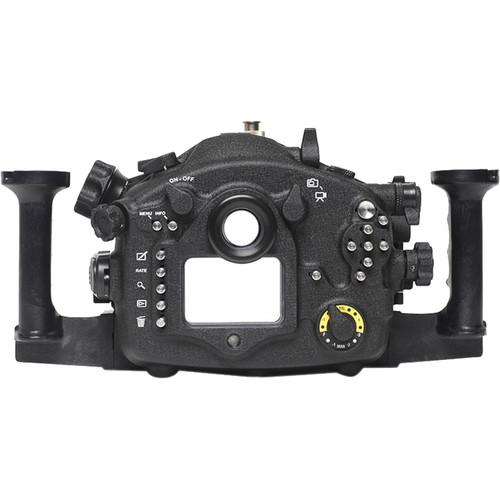

User Manual for Aquatica A7D Mk II Underwater Housing for Canon 7D Mark II Click to enlarge the picture
Contents of the user manual for the Aquatica A7D Mk II Underwater Housing
- Product category: Still Cameras & Housings Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Still Cameras & Housings
 |
User manual for the Aquatica A7D Mk II Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|

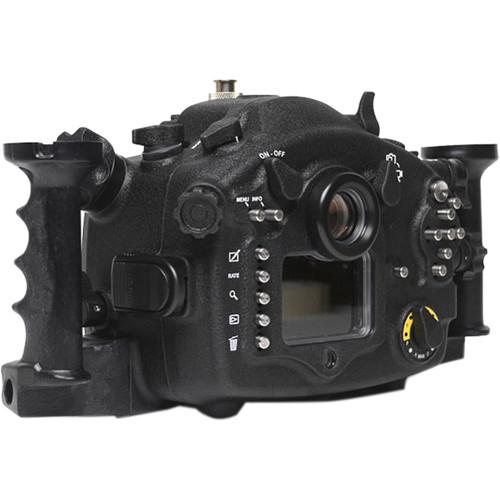

Product description Capture brilliant photos and Full HD 1080p video of parrot fish, moray eels, and coral reefs with your Canon EOS 7D Mark II DSLR, thanks to Aquatica's A7D Mk II Underwater Housing. It has a depth rating of 295', which is upgradeable to 426' for free upon request. Fiber-optic and Nikonos connectors enable the attachment of optional external strobes via fiber-optic cables and sync cords. The standard, coated eyepiece offers a full view of the camera's viewfinder.

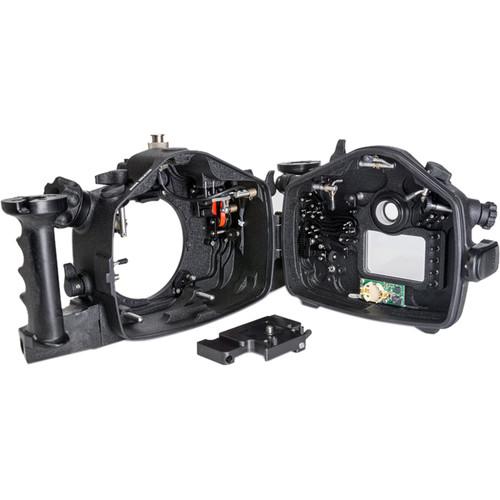

The housing provides access to all camera functions via mechanical controls. It also has an ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from anodized, machined aluminum and stainless steel.
The A7D Mk II ships without a required lens port, though various interchangeable ports are available for wide-angle, macro, and zoom lenses. For full compatibility details, see the Type 2fwyuqrsytqacsaweee and Type 4 Port Charts. - Waterproofing
-
- Depth rating of 295', which is upgradeable to 426' for free upon request
- Surveyor moisture alarm alerts you in the unlikely event of a breach in the waterproof seal
- Controls, Handling, and Operation
-

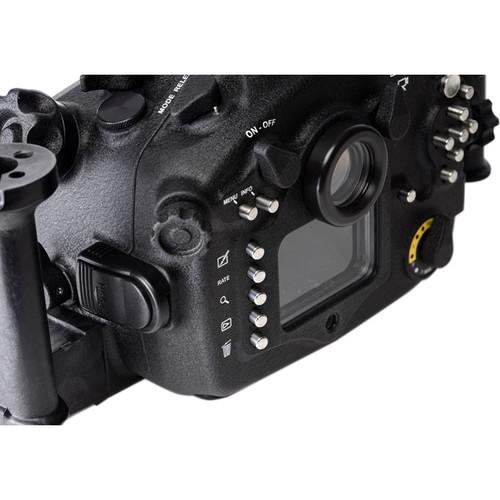

- Provides easy access to all camera functions via mechanical controls, including push-buttons, levers, and grooved dials/knobs, with special attention given to video controls for smooth operation

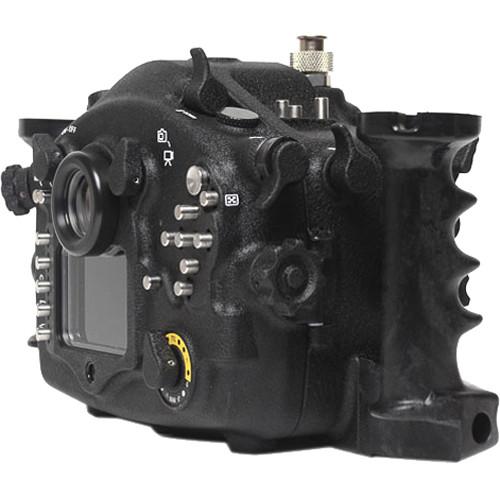

- Ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms
- Most controls are accessible with your hands on the grips
- Knobs are large for ease of use when wearing diving gloves
- Optional hydrophone records audio
- Standard, coated eyepiece offers a full view of the camera's viewfinder
- Construction Details
-

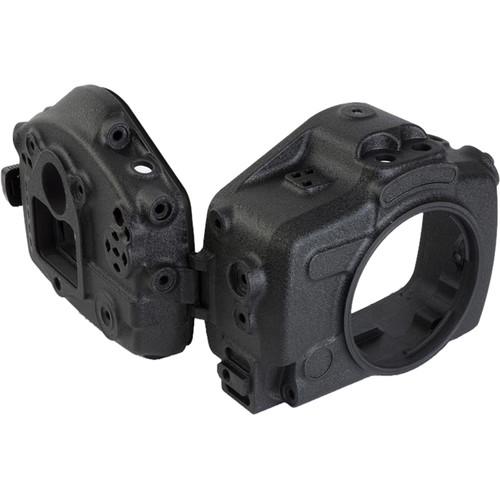

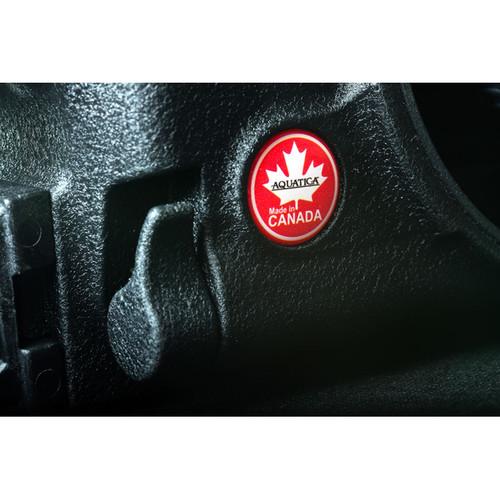

- Machined in Canada from an aluminum alloy that has been anodized for noteworthy resistance to corrosion
- Housing shell is crafted using 5-axis, computer-assisted machines for extreme precision
- Powder coating baked on at high temperature provides extra protection
- Tested in harsh conditions in Canada to ensure durability
- Controls are made of stainless steel
- Lens Port System
-
- Ships without a required lens port
- Accepts various, interchangeable dome and flat ports for wide-angle, macro, and zoom lenses
- For full compatibility, see the port charts linked above
- External Strobe and Light Use
-
- Fiber-optic and Nikonos connectors enable the attachment of optional external strobes via fiber-optic cables and sync cords

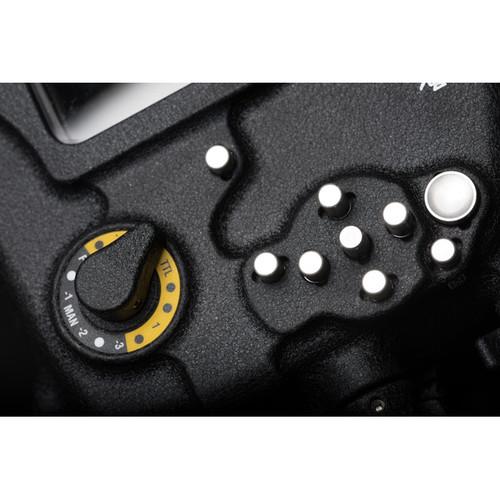

- Tweak your TTL lighting exposure or go fully manual with controls placed right at your fingertips
- Strobe connectors are user-replaceable without any special tools
- Mounting
-
- Grip handles feature 1/4"-20 female threaded mounts for connecting optional lighting arms, such as those from Aquatica's Technical Lighting Control line
- Extra mounting point on top of the housing allows for the attachment of a focus/video light or other accessory
- Three 1/4"-20 female threaded mounts on the bottom enable connection to an optional bracket, tray, or tripod
- Bulkhead access holes also allow for the attachment of accessories, such as external monitors or triggering devices
In the Box Aquatica A7D Mk II Underwater Housing for Canon 7D Mark II (Fiber-Optic & Nikonos Strobe Connectors) 2 x Grip Handles Allen Key Spare Main O-Ring Container of O-Ring Lubricant Limited 1-Year Warranty Compatibility chart PDF 840kbfwyuqrsytqacsaweee Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica A7D Mk II Underwater Housing for Canon 7D Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20077-HYB Specs | Depth Rating | 295' / 90 m, upgradeable to 426' / 130 m | | Control Type | Mechanical push-buttons, levers, and grooved dials/knobs | | Controls | Provide access to all camera functions | | Material of Construction | Housing: Anodized, machined aluminum alloy
Push-Button Controls: Stainless steel | | Lens Port | Ships without a required lens port
Various interchangeable dome and flat ports are available for wide-angle, macro, and zoom lenses
For full compatibility, see port charts linked in Overview | | Buoyancy | Varies depending on choice of lens and port | | External Strobe Connector | 1x Fiber-optic and 1x Nikonos connectors for use with optional fiber-optic cables and sync cords | | Viewfinder | Standard, coated eyepiece offers a full view of camera's viewfinder | | Moisture Alarm | Yes, audible alarm with red flashing LED | | Mounting | Grips configured with 1/4"-20 female threaded mounts for optional lighting arms
Extra mounting point on top of housing
3x 1/4"-20 female threaded mounts on bottom for optional bracket, tray, or tripod
Bulkhead access holes for accessories, such as external monitors or triggering devices | | Dimensions | With Grips: Approx. 13.8 x 7.7 x 5.7" / 35 x 19.5 x 14.5 cm
Without Grips: 9.1 x 7.7 x 5.7" / 23 x 19.5 x 14.5 cm | | Weight | Approx. 7.0 lb / 3.2 kg |
