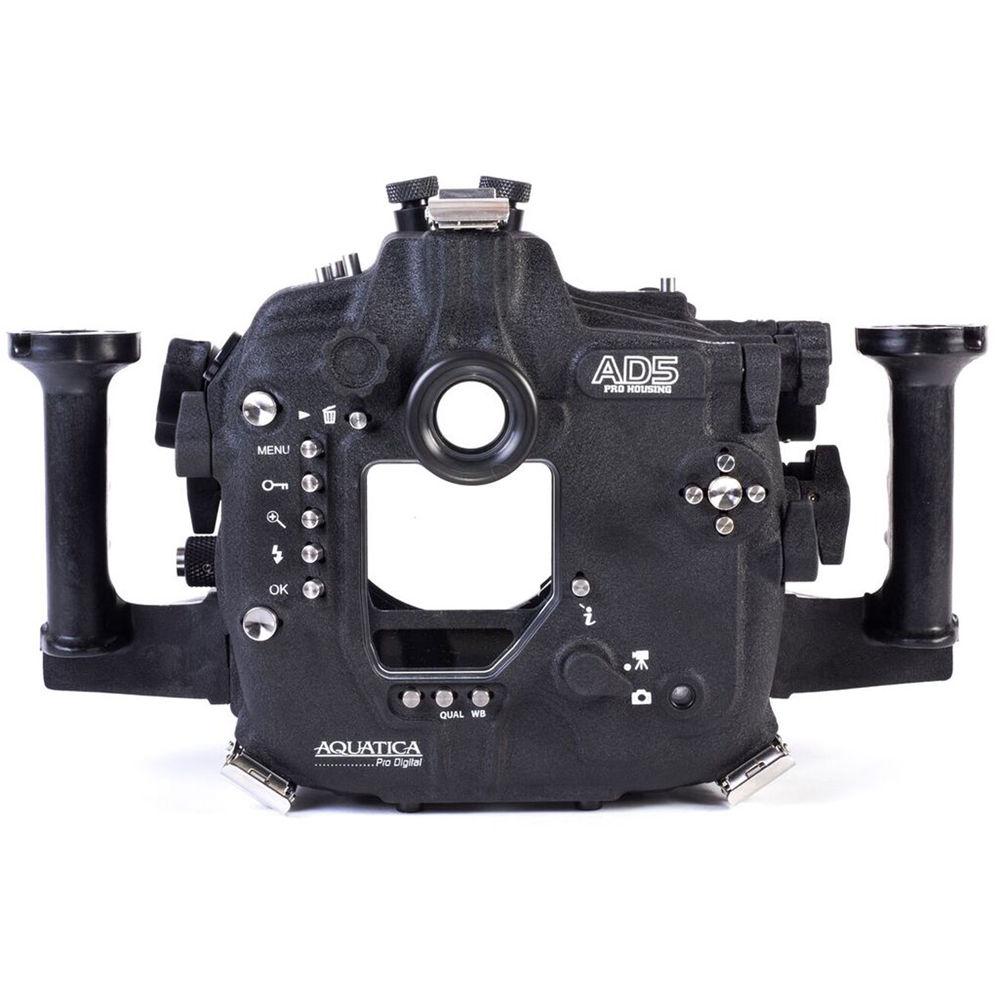

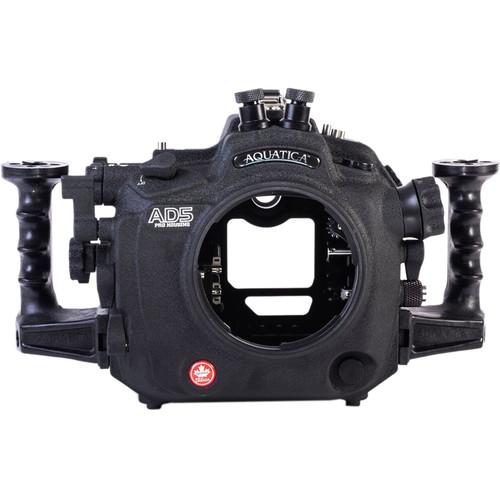

Product description Capture detailed still images and brilliant 4K video of pygmy seahorses, moray eels, coral reefs, and much more with Aquatica's AD5 Underwater Housing for the Nikon D5 DSLR camera. It has a depth rating of 295', which is upgradeable upon request to 426', and features a Surveyor moisture alarm and pressure sensor that will alert you in the unlikely event of a breach in the waterproof seal. Adding an optional vacuum valve and pump will complete the vacuum check system, allowing you to remove air from the housing and confirm watertight integrity before diving.
An Ikelite TTL/manual connector enables the attachment of optional external strobes via sync cords. The standard, coated eyepiece offers a full view of the camera's viewfinder, and the optional Aqua View Finder offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment. The housing provides access to virtually all camera functions via mechanical push-button, knob/dial, and lever controls. It also features an ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from anodized, machined aluminum and stainless steel.
The AD5 ships without a required lens port, and accepts various interchangeable ports to accommodate a wide array of lenses. For full compatibility information, see the Port Chart. - Waterproofing
-
- Depth rating of 295', which is upgradeable upon request to 426'
- Surveyor audible/visible moisture alarm and pressure sensor alerts you in unlikely event of a breach in waterproof seal
- Adding optional vacuum valve and pump will complete vacuum check system, allowing you to remove air/moisture from inside housing and confirm watertight integrity before diving
- Controls, Handling, and Operation
-
- Provides easy access to virtually all camera functions, including Fn1, Fn2, and Pv (depth of field preview), via mechanical push-button, knob/dial, and lever controls
- Knurled knobs and over-sized controls ensure problem-free operation, even when wearing thick gloves
- Left-hand control buttons angled and positioned for faster access to various functions

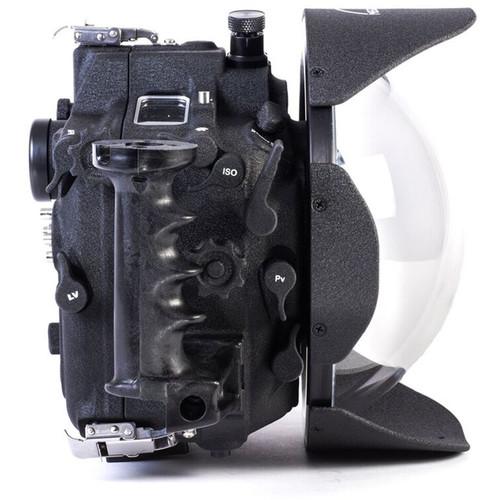

- Quick lever added for ISO access
- On right-hand side, Live View lever has been relocated closer to your thumb
- SET button on multi-controller pad is over-sized for easier operation
- Ergonomic design with 2 grooved, corrosion-resistant grips that offer improved handling and attachment points for optional lighting arms, such as Aquatica's Delta 3 line
- Standard, coated, Galileo-type eyepiece offers a full view of the camera's viewfinder
- Optional, coated straight 180° and angled 45° Aqua View Finders offer an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment

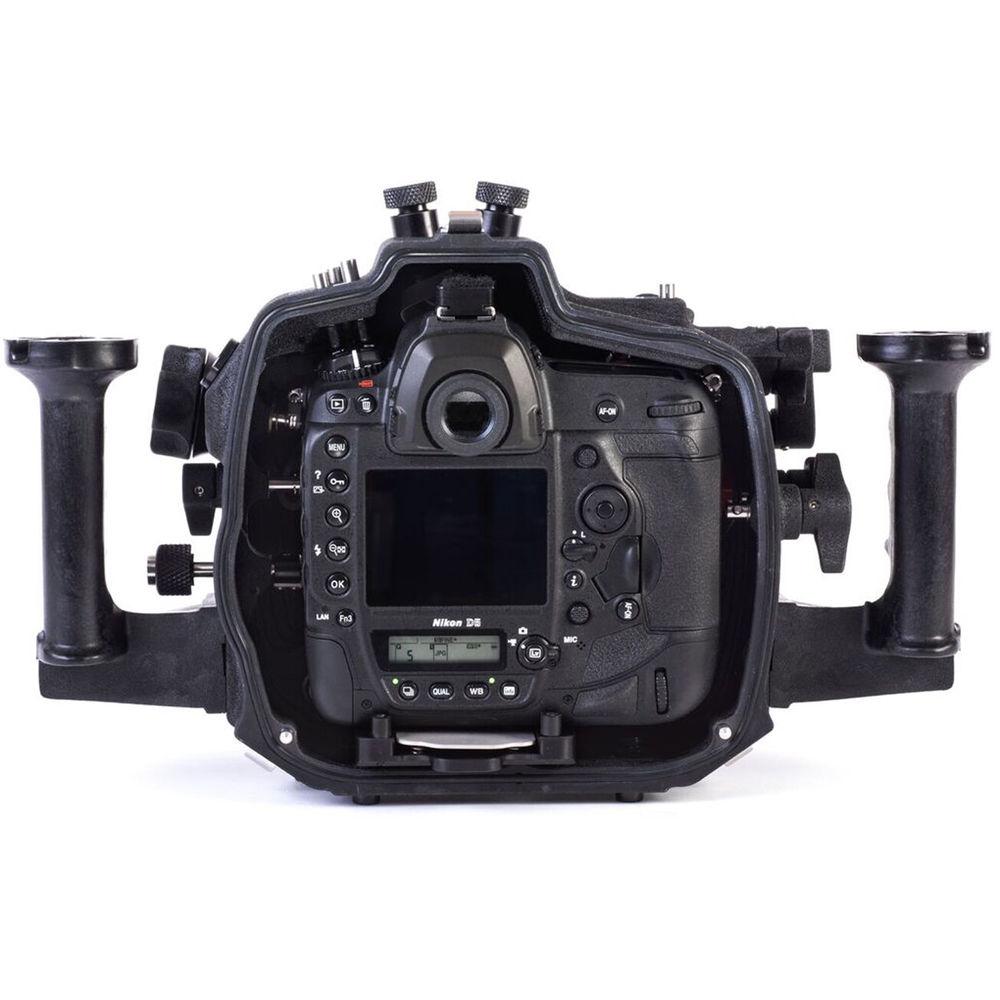

- Camera tray allows you to insert and remove camera using push tab
- Camera's LCD is angled for easier viewing
- Zoom actuating pinion gear and lens release lever can be pulled out, allowing camera to be removed from rear of housing while keeping lens and zoom gear attached
- Construction Details
-
- Built for durability, especially resistance to corrosion, the housing is made in Canada from anodized aluminum alloy and then tested in harsh conditions
- Housing shell crafted using 5-axis computer-assisted machines
- Powder coating baked on at high temperature for extra protection
- Sacrificial zinc anodes safeguard vulnerable parts of housing, corroding themselves so housing will not be subjected to corrosion
- All push-buttons made from Type 304 stainless steel
- Lens Port System
-
- Ships without a required lens port
- Various interchangeable ports, including 9.25" Megadome, 8" and 6" domes, 4" Minidome, and flat macro options, are available for different lenses
- For full compatibility information, including ports, gears, and extensions, see Port Chart linked above
- Housing features secure port locking system and easily accessible lens release button
- External Strobe and Light Use
-
- 5-pin Ikelite TTL/manual connector enables connection of optional, external strobes via sync cords
- Tweak your TTL lighting exposure or go fully manual with controls placed right at your fingertips
- Mounting
-
- Three bulkhead access holes accept numerous external accessories, including remote triggers, Water Wizard external radio transceiver housing, and external HDMI monitors
- Eight standard, threaded 1/4"-20 holes: one on top, three on bottom, four on grips
- Extra mounting point for a focus/video light or other accessory located on top of housing
In the Box Aquatica AD5 Underwater Housing for Nikon D5 (Ikelite TTL/Manual Strobe Connector) Standard Optical Viewfinder 2 x Grip Handles Set of O-Rings & Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica AD5 Underwater Housing for Nikon D5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica AD5 Specs | Depth Rating | 295' / 90 m, upgradeable to 426' / 130 m upon request | | Control Type | Mechanical push-buttons, grooved/knurled dials/knobs, and levers | | Controls | Access to virtually all camera functions | | Material of Construction | Body: Anodized aluminum alloy
Baked-on powder coating
Controls and Latches: Type 304 stainless steel | | Lens Port | Ships without a required lens port
Accepts various interchangeable ports to accommodate wide array of lenses
For full compatibility, see Port Chart linked in Overview | | Buoyancy | Varies based on choice of lens and port | | External Strobe Connector | 5-pin Ikelite TTL/manual connector enables attachment of optional external strobes via sync cords (not included) | | Viewfinder | Standard, coated, Galileo-type eyepiece offers a full view of the camera's viewfinder
Optional straight 180° and angled 45° coated Aqua View Finders offer enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment | | Moisture Alarm | Yes, Surveyor audible and visible alarm/pressure sensor
Optional vacuum valve and extracting pump can be added to complete vacuum check system | | Mounting | 3x bulkhead access holes for remote triggers, radio transceiver housings, HDMI monitors, etc.
8x standard, threaded 1/4"-20 holes
1x mounting point on top for focus/video light or other accessory | | Dimensions | With Grips: 14.6 x 9.1 x 5.9" / 37.2 x 23.2 x 14.9 cm
Without Grips: 10.6 x 9.1 x 5.9" / 26.8 x 23.2 x 14.9 cm | | Weight | With Grips: 10.8 lb / 4.9 kg
Without Grips: 10.4 lb / 4.7 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 12.4 x 12.2 x 6.9" |
