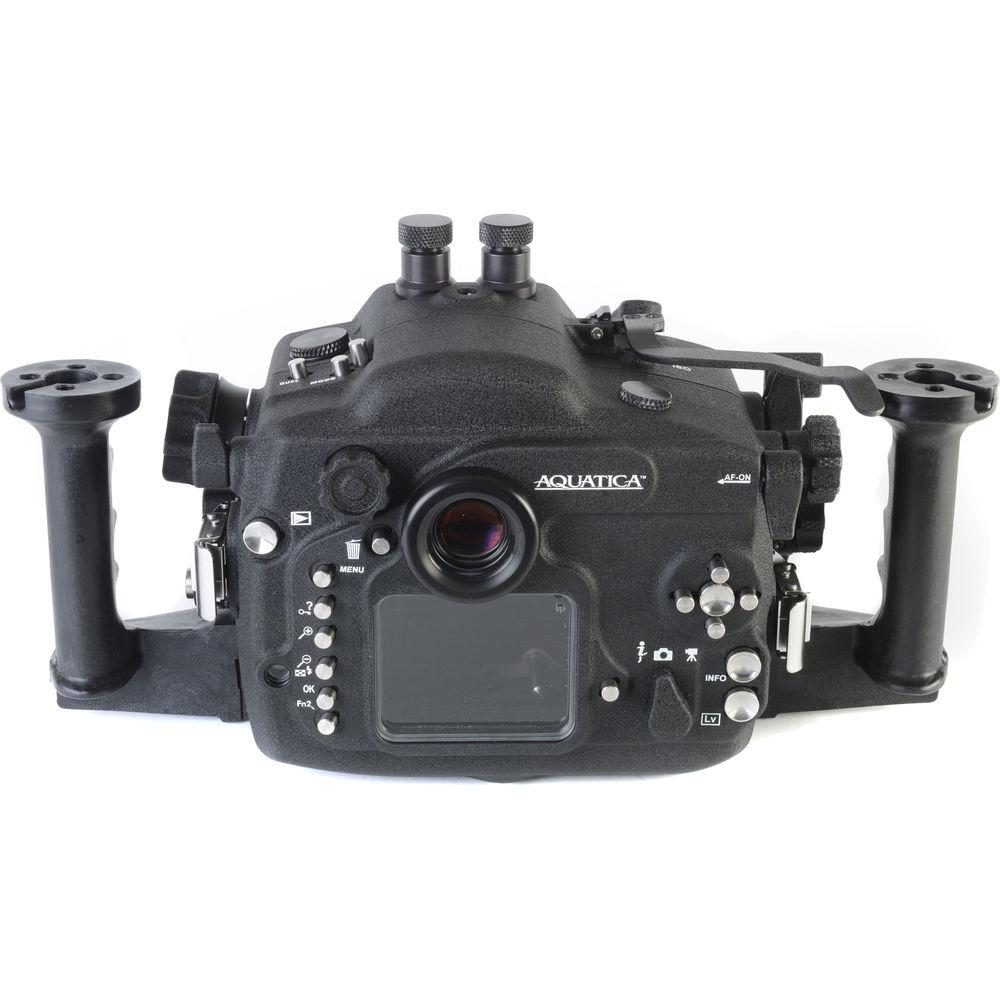

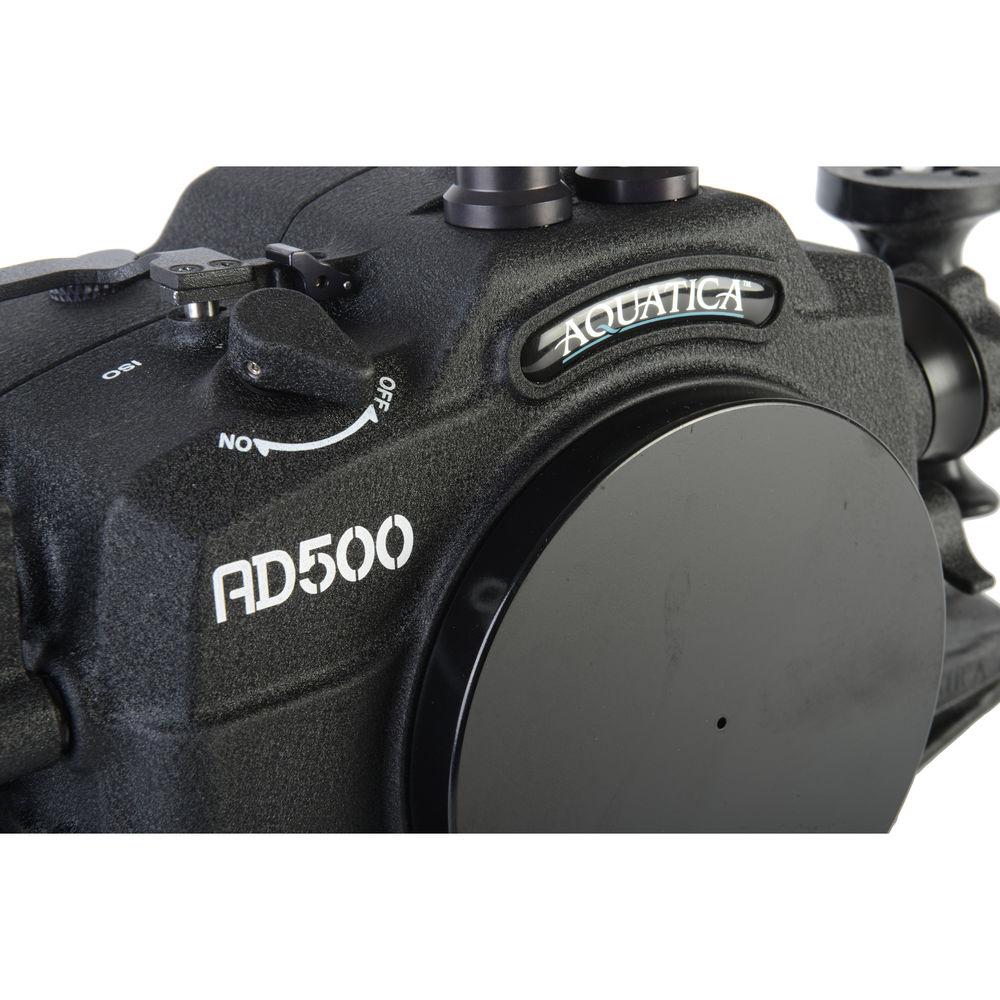

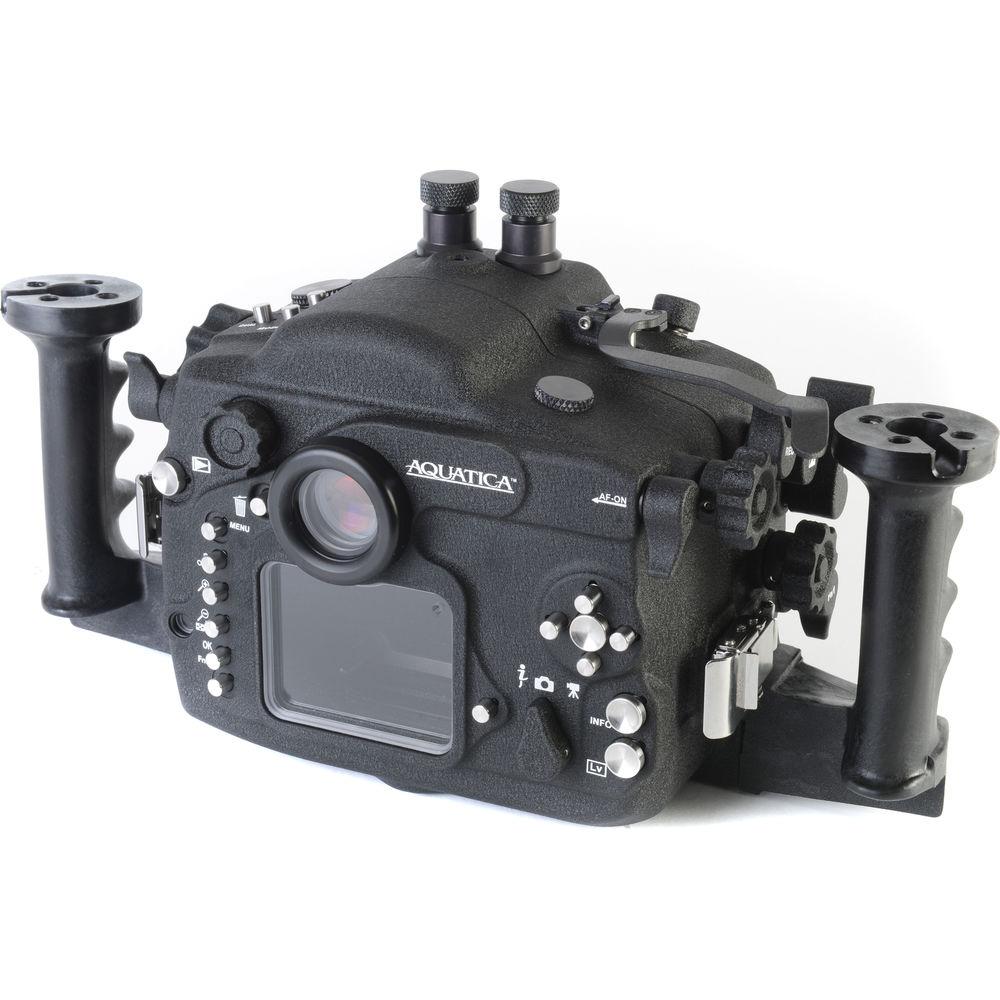

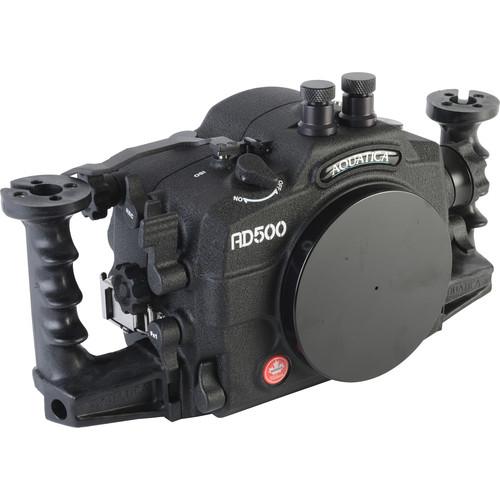

Product description Capture brilliant photos and 4K UHD video of parrot fish, moray eels, and coral reefs with your Nikon D500 DSLR camera in Aquatica's AD500 Underwater Housing. The enclosure has a depth rating of 295', which can be upgraded upon request to 426'. An Ikelite TTL/manual connector enables the attachment of optional external strobes via sync cords. The standard, coated eyepiece offers a full view of the camera's viewfinder, and the coated Aqua View Finder, also included, offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment.
The housing provides access to virtually all camera functions via mechanical push-button, knob/dial, and lever controls. It also features an ergonomic design with two grips that offer improved handling and attachment points for optional lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from an anodized, machined aluminum alloy and stainless steel.
The AD500 ships without a required lens port, and various interchangeable ports are available to accommodate a wide array of Nikon lenses. For full compatibility information, see the Port Chart.vsbrzdqaxdsbcrxdefv - Waterproofing
-
- Depth rating: 295', upgradeable to 426' upon request at no extra charge
- Surveyor moisture alarm alerts you in the unlikely event of a breach in the waterproof seal
- Controls, Handling, and Operation
-

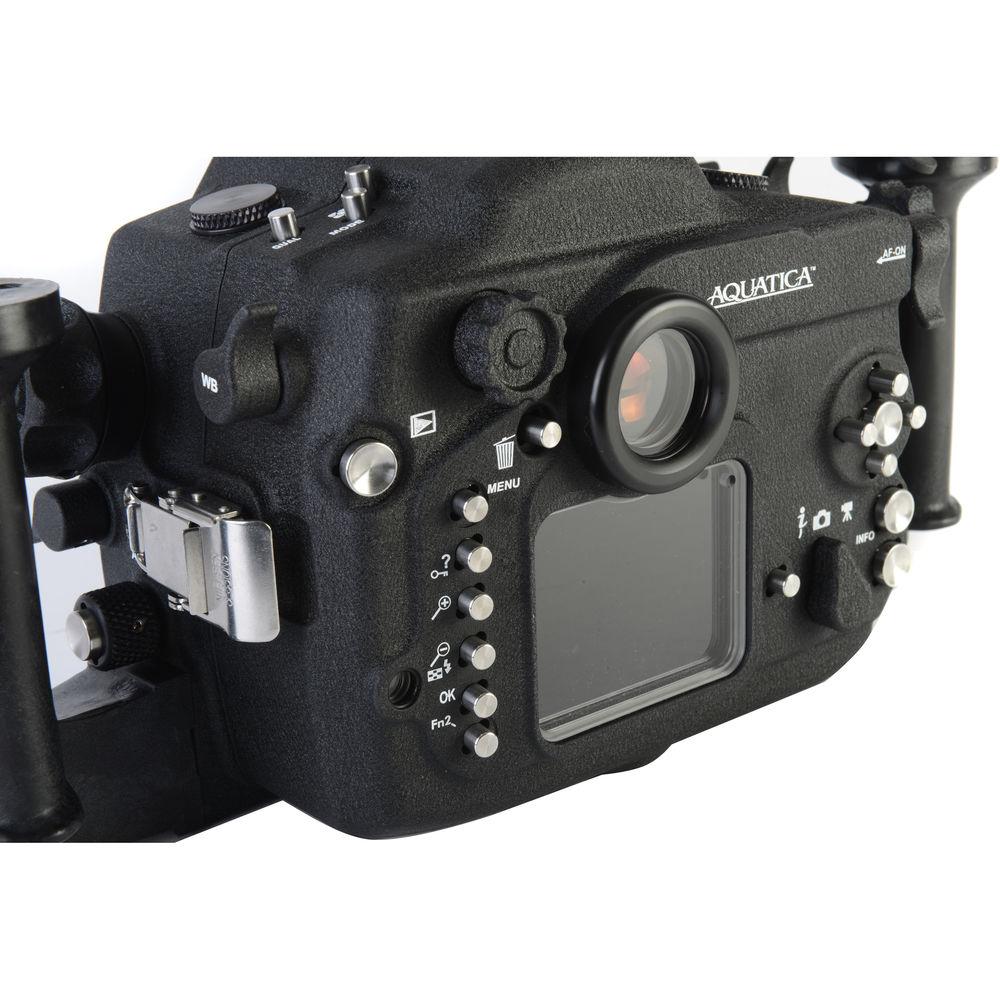

- Provides easy access to virtually all camera functions via mechanical push-button, knob/dial, and lever controls
- Vital controls are placed right at your fingertips where you need them most, allowing for quick and easy access
- ISO lever is positioned near your thumb
- Exposure compensation lever is easily accessible

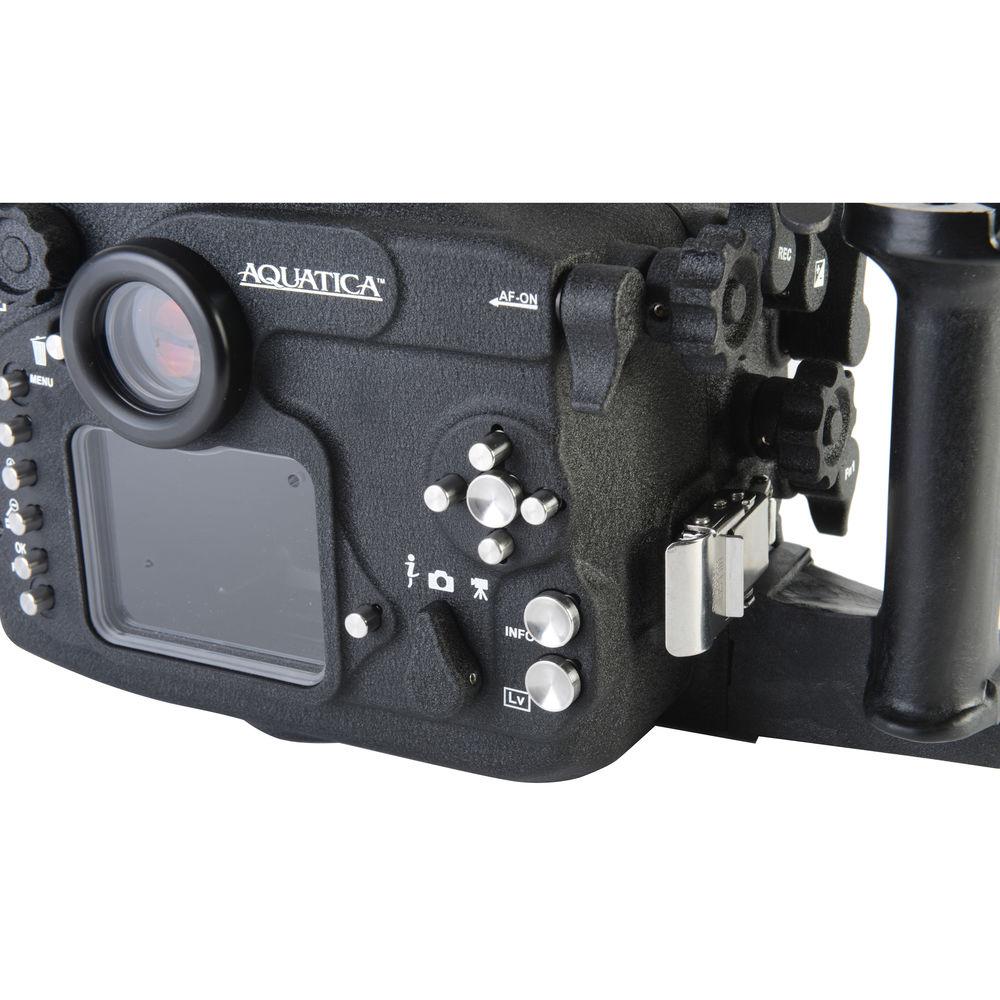

- Control pad is accessible via the set of extended controls close to your hand, and the same goes for the AF-ON lever with its wide range of options available through the camera's CSM menu
- The Fn1 lever on the front and the Fn2 button on the rear also provide access to a range of CSM features

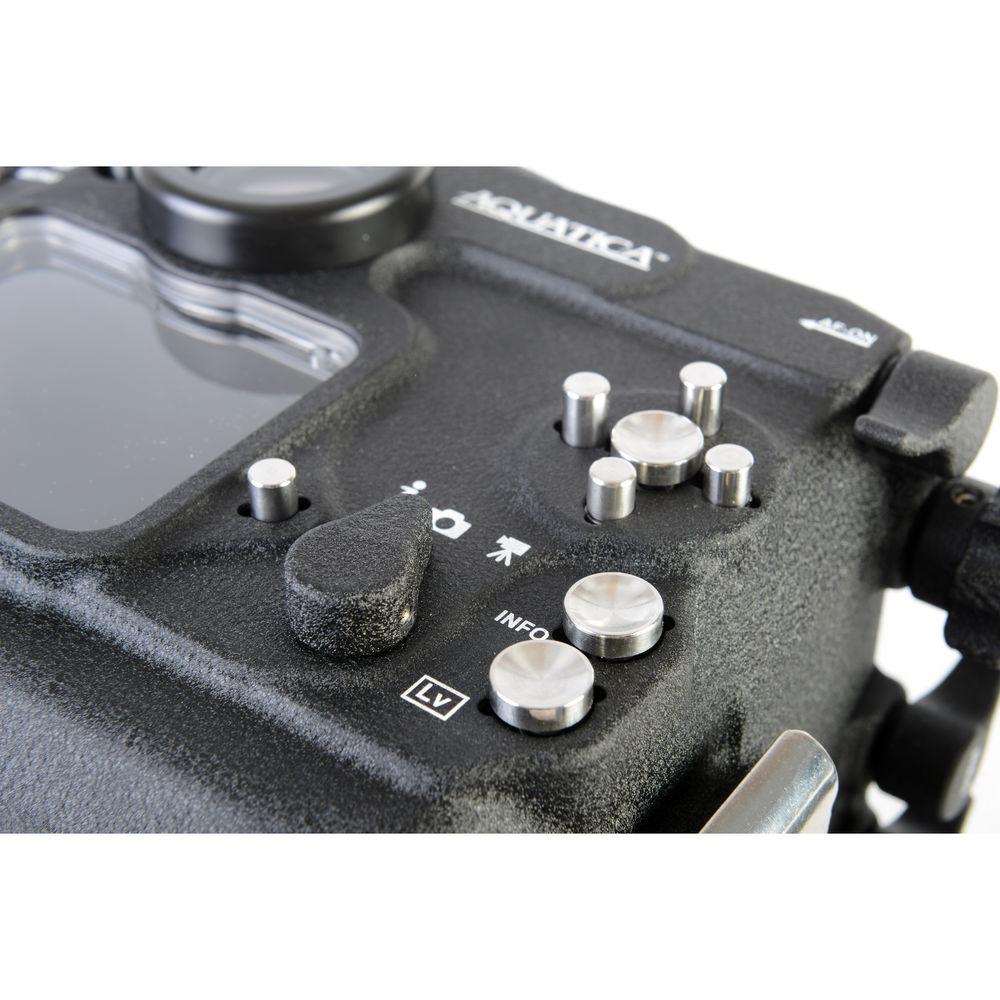

- Two over-sized and conveniently placed buttons enable fast activation of the info feature and Live View control

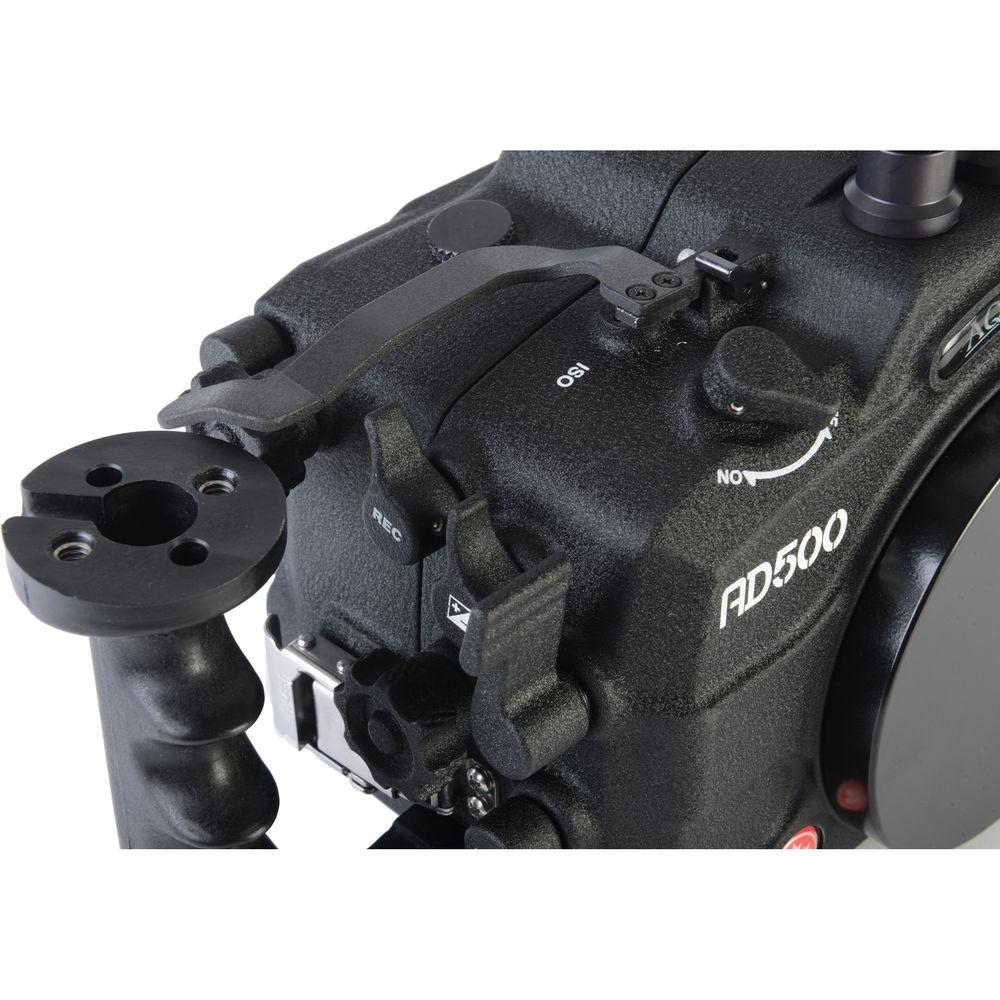

- Recording is as simple as pressing a dedicated lever placed strategically close to your thumb
- Housing has secure port-locking system and lens-release button
- Knobs/dials are knurled and grooved, while other controls are over-sized, for ease of use when wearing diving gloves
- Two ergonomic grips afford improved handling and provide attachment points for optional lighting arms, such as Aquatica's Delta 3 models
- Quick-release tray allows for precise camera mounting, positioning the rear LCD at a slight angle for easier viewing
- Standard, coated eyepiece offers a full view of the camera's viewfinder
- Straight 180° Coated Aqua View Finder, also included, offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment
- Optional Aqua View 45° optical finder offers a more comfortable viewing angle and enhances your view, giving you 100% coverage, corner-to-corner sharpness, and dioptric adjustment
- Construction Details
-
- Built for durability, especially resistance to corrosion, the housing is made in Canada from an anodized 6061 T6 aluminum alloy and stainless steel
- Anodizing meets MIL-A-8625 Type 2, Class 2 specification
- Housing shell is crafted using 5-axis, computer-assisted machines
- Black polyester powder coating is baked on at a high temperature for extra protection (meets A.A.M.A 2603-98 specification)
- All push-buttons and control shafts are made from Type 304 stainless steel
- Stainless steel latches are equipped with safety tabs for extra security
- Housing has been tested in harsh conditions in Canada
- Lens Port System
-
- Ships without a required lens port
- Various interchangeable dome and flat ports are available for wide-angle, macro, and zoom lenses
- For full compatibility details and info on extensions and other accessories, see the Port Chart linked above
- Flexible, modular system of ports, extension rings, and accessories allows for adaptation to continually evolving lenses
- 4", 6", 8" and 9.25" domes for wide-angle lenses have you covered when shooting wide close-ups, over-under shots, and other images that demand an expansive angle of coverage
- Mini Macro port is a great choice for extreme, tight, and detailed close-ups
- Total of 14 locking extension rings range in length from 0.6 to 3.8"
- External Strobe and Light Use
-
- An Ikelite TTL/manual connector enables attachment of optional external strobes via sync cords
- Tweak your TTL lighting exposure or go fully manual with controls placed right at your fingertips
- Strobe connectors are user-replaceable without any special tools
- Mounting
-
- Each grip is configured with two 1/4"-20 female threaded mounts for optional lighting arms
- Extra 1/4"-20 mounting point on top of the housing enables the attachment of a focus/video light or other accessory
- Three 1/4"-20 female threaded mounts on the bottom enable the connection of an optional bracket, tray, or tripod
- 16mm & 1/2" bulkhead access holes allow for the attachment of accessories, such as external monitors or triggering devices
In the Box Aquatica AD500 Underwater Housing for Nikon D500 with Aqua VF (Ikelite TTL/Manual Strobe Connector) Aqua View Finder and Standard Viewfinder 2 x Grip Handles O-Ring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica AD500 Underwater Housing for Nikon D500 with Aqua VF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20080-KT-VF Specs | Depth Rating | 295' / 90 m, upgradeable to 426' / 130 m upon request | | Control Type | Mechanical push-buttons, grooved/knurled dials/knobs, and levers | | Controls | Access to virtually all camera functions, including power on/off, shutter, video recording, live view, ISO, exposure compensation, control dial, AF-ON lever, Fn1 lever, Fn2 button, info, menu | | Material of Construction | Body: Anodized 6061 T6 aluminum alloy
Control Shafts, Push-Buttons, and Latches: Type 304 stainless steel
Anodizing meets MIL-A-8625 Type 2, Class 2 specification
Protective, baked-on, black polyester powder coating meets A.A.M.A 2603-98 specification | | Lens Port | Ships without a required lens port
Various interchangeable dome and flat ports are available for wide-angle, macro, and zoom lenses
For full compatibility and info on extensions and other accessories, see Port Chart linked in Overview | | Buoyancy | Varies based on choice of lens and port | | External Strobe Connector | An Ikelite TTL/manual connector enables attachment of optional external strobes via sync cords | | Viewfinder | Standard, coated eyepiece offering full view of camera's viewfinder | | Moisture Alarm | Yes | | Mounting | 2x 1/4"-20 female threaded mounts for lighting arms on each grip
Extra 1/4"-20 mounting point on top for additional accessory
3x 1/4"-20 female threaded mounts on bottom to connect to bracket, tray, or tripod
16 mm and 1/2" bulkhead access holes for other accessories, e.g., external monitors or triggers | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
