Product description Capture brilliant photos and Full HD 1080p video of parrot fish, moray eels, and coral reefs with Aquatica's AD800 Underwater Housing for the Nikon D800 or D800E digital SLR camera. It has a depth rating of 295', which is upgradeable upon request to 426', and features a Surveyor moisture alarm and pressure sensor that will alert you in the unlikely event of a breach in the waterproof seal. This version of the housing also includes a pre-installed vacuum check system, which allows you to confirm watertight integrity before the dive.
Dual Nikonos connectors with 5 active pins enable the attachment of optional external strobes via sync cords. The standard, coated eyepiece offers a full view of the camera's OVF, and the coated Aqua View Finder, also included, offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment.

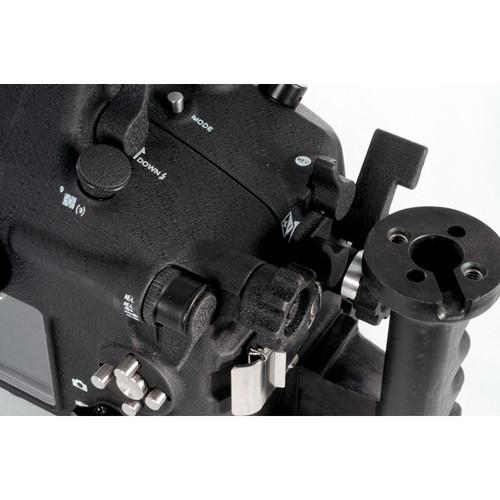

The housing provides access to virtually all camera functions via mechanical controls. Thanks to a unique toggle lever, the AD800 is the first of its kind from Aquatica to offer access to the Fn and DOF preview buttons. Various custom functions can be assigned to each of these buttons. The housing also has dual ergonomic grips enabling smooth underwater handling and the attachment of lighting arms. It is made from an anodized, powder-coated aluminum alloy and stainless steel for noteworthy durability, and is machined on advanced, 5-axis, computer-assisted machines for extreme precision.
The AD800 ships without a required lens port, and accepts various interchangeable ports for wide-angle, zoom, and macro lenses. See the Port Chart for complete compatibility information. - Waterproofing
-
- Depth rating: 295', upgradeable upon request to 426'
- This version of the housing also includes a vacuum check system, known as the Vacuum Circuitry and Alarm Kit, pre-installed at the factory

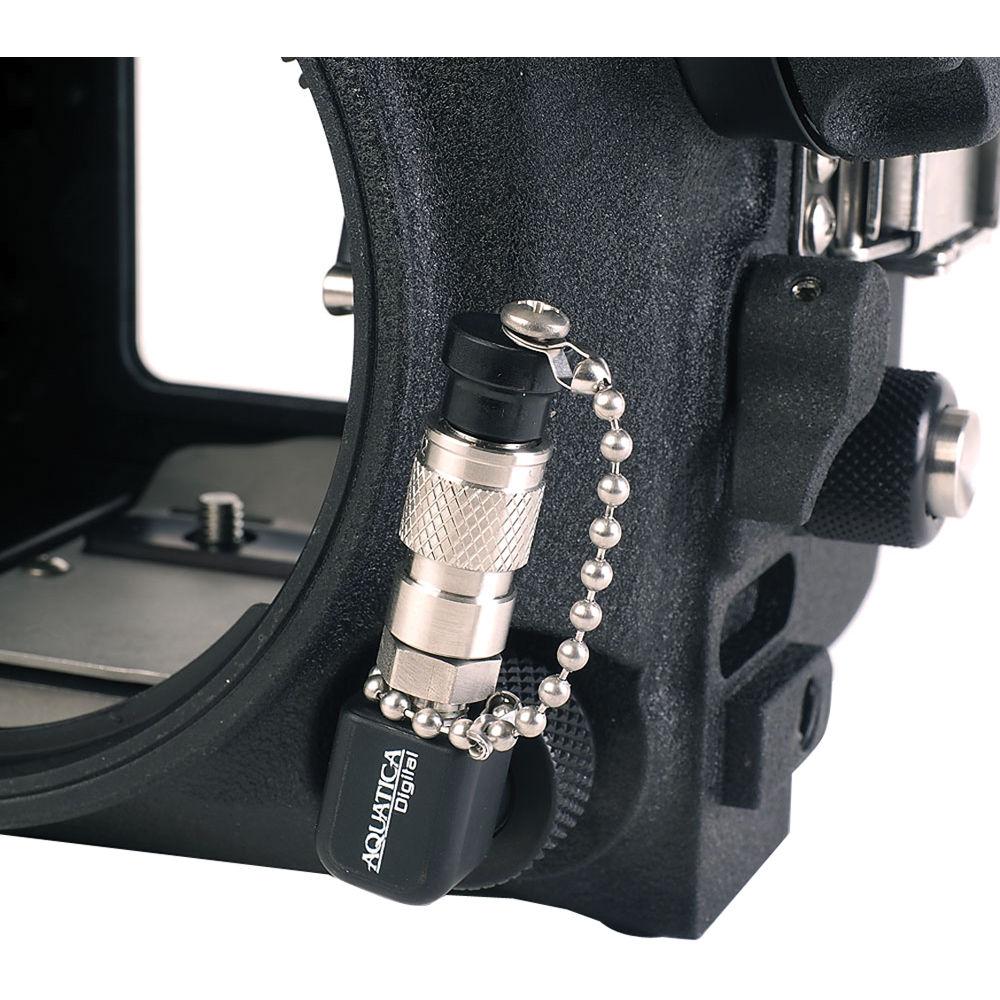

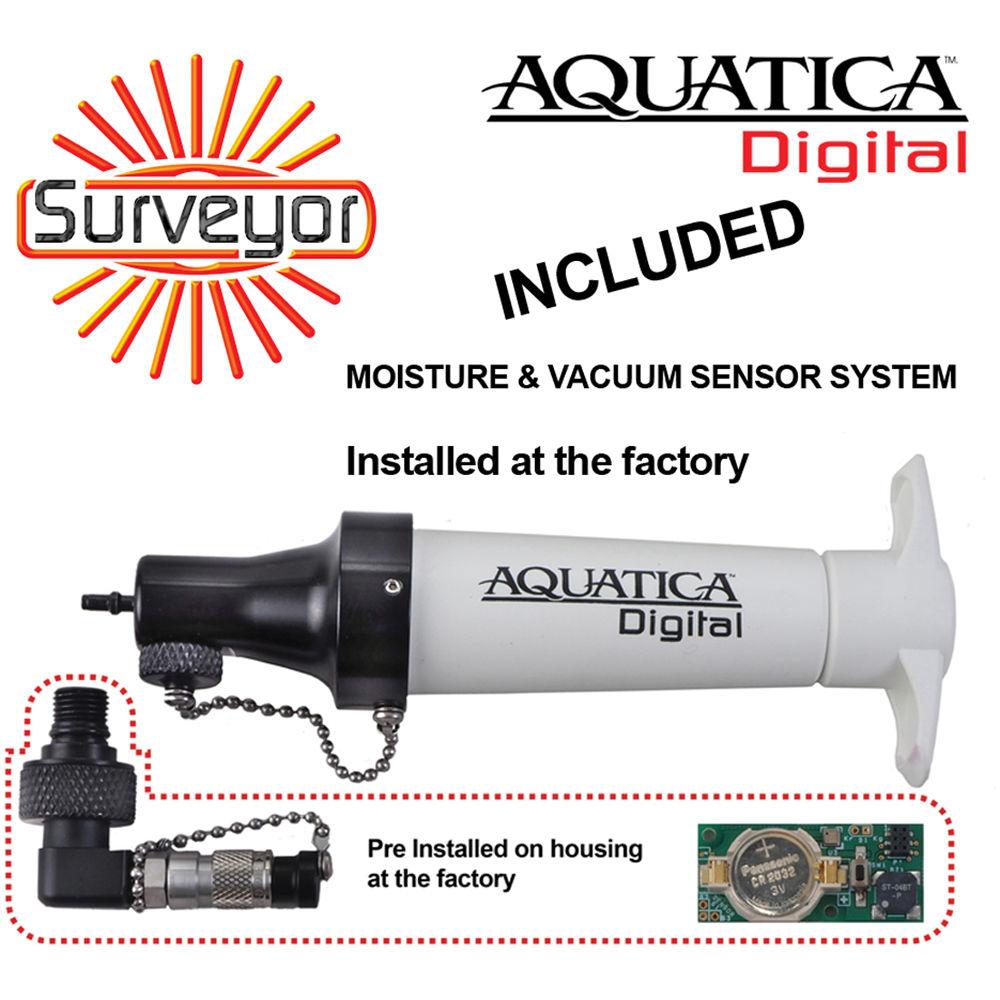

- System consists of a vacuum valve, an extracting pump, and a moisture alarm/atmospheric pressure sensor
- Allows you to confirm watertight integrity before the dive, and alerts you in the unlikely event of a breach in the waterproof seal
- Valve and extracting pump ensure that a solid vacuum is created inside the housing
- Controls, Handling, and Operation
-
- Provides access to virtually all camera functions via mechanical controls
- Knurled knobs and over-sized controls allow for easy operation in any situation

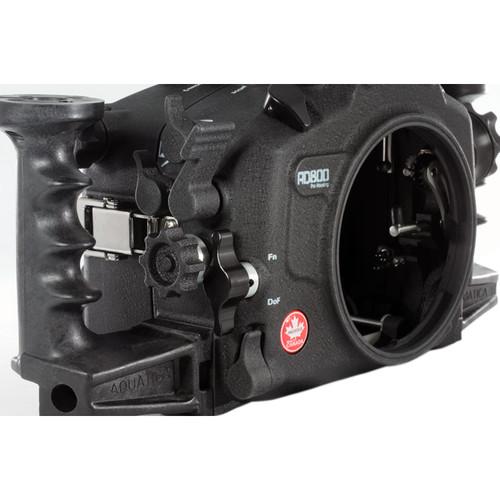

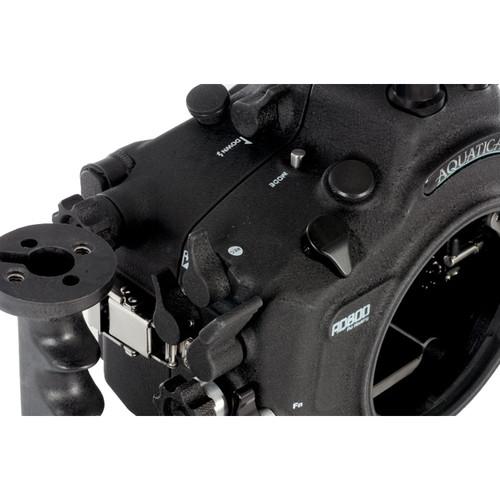

- Thanks to a unique toggle lever, the AD800 housing is the first of its kind from Aquatica to offer access to the Fn and DOF preview buttons
- You can assign the following custom functions to the Depth of Field button: Power aperture (close), index marking in video mode, and view photo shooting info.
- To the Fn button, you may assign these custom functions: Select image area using the main command dial, convert to depth of field preview, FV lock (lock the flash value), AE/AF lock, AE lock only, AE lock (reset on release), AE lock (hold), AF lock only, AF-ON, flash off, power aperture (open), index marking in video mode, and view photo shooting info

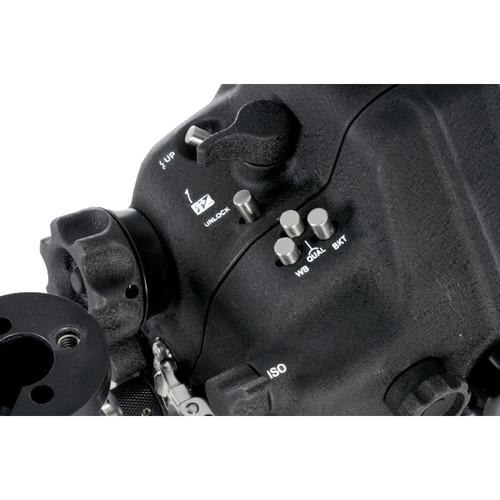

- The housing features an internal flash up/flash down function, as well as a quick-access ISO lever that is thumb-activated
- AF-L/AE-L and AF-ON button access is now provided by a combined lever and rotating collar that prevent ambient pressure from pushing it back towards the housing

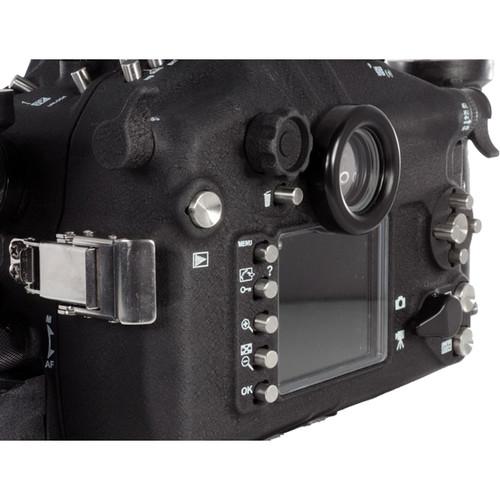

- Menu buttons have been angled to provide better access with your left hand

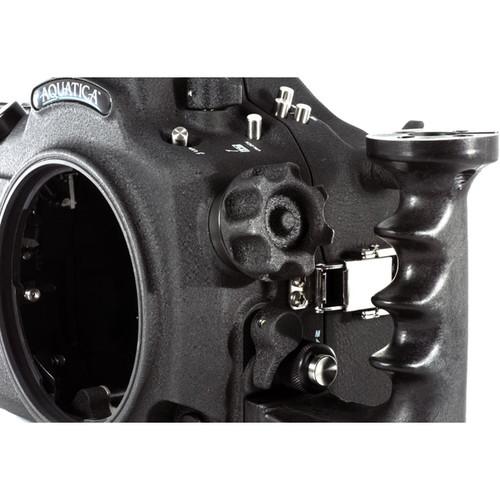

- The housing's lens gear system has a smaller housing pinion and a larger lens gear, allowing for smoother action while zooming in during a video sequence
- On the left-hand side of the housing, the buttons and mode selector control are angled and positioned for quicker access to the various functions
- On the right-hand side, the video recording lever has been relocated closer to your index finger

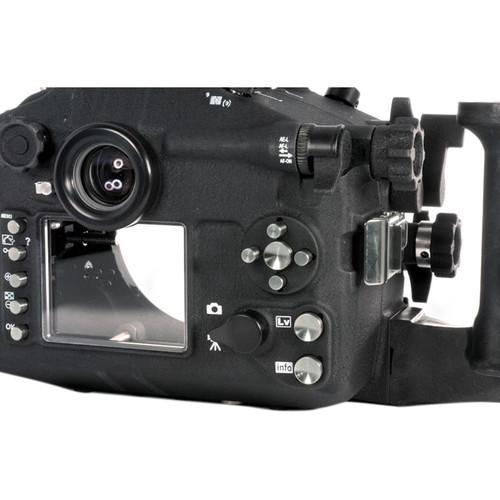

- The Live View toggle remains within easy reach
- The multi-controller pad found on the Nikon D800 is accessible, and its SET button has been enlarged
- Construction Details
-
- Carefully crafted from an aluminum alloy, which is anodized to North American military specifications and then powder-coated for impressive and reliable resistance to corrosion
- Also has corrosion-resistant zinc anodes, which protect particularly sensitive parts
- Housing is made on sophisticated, 5-axis, computer-assisted machines for a high degree of precision
- Type 304 stainless steel controls--the same steel used in the aerospace industry--are robust and highly resistant to corrosion
- A redesigned camera tray allows for precise placement of camera in housing, and is easily disengaged by a simple push on a tab
- The zoom-actuating pinion gear and lens-release lever can be pulled out to allow you to remove the camera from the back, while keeping a lens and zoom gear attached
- Housing is built in Canada, so it has endured long-term testing in one of the world's most rugged diving environments
- Lens Port System
-
- Ships without required lens port
- Accepts interchangeable ports for various wide-angle, zoom, and macro lenses
- Choose from four different dome ports and a macro port
- See the Port Chart linked above for complete details
- External Strobe Use
-
- Two Nikonos bulkhead connectors, each with 5 active pins, enable attachment of optional, external strobes for TTL or manual flash exposure
- TTL is possible with an optional third-party converter
- Bulkhead connectors are compatible with some of the most popular strobes available, which can be attached via Nikonos-type sync cords and/or a TTL converter
- Mounting
-
- Three access holes are provided to accept various external accessories, such as Aquatica's remote trigger (# 19304), external monitors, and more
- Both hand grips have holes ready to accept the mounting bracket of Aquatica's TLC lighting arm system, or various other lighting arms
- An extra mounting point for a focus/video light or other accessories is on top of the housing
- Three additional mounting points are provided on the bottom for various brackets, tripods, and other support systems
- Additional Features
-
- Equipped with both the standard viewfinder and the Aqua View Finder
- Standard is a coated, Galileo-type eyepiece that provides considerable brightness and a full view of the camera's OVF
- Aqua VF provides an enlarged, enhanced image with 100% coverage, corner-to-corner sharpness, and dioptric adjustment

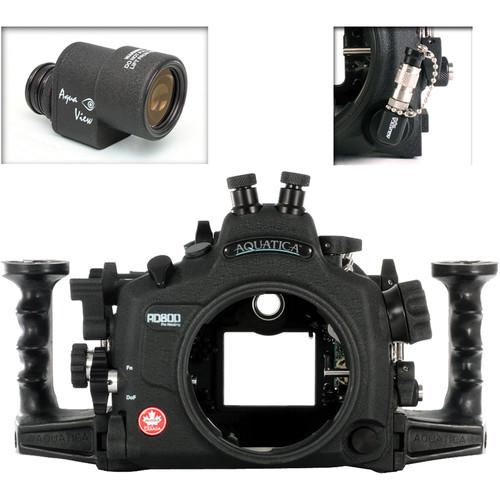

In the Box Aquatica AD800 Underwater Housing for Nikon D800 or D800E with Aqua VF and Vacuum Check System (Dual Nikonos Strobe Connectors) Aqua View Finder Vacuum Circuitry and Alarm Kit with Valve and Pump for Select Underwater Housings rquqtzdzzbstx 2 x Grip Handles Set of O-Rings & Lubricant Limited 1-Year Warranty Compatibility chart PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica AD800 Underwater Housing for Nikon D800 or D800E with Aqua VF and Vacuum Check System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20070-NK-VF-VC Specs | Depth Rating | 295' (90 m)
Upgradeable to 426' (130 m) | | Control Type | Mechanical | | Controls | 2x Grip handles
Shutter release lever
Sub-command dial knob
Main command dial knob
Movie recording actuation lever
DoF (Depth of Field) & Fn (Function) toggle lever
Power switch/illuminator lever
Internal flash-down lever
Flash mode and compensation lever
Internal flash-up button
Focus/zoom pinion gear release disk
Focus/zoom Control knob and pinion gear
Lens-release knob and lever
AF/MF selector
Focus mode selector fork
AF mode selector button and actuator
Port-release mechanism lever
Metering pattern selector button
AE-L/AF-L & AF-ON lever and rotating collar
Exposure compensation button lever
Multi-selector array and center button
Live view-actuating button
INFO activation button
Live view mode selector lever
OK button
Thumbnails/playback zoom out button
Playback zoom in button
Protect/picture control/help button
Menu
Playback
Delete/format
Release mode dial selector knob
ISO button access lever
Exposure bracketing
Image quality access button
White balance access button
Release mode selector unlock button
Exposure mode selector | | Material of Construction | Body: Anodized aluminum alloy
Controls: Type 304 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable ports for various wide-angle, zoom, and macro lenses
Bayonet flange allows for mounting of various ports and extension rings
4 dome ports of different sizes and a macro port are available
For full details, see Port Chart linked in Overview | | Buoyancy | Depends upon lens and port selected | | External Strobe Connector | 2x Nikonos bulkhead connectors, each with 5 active pins
TTL possible via third-party TTL converter (sold separately)
Attach optional strobes via Nikonos-type sync cords and/or a TTL converter | | Other Connectors | 2x bulkhead access holes for installing optional connection/port or hydrophone | | Viewfinder | Standard removable viewfinder
Aqua View Finder:
Coverage: 100%
Rear viewing area: 1.5" (3.8 cm)
Coated
8 elements, 5 groups
Dioptric adjustment | | Moisture Alarm | Yes, audible alarm with red flashing LED
Pre-installed vacuum check system also includes vacuum valve and extracting pump | | Mounting | 1x 1/4"-20 top accessory hole
3x bottom mounting points for brackets, tripods, other support systems
4x 1/4"-20 holes on grips | | Dimensions (W x H x D) | Not specified by manufacturer |
