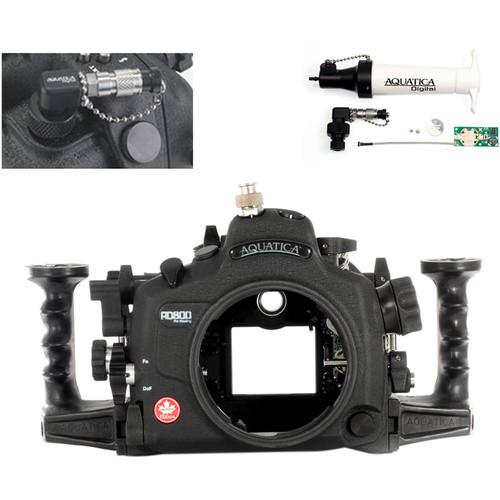

Product description Capture brilliant photos and Full HD 1080p video of pygmy seahorses, sharks, and coral reefs, thanks to Aquatica's AD800 Underwater Housing for your Nikon D800 or D800E digital SLR camera. It has a depth rating of 295' (90m), which is upgradeable to 426.5' (130m). This version of the housing also includes a pre-installed vacuum check system, which allows you to confirm watertight integrity before the dive. The housing is equipped with one Ikelite TTL strobe connector with 5 active pins.

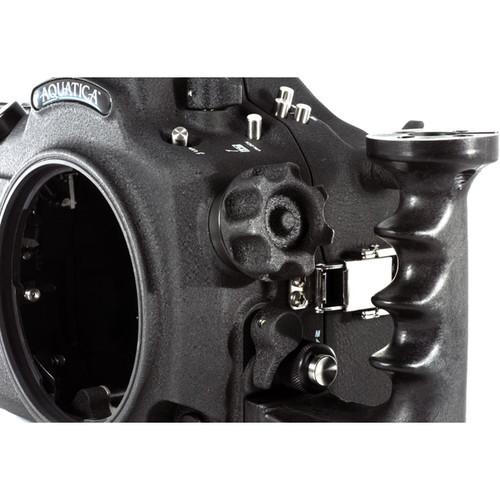

Access to virtually all camera functions is provided by mechanical controls. The AD800 housing is the first of its kind from Aquatica to offer access to the Fn and DOF preview buttons. This is accomplished via a unique toggle lever. Various custom functions can be assigned to each of these buttons. The AD800 has dual ergonomic hand grips for easy underwater handling. The housing is constructed from aircraft grade aluminum and stainless steel for durability. It is machined on advanced, 5-axis, computer-assisted machines, then anodized to North American military specifications to safeguard against corrosion, scratches, and other damage. A tough powder coating and corrosion-resistant zinc anodes on a couple of sensitive parts round out the noteworthy protective features of the AD800.
The housing ships without a required lens port, and accepts interchangeable ports for a wide variety of wide-angle, zoom, and macro lenses. See the Port Chartvxvzafddwrrxrvrezvzz for full compatibility information. The standard, coated eyepiece offers a full view of the camera's viewfinder. - Waterproofing
-
- Depth rating: 295', upgradeable to 426.5' (130m) upon request
- This version of housing includes pre-installed vacuum check system, which allows you to confirm watertight integrity before dive
- Known as Vacuum Circuitry and Alarm Kit, the atmospheric pressure-sensitive system consists of a vacuum valve, an extracting pump, and a SURVEYOR moisture alarm/pressure sensor with an on/off switch
- Moisture alarm features temperature compensation to prevent change in ambient temperature from affecting its accuracy
- Valve and extracting pump contribute by ensuring that a solid vacuum is created inside the housing
- Controls, Handling, and Operation
-
- Provides access to virtually all camera functions via mechanical controls
- Knurled knobs and oversized controls allow for easy operation in any situation

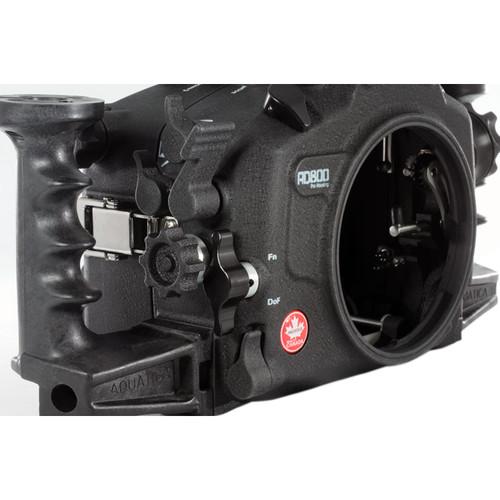

- AD800 housing is first of its kind from Aquatica to offer access to Fn and DOF preview buttons. This is accomplished via a unique toggle lever
- You can assign following custom functions to Depth of Field button: Power Aperture (Close), Index Marking in Video mode, and View photo shooting info
- To Fn button, you may assign these custom functions: Select Image area using Main Command Dial, Convert to depth of field Preview, FV Lock (lock flash value), AE/AF Lock, AE Lock only, AE Lock (Reset on release), AE Lock (Hold), AF Lock only, AF-ON, Flash Off, Power Aperture (Open), Index Marking in video mode, and View photo shooting info

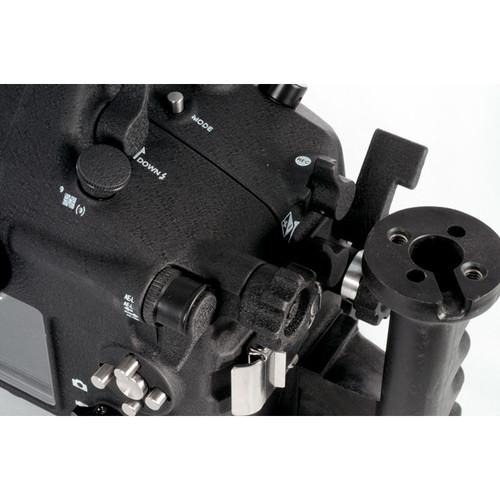

- Housing features an internal flash up/flash down capability, as well as a quick access ISO lever that is thumb activated

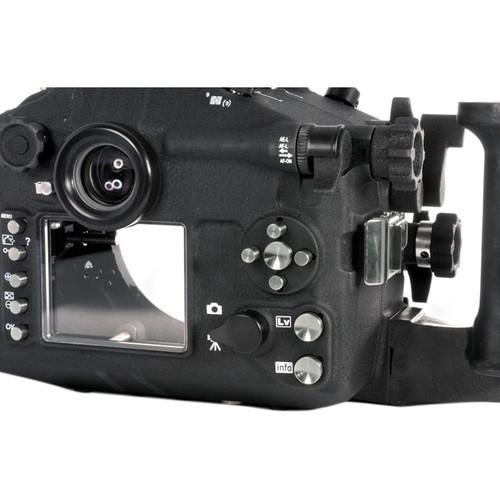

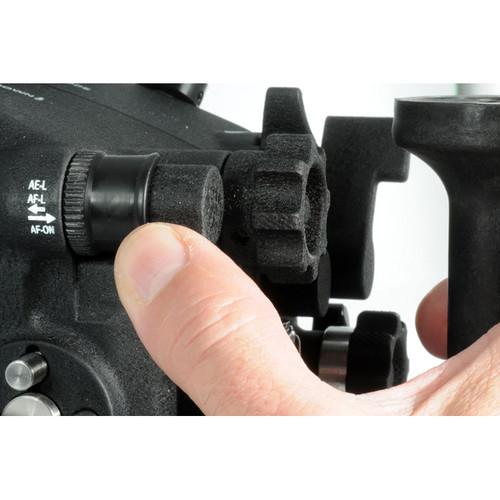

- AF-L/AE-L and AF-ON button access is now provided with a combined lever and rotating collar that prevents ambient pressure from pushing it back towards housing

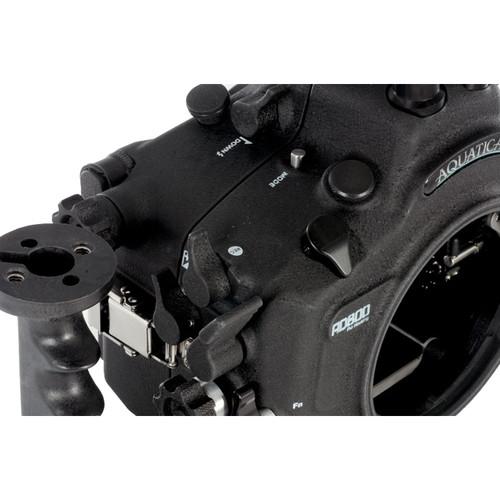

- Menu buttons have been angled to provide better access from your left hand
- Housing's lens gear system has smaller housing pinion gear and larger lens gear, allowing for smoother action while zooming in during video sequences

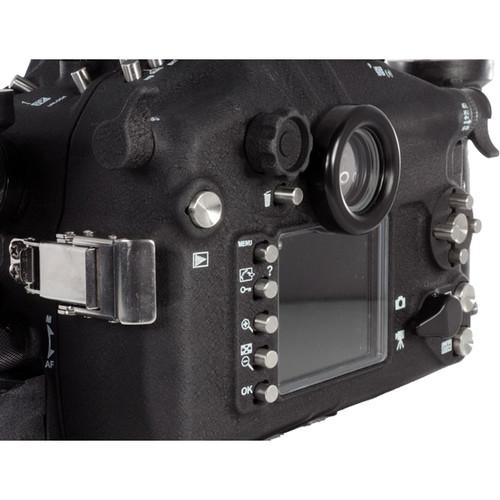

- On left-hand side of housing, buttons and mode selector control are angled and positioned for quicker access to various functions
- On right-hand side, video recording lever has been relocated closer to your index finger
- Live View toggle remains within easy reach
- Multi controller pad found on Nikon D800 is made accessible and its SET button is enlarged
- Includes 2 removable grips that offer improved handling and attachment points for optional lighting arms
- Standard, coated Galileo-type eyepiece offers a full view of the camera's viewfinder
- Construction Details
-
- Housing carefully crafted from an aluminum alloy
- Built on sophisticated, 5-axis, computer-assisted machines, then anodized to North American military specifications to safeguard against corrosion, scratches, and other damage
- Also features tough powder coating and corrosion-resistant zinc anodes on sensitive parts
- Controls made of Type 304 stainless steel--same steel used in aerospace industry--to prevent breakage and rusting

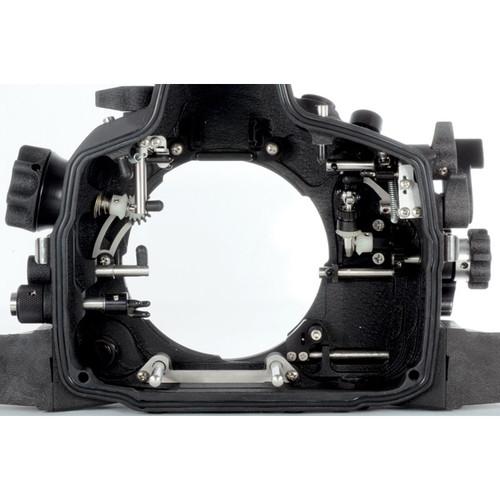

- A newly designed camera tray smoothly and precisely positions camera in housing and is easily disengaged by a simple push on a tab
- Zoom-actuating pinion gear and lens-release lever pull out to allow you to remove camera from rear while keeping lens and zoom gear attached
- Housing built in Canada, so it has endured long-term exposure to one of world's most rugged diving environments, helping to ensure its durability and reliability
- Lens Port System
-
- Ships without required lens port
- Interchangeable port system accepts an array of wide-angle, zoom, and macro lenses
- See Port Chart linked above for complete details
- External Strobe Use
-
- One Ikelite TTL strobe connector with 5 active pins
- Can only be used with Ikelite # 4301 / 4301.2 TTL converter (sold separately)
- Manual exposure is possible by switching Ikelite 4301 / 4301.2 converter to manual
- You can connect up to 2 Ikelite strobes with optional dual sync cord
- Mounting
-
- Total of 3 access holes accept various external accessories, such as Aquatica's remote trigger (# 19304), external monitors, and more
- Both hand grips have mounting holes ready to accept mounting bracket of Aquatica's TLC lighting arm system, as well as various other lighting arms
- Extra mounting point for a focus/video light or other accessory is on top of housing, and three additional mounting points are provided on bottom for various brackets, tripods, and other support systems
In the Box Aquatica AD800 Underwater Housing for Nikon D800 or D800E with Vacuum Check System (Ikelite TTL Strobe Connector) Vacuum Check System 2 x Grip Handles Standard Eyepiece Limited 1-Year Warranty Compatibility chart PDF 1.1mbvxvzafddwrrxrvrezvzz Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica AD800 Underwater Housing for Nikon D800 or D800E with Vacuum Check System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20070-KT-VC Specs | Depth Rating | 295' (90 m)
Upgradeable to 426.5' (130 m) | | Control Type | Mechanical | | Controls | 2x grip handles
Shutter Release lever, Sub-Command Dial knob, Main Command Dial knob, Movie Record button actuating lever, DoF (Depth of Field)) & Fn (Function) toggle lever
Power Switch/Illuminator lever, Top Bulkhead access hole, Internal Flash lowering lever, Flash Mode and Compensation lever
Internal Flash up button, Focus/Zoom pinion gear release disk, Focus/Zoom Control knob, Focus/Zoom Control pinion gear, Lens Release knob, Lens Release knob lever
AF/MF selector, Focus Mode Selector fork, AF mode selector button, AF mode selector actuator, Port Release mechanism Lever, Metering Pattern Selector button
AE-L/AF-L & AF-ON lever Rotating collar, AE-L/AF-L & AF-ON lever, Exposure Compensation button access lever, Multi Selector center button, Multi selector array, Live View actuating button
INFO activation button, Live View mode selector lever, OK button, Thumbnails/Playback Zoom out button
Playback Zoom in button, Protect/Picture Control/Help button, Menu button, Playback button, Delete button/Format button, Release mode dial selector knob

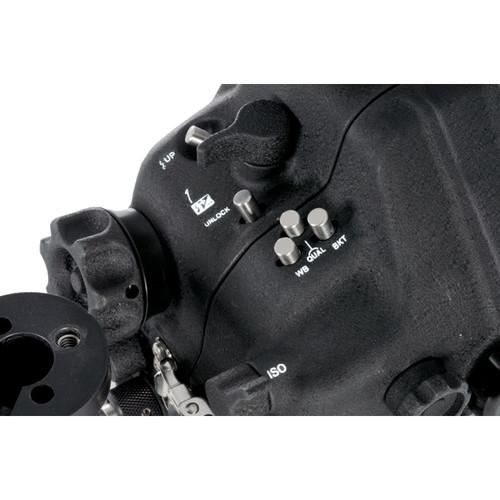

ISO button access lever, BKT Exposure Bracketing button, QUAL Image Quality access button, WB White Balance access button
Release mode selector unlock button, Exposure mode selector | | Material of Construction | Aluminum with Type 304 stainless-steel controls
Quick release tray
Rear LCD window
Rubber anti-skid pad
1x sacrificial anode (anti-corrosive)
2x locking latches with safety locking tabs | | Lens Port | Interchangeable port system accepts an array of wide-angle, zoom and macro lenses
A port is required but sold separately
Bayonet flange allows the mounting of various ports and extension rings
4 dome ports of different sizes and a macro port available: | | Buoyancy | Depends upon port selected | | External Strobe Connector | 1x Ikelite TTL strobe connector with 5 active pins
Only compatible with Ikelite # 4301 / 4301.2 TTL converter (sold separately)
Manual exposure is possible by switching Ikelite 4301 / 4301.2 converter to manual
Strobe attachment requires sync cord (sold separately) | | Other Connectors | 2x bulkhead access holes for installing optional connection/port or hydrophone | | Viewfinder | Standard, coated eyepiece offers full view of camera's viewfinder | | Moisture Alarm | Includes pre-installed vacuum check system for confirming watertight integrity before dive
Vacuum Circuitry and Alarm Kit is sensitive to atmospheric pressure
Consists of vacuum valve, extracting pump, and moisture alarm/pressure sensor with an on/off switch | | Mounting | Camera mounting screw
1x 1/4"-20 top accessory mounting hole
3x bottom mounting points for brackets, tripods, other support systems
4x 1/4"-20 accessory mounting holes on grips | | Dimensions (W x H x D) | Not specified by manufacturer |
