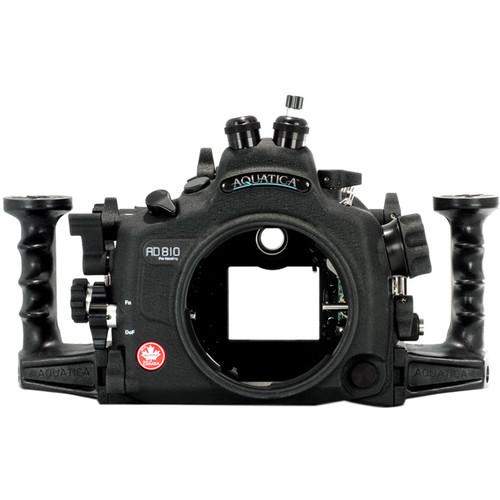

User Manual for Aquatica AD810 Pro Underwater Housing for Nikon D810 Click to enlarge the picture
Contents of the user manual for the Aquatica AD810 Pro Underwater Housing for
- Product category: Still Cameras & Housings Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Still Cameras & Housings
|
User manual for the Aquatica AD810 Pro Underwater Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|
Product description Capture the world beneath the sea in detailed still photos and Full HD 1080p video with your Nikon D810 DSLR, thanks to the Aquatica AD810 Pro Underwater Housing. It has a depth rating of 295', which is upgradeable to 426' upon request. Dual Sea & Sea and Inon-type fiber-optic strobe connectors enable the attachment of optional external strobes via fiber-optic cables. The standard, coated eyepiece offers a full view of the camera's viewfinder.
The housing provides access to all camera functions via mechanical controls. It also has an ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms. Built for durability, especially resistance to corrosion, the housing is constructed from anodized, machined aluminum and stainless steel.
The AD810 ships without a required lens port, though various interchangeable ports are available for wide-angle, macro, and zoom lenses. For full compatibility information, see the Port Chart. - Waterproofing
-
- Depth rating of 295', which is upgradeable to 426' upon request
- Surveyor moisture alarm alerts you in unlikely event of a breach in waterproof seal
- Controls, Handling, and Operation
-
- Provides easy access to all camera functions, including programmable/customizable Fn and DOF preview buttons, via mechanical push-buttons, levers, and grooved dials/knobs
- Internal flash up/flash down capability
- Quick-access ISO lever activated by thumb
- AF-L/AE-L & AF-ON buttons accessed via combined lever and a rotating collar that prevents ambient pressure from pushing it back towards housing
- Menu buttons angled for easier access with your left thumb
- Smaller housing pinion gear and a larger lens gear for smoother action while zooming in a video sequence
- Internal tray positions camera with precision and can be disengaged by a simple push on a tab
- Ergonomic design with 2 grips that offer improved handling and attachment points for optional lighting arms
- Most controls accessible with your hands on grips
- Knobs and other controls are large and/or knurled for ease of use when wearing diving gloves
- Camera can be removed from rear of housing while keeping lens/zoom gear attached
- Optional hydrophone records audio
- Standard, coated, Galileo-type eyepiece offers a full view of the camera's viewfinder
- Construction Details
-
- Precision-machined in Canada from aluminum alloy that has been anodized for resistance to corrosion
- Housing shell crafted using 5-axis computer-assisted machines
- Powder coating baked on at high temperature for extra protection
- Tested in harsh conditions in Canada to ensure durability
- Controls made of stainless steel
- Sacrificial zinc anodes protect vulnerable parts of housing by corroding so that housing itself will not
- Lens Port System
-
- Ships without a required lens port
- Various interchangeable dome and flat ports are available for wide-angle, macro, and zoom lenses
- For full compatibility, see port chart linked above
- External Strobe and Light Use
-
- Dual Sea & Sea and Inon-type fiber-optic strobe connectors enable the attachment of optional external strobes via fiber-optic cables
- Tweak your TTL lighting exposure or go fully manual with controls placed right at your fingertips
- Strobe connectors are user-replaceable without any special tools
- Mounting
-
- Grip handles feature 1/4"-20 female threaded mounts for connecting optional lighting arms, such as those from Aquatica's Technical Lighting Control line
- Extra mounting point on top of housing for attaching focus/video light or other accessory
- Three 1/4"-20 female threaded mounts on bottom enable connection to optional bracket, tray, or tripod
- Bulkhead access holes allow for attachment of optional accessories, such as external monitors or triggering devices
In the Box Aquatica AD810 Pro Underwater Housing for Nikon D810 (Dual Fiber-Optic Strobe Connectors) 2 x Grip Handles Allen Key Spare Main O-Ring Container of O-Ring Lubricant Limited 1-Year Warranty Compatibility chart PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica AD810 Pro Underwater Housing for Nikon D810 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20076-OPT Specs | Depth Rating | 295' / 90 m, upgradeable to 426' / 130 m | | Control Type | Mechanical push-buttons, levers, and grooved dials/knobs | | Controls | Provide access to all camera functions | | Material of Construction | Housing: Machined, anodized aluminum alloy
Controls: Stainless steel
Sacrificial Anodes: Zinc | | Lens Port | Ships without a required lens port
Various optional, interchangeable dome and flat ports available for wide-angle, macro, and zoom lenses
For full compatibility, see port chart linked in Overview | | Buoyancy | Varies depending on choice of lens and port | | External Strobe Connector | 2x Sea & Sea and Inon-type fiber-optic strobe connectors for use with fiber-optic cables (sold separately) | | Viewfinder | Standard, coated eyepiece offers full view of camera's viewfinder | | Moisture Alarm | Yes | | Mounting | Grips configured with 1/4"-20 female threaded mounts for optional lighting arms
Extra mounting point on top of housing
3x 1/4"-20 female threaded mounts on bottom for optional bracket, tray, or tripod
Bulkhead access holes for accessories, such as external monitors or triggering devices | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
