Product description

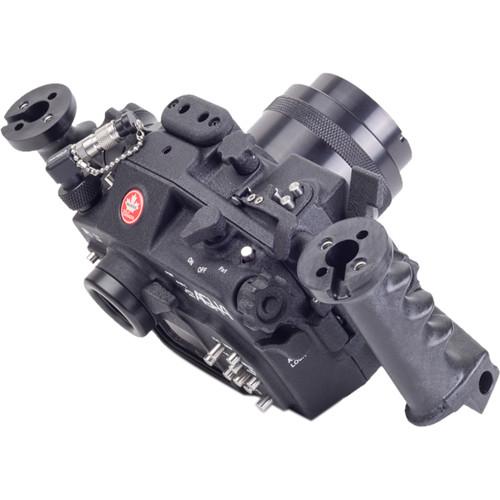

Capture photos and Ultra HD 4K video beneath the surface with this Aquatica AGH4 Underwater Housing for Panasonic's Lumix GH4 Mirrorless Micro Four Thirds camera. It features a depth rating of 295', which is upgradeable to 426' upon request, and is equipped with a moisture alarm/pressure sensor to alert you in the unlikely event of a leak. Additionally, the enclosure has two fiber-optic connectors for attaching optional external strobes via cables.

Mechanical controls afford access to virtually all camera functions, and the ergonomic dual-grip design improves balance and handling. The grips also offer attachment points for lighting arms. The housing is constructed from anodized aluminum for resistance to corrosion, and the push-buttons and control shafts are made from durable stainless steel. For further protection against the elements, the housing features sacrificial anodes and a tough, baked-on powder coating.

The AGH4 ships without a required lens port, though various interchangeable ports are available for different lenses. For full compatibility, see the Port Chart. The housing includes the standard Galileo-type optical viewfinder and accepts the optional Aqua View Finders, which provide an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment.
    Waterproofing
    • Features a depth rating of 295', which is upgradeable to 426' upon request
    • Equipped with a SURVEYOR moisture alarm/pressure sensor to alert you via both audio and visual signals in the unlikely event of a breach in the waterproof seal
    • Moisture alarm is sensitive to atmospheric pressure and is always active
    • Housing has a simple lock that you push and rotate to engage
    • All shafts have double O-ring seals
    • All push-buttons have quad O-ring seals
    Controls, Handling, and Operation
    • Mechanical push-button, gear/dial/knob, and lever controls afford access to virtually all camera functions
    • Ergonomic dual-grip design improves balance and handling
    • Grips also offer attachment points for lighting arms
    • Grips are lightweight and quickly removable via the supplied hexagonal wrench
    • Placing latch on left-hand side of housing allows for more room on right-hand side to position most controls, including front dial/aperture knob located just below extended shutter lever

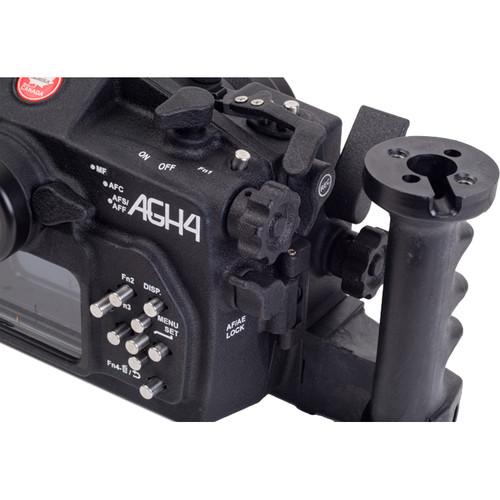

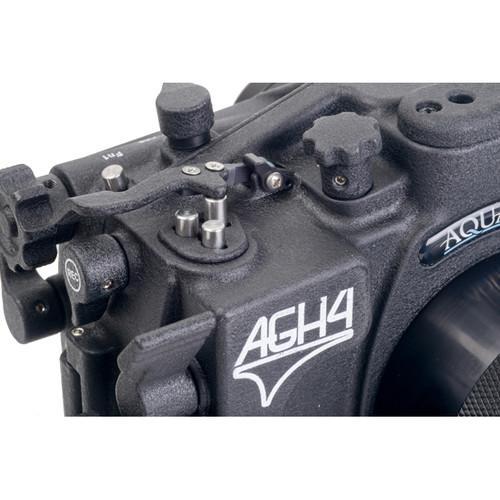

    • Shutter release, video recording lever, aperture and shutter knobs, and programmable AE/AF LOCK lever can all be reached easily with your right hand comfortably resting on the grip
    • ISO lever positioned under your right thumb and accessible with hand on grip
    • On left side, right above and in front of the latch is the zoom/focus control knob, which can be rotated with your fingertips
    • Zoom/focus control is set up with a smooth gear system for optimal performance when zooming or manually focusing
    • Controls are designed for easy operation, even when wearing thick gloves, and knobs are over-sized and knurled
    Construction Details
    • Made from a solid block of 6061 T6 aluminum, which has been anodized to MIL-A-8625 type 2, class 2 specification for resistance to corrosion
    • Polyester electrostatic powder coating is applied and baked on for even greater protection
    • Push-buttons and control shafts are made from durable stainless steel

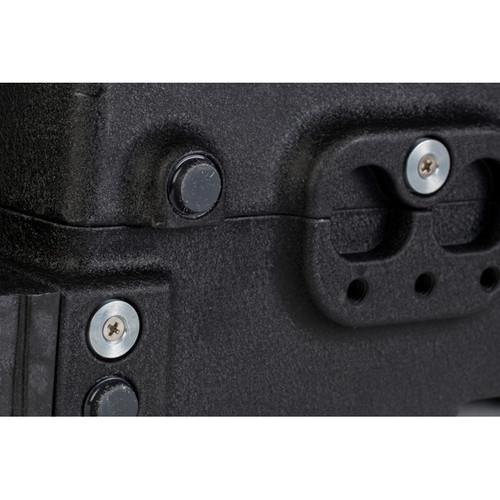

    • Dual replaceable, sacrificial anodes on the front and rear of the housing shield sensitive parts of the enclosure from saltwater, eventually being corroded in the process
    • Internal tray supports camera and can be removed quickly
    Lens Port
    • Ships without a required lens port, though various interchangeable ports are available for all compatible Micro Four Thirds lenses
    • Available ports include 4" fisheye dome, SW8 super wide-angle dome, and three flat ports for macro lenses
    • For full compatibility, including gears and extension rings, see the Port Chart linked above
    • Optional Micro Four Thirds-to-DSLR port adapter acts as a step-up adapter, allowing Aquatica DSLR ports to be mounted on this housing
    Strobe Connection and Operation
    • Two fiber-optic connectors for attaching optional external strobes via cables
    • Manual and S-TTL exposure available
    • Aquatica's strobe connectors are user-serviceable and quickly replaceable, without any special tools
    • Strobes can be connected to optional support arms, such as those from Aquatica's Technical Lighting Control line, which can be conveniently mounted onto the housing's grip handles
    Viewfinder
    • Includes the standard Galileo-type eyepiece
    • Accepts the optional Aqua View Finders, which provide an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment
    • Aqua VFs can be installed without any special tools in a matter of a few minutes
    Mounting
    • Five 1/4"-20 threaded holes on the top and three on the bottom for connecting lighting arms, a tripod, and other accessories
In the Box Aquatica AGH4 Underwater Housing for Panasonic GH4 (Dual Fiber-Optic Strobe Connectors)
  • 2 x Grip Handles
  • Spare Main O-Ring
  • Container of O-Ring Lubricant
  • Standard Optical Viewfinder
  • Limited 1-Year Warranty
  • Spec sheet PDF 933.8kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Aquatica AGH4 Underwater Housing for Panasonic GH4 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Aquatica 33000-OPT Specs

    Depth Rating 295' / 90 m, upgradeable to 426' / 130 m
    Control Type Mechanical push-buttons, gears/dials/knobs, and levers
    Controls Provide access to virtually all camera functions, including shutter release, video record lever, front dial/aperture control knob, programmable AE/AF LOCK lever, zoom/focus control knob, and ISO lever
    Material of Construction Housing Body: 6061 T6 aluminum alloy
    Push-Buttons and Control Shafts: Type 304 stainless steel
    Finish Black anodized to MIL-A-8625 type 2, class 2 specification
    Certified A.A.M.A. 2603-98 polyester coating baked on at 350°F/177°C (ASTM D2794 specification)
    Lens Port Ships without required lens port
    Various interchangeable ports available for all compatible Micro Four Thirds lenses
    Available ports include 4.0" / 10.2 cm fisheye dome, SW8 super wide-angle dome, and three flat ports for macro lenses
    For full compatibility, including gears and extension rings, see Port Chart linked in Overview
    Optional MFT-to-DSLR port adapter acts as step-up adapter, allowing Aquatica DSLR ports to be mounted
    Buoyancy May vary with choice of lens and port
    External Strobe Connector Two fiber-optic connectors for attaching optional external strobes via cables
    Manual and TTL exposure available
    Viewfinder Includes standard Galileo-type eyepiece
    Accepts optional 45 and 180° Aqua View Finders for 100% coverage, corner-to-corner sharpness, and dioptric adjustment
    Moisture Alarm Yes, with atmospheric pressure sensor
    Audible and visual signals
    Mounting 5x 1/4"-20 threaded holes on top
    3x 1/4"-20 threaded holes on bottom
    Dimensions 6.0 x 3.75 x 7.1" / 15.2 x 9.5 x 18 cm without grips
    6.0 x 3.75 x 11.2" / 15.2 x 9.5 x 28.4 cm with grips
    Weight Not specified by manufacturer
    Package Weight 7.2 lb
    Box Dimensions (LxWxH) 12.047 x 10.63 x 8.425"
