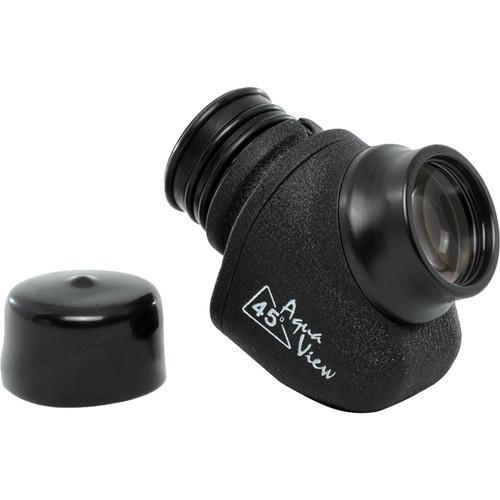

User Manual for Aquatica Aqua View 45-Degree Optical Viewfinder for Underwater Housing Click to enlarge the picture
Contents of the user manual for the Aquatica Aqua View 45-Degree Optical Viewfinder
- Product category: Misc. Accessories Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Misc. Accessories
|
User manual for the Aquatica Aqua View 45-Degree Optical Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|
Product description The Aqua View 45-Degree Optical Viewfinder from Aquatica is a 45° angled finder compatible with their underwater camera housings built since 2008. It contains BK-7 coated glass elements, offering an enhanced view with 100% coverage for crisp, bright and sharp images from corner to corner--all from a convenient and comfortable angle of view. It is easily installed and removed in as little as 30 sec.
Designed with the intention of having the smallest and least obstructive shape possible, the body of the Aqua View 45 is built from aluminum that is hard anodized to military specifications, and further protected by a baked-on powder coating. The viewfinder is rated to depths of up to 295' but is built to go far deeper. All materials used in its construction are the same grade used by the aeronautical industry. This extra step in quality control ensures that your Aqua View Finder will resist the harsh working environment common to the underwater photographer.
The Aqua View 45's streamlined design does away with the boxy shape normally associated with this type of viewfinder. Diopter correction settings are done via the viewfinder adjustment controls on your DSLR.
For full compatibility, see Housing Chart. - BK-7 coated glass elements
- Enhanced view with 100% coverage for crisp, bright and sharp images from corner to corner--all from a convenient and comfortable angle of view
- Depth rating of 295', but built to go far deeper than that
- Anodized aluminum body protected with powder coating resists corrosion for long-lasting performance. All materials used in its construction are the same grade used by the aeronautical industry
- Compact and streamlined design minimizes obstruction of the camera's rear LCD
- Easily installed and removed in as little as 30 sec
- Diopter correction settings are done via the viewfinder adjustment controls on your DSLR
- It is possible to adjust the Aqua View 45 to one's eyesight. To do so, use the eyesight adjustment of your camera and rotate or slide until properly adjusted comfortably to your eye
- When shooting vertically, the viewfinder can be rotated to either side to make viewing and composing easier. Simply grab the body of the viewfinder and rotate it either clockwise or counterclockwise, depending on your preference
In the Box Aquatica Aqua View 45-Degree Optical Viewfinder for Underwater Housing Soft Carrying Pouch Protective Cap Limited 1-Year Warranty User Manual PDF 450.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica Aqua View 45-Degree Optical Viewfinder for Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 20059 Specs | Depth Rating | 295' / 90 m | | Construction | Anodized aluminum body with powder coating
BK-7 coated glass elements
1 retaining O-ring
2 sealing O-rings | | Coverage | 100% | | Diopter Correction | Done via viewfinder adjustment controls on DSLR | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 6.9 x 6.4 x 4.5" |
