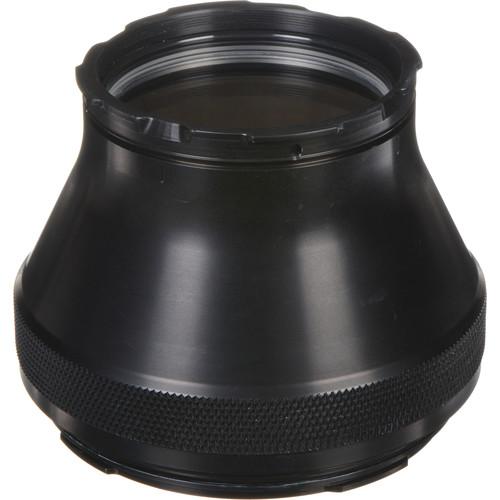

Product description You can capture detailed close-up shots of coral, parrot fish, and pygmy seahorses at depths as great as 300', thanks to Aquatica's Flat Mini Macro Port for select prime lenses. It's compatible with the Canon EF 100mm f/2.8 and EF-S 60mm f/2.8, as well as the Nikon AF/AF-S Micro 60mm and 105mm f/2.8. Additionally, the port is compatible with Aquatica's line of extension rings, and can accommodate the Sony FE 90mm f/2.8 lens when used with an extension. For complete details, see the port charts linked below. A bayonet mount enables connection to Aquatica's underwater housings for Canon and Nikon DSLRs and Sony mirrorless cameras.
The Mini Macro Port tapers from the rear to the front, creating a slimmer shape that won't block the light of your strobes or video lights. This feature allows you to place your lights closer to your camera and your subjects for better illumination in super-macro shooting.
The port features a flat glass front element, which does not correct for the underwater size distortion that makes everything appear 25% larger and closer--thus providing ample magnification for close-up images. The 77mm front filter threads enable the attachment of optional add-on lenses to get you even closer to your subjects, so as to virtually eliminate distortion caused by the water. With a step-down ring, you can add accessory lenses with 67mm threads, as well.
A four-point bayonet mount on the front of the port allows for the connection of Aquatica's optional Flip Holder, which makes it possible to keep your close-up lens attached at all times and flip it into place easily whenever you want to use it. For even more versatility, an optional double-hinged holder lets you connect two lenses of different magnifications to the same frame.
Built for durability, especially resistance to corrosion by seawater, the compact port body is made of an anodized aluminum alloy. - Compatible Lenses
-
Canon:- EF 100mm f/2.8
- EF 100mm f/2.8L IS USM
- EF-S 60mm f/2.8 USM
See the Canon Type 1 and Type 2 port charts
Nikon:- AF Micro 60mm f/2.8D
- AF-S Micro 60mm f/2.8G ED
- AF Micro 105mm f/2.8D
- AF-S Micro 105mm f/2.8G ED VR
See the Nikon Type 1, Type 2, Type 3, and Type 4 port charts
Sony:- FE 90mm f/2.8 Macro G OSS with #48453 port extension
See the Sony Type 4 port chart In the Box Aquatica Flat Mini Macro Port for Select Canon, Nikon, and Sony Prime Lenses 77mm Front Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica Flat Mini Macro Port for Select Canon, Nikon, and Sony Prime Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 18430 Specs | Depth Rating | 300' / 91.4 m | | Material of Construction | Front Element: Glass
Body: Anodized aluminum alloy | | Mount Type | Rear: Bayonet
Front: Four-point bayonet for optional Flip Holder | | Front Filter Thread Size | 77 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 4.3" |
