User Manual for Aquatica Remote Capture System with Pole and Tilting Mechanism for Camera Housing Click to enlarge the picture
Contents of the user manual for the Aquatica Remote Capture System with Pole
- Product category: Misc. Accessories Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Misc. Accessories
 |
User manual for the Aquatica Remote Capture System with Pole contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|

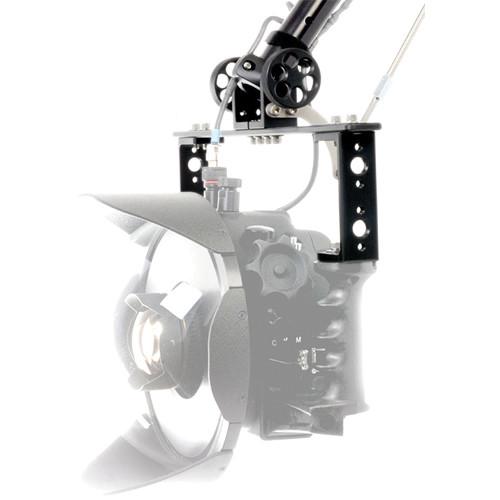

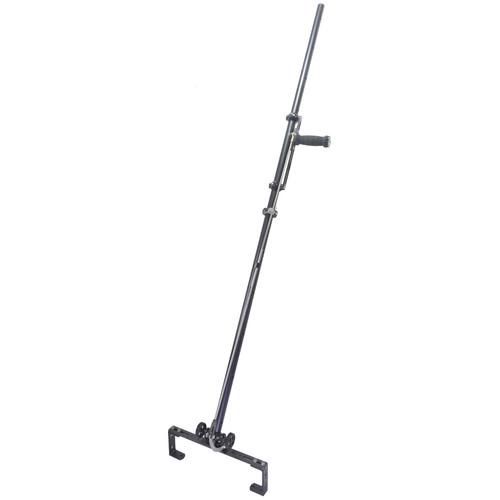

Product description This Remote Capture System from Aquatica allows the photographer to immerse a camera in its Aquatica underwater housing beneath the water's surface, and change its up and down tilt angle at a distance by sliding a handle. It includes a pole with a tilting mechanism to which the housing will be attached. - Hardware and tools required for assembly, including tools and wrenches, are supplied.
- Assembly entails several simple steps:

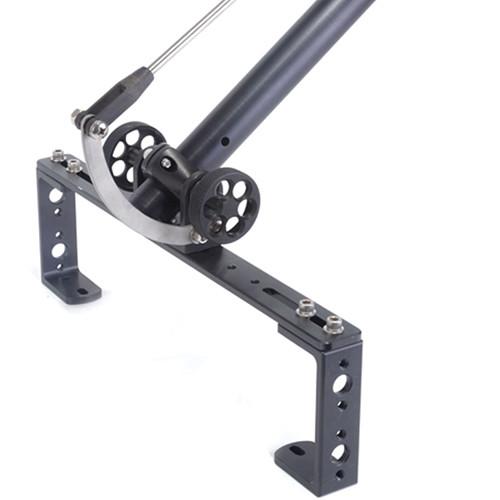

- Attaching the pre-assembled tilt mechanism to the support bar
- Attaching the lower actuating rod to the tilt mechanism
- Connecting upper actuating rod to the sliding mechanism
- Connecting support brackets to housing grip and support bar
- Attaching upper actuating rod to sliding mechanism
- Building the pole
- Connecting assembled pole to tilt mechanism
- Reversible washer has two sides: one that will let the tilt mechanism move freely, and another that will lock it into place. You can select the option you desire. Placing both washers in the same position allows for maximum efficiency.
- Once assembly is completed correctly, when pushing the sliding mechanism back and forth, the tilt movement will be free to complete its cycle. If it does not, then actuating rod length can be adjusted in order to accomplish this.
- Optional, ergonomic accessory grip is designed to be mounted on the upper section of the RCS pole and positioned so as to provide a comfortable position for the right hand. Also available, the optional Remote Grip Clamp (#19319) can be used to mount a remote grip to the RCS pole. Additionally, the #19320 Clamp, also sold separately, is used to mount various accessories.
In the Box Aquatica Remote Capture System with Pole and Tilting Mechanism for Camera Housing 2 x Tube Couplings 3 x Tube Sections Upper Actuating Rod Assembly Lower Actuating Rod Assembly Actuating Rod Guide Clamp Assembly Actuating Rod Coupling Sliding Mechanism Rail Assembly Sliding Mechanism Grip and Delrin Washer Tilt Mechanism Assembly Support Bar 2 x Support Brackets 12 x Socket Head Cap Screws 3 x Hexagonal Wrenches Limited 1-Year Warranty Table of Contents
|
