User Manual for Aquatica SURVEYOR Moisture and Vacuum Sensor for AE-M1 Underwater Housing Click to enlarge the picture
Contents of the user manual for the Aquatica SURVEYOR Moisture and Vacuum Sensor
- Product category: Misc. Accessories Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Misc. Accessories
|
User manual for the Aquatica SURVEYOR Moisture and Vacuum Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|
Product description Prevent leaks and keep your Olympus OM-D E-M1 camera safe in Aquatica's AE-M1 Underwater Housing with the SURVEYOR Moisture and Vacuum Sensor. This unit is sensitive to atmospheric pressure, and allows you to confirm watertight integrity before diving. An included compensation function improves accuracy by ensuring that changes in ambient or internal temperature will not cause incorrect readings.
Once your camera is installed, simply push the actuation button on the sensor's circuit board. With the optional valve and extracting pump, which are part of the complete Vacuum Circuitry Kit, you can actually remove excess air to create a vacuum in the housing. -
- LED light will turn green for 2 seconds to confirm actuation
- Once a complete vacuum is achieved, the LED will blink in green again for 2 seconds
- During your dive, the LED will flash in green every 5 seconds, indicating system integrity
- If the pressure level is increasing but a vacuum has not yet been achieved, the LED will begin to flash in orange
- Should a slight loss in pressure be detected, the LED will start to flash in orange to warn you
- If your housing system is failing to maintain a vacuum, or the slightest amount of water has made contact with the sensor probes, an audible alarm will go off and the LED will also flash rapidly in red
- Advanced Aquatica circuit has temperature compensation included, so changes in ambient or internal temperature will not cause incorrect readings
- Onboard actuation button is for the vacuum only; your alarm is always on
- With the optional valve and extracting pump, which are part of the Vacuum Circuitry Kit, you can remove excess air to create a vacuum in your housing
- Housing can be purchased with this system pre-installed at the factory before shipment, in which case this one will serve as a spare or replacement
- If you purchased the housing without this kit initially, you can now add it on
- This SURVEYOR system may be used to replace the discontinued #20023 moisture alarm found in older housings

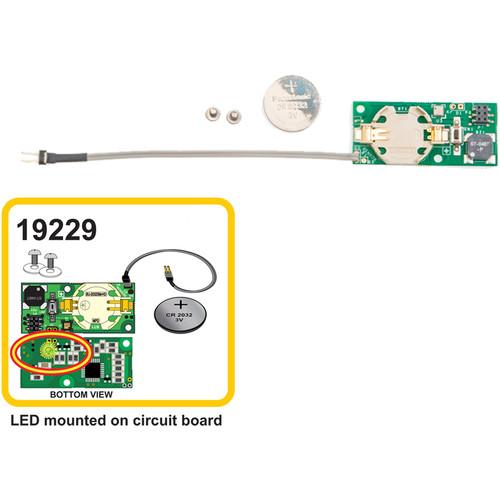

In the Box Aquatica SURVEYOR Moisture and Vacuum Sensor for AE-M1 Underwater Housing 3V CR 2032 Battery 2 x Mounting Screw & Spacer Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica SURVEYOR Moisture and Vacuum Sensor for AE-M1 Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 19229-AE-M1 Specs | LED Indicators | Actuation: Solid green for 2 seconds
Vacuum Confirmation: Blinking green for 2 seconds
Vacuum Maintained During Dive: Blinking green every 5 seconds
Vacuum in Progress: Blinking orange
Slight Loss of Pressure: Blinking orange
Vacuum Failure/Water Ingress: Blinking red | | Battery | 3.0 V CR 2032 cell |
