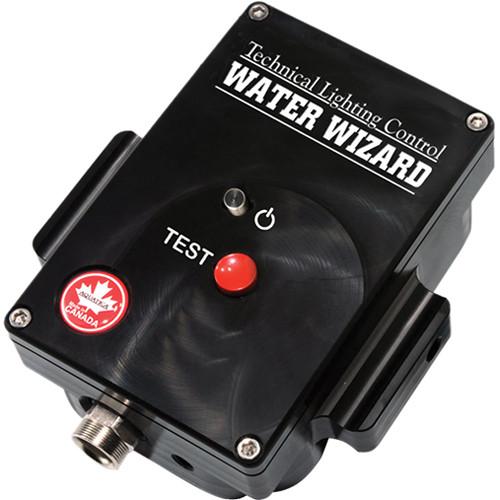

User Manual for Aquatica Water Wizard Housing Click to enlarge the picture
Contents of the user manual for the Aquatica Water Wizard Housing
- Product category: Lighting Accessories Aquatica
- Brand: Aquatica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aquatica Lighting Accessories
|
User manual for the Aquatica Water Wizard Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aquatica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aquatica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aquatica product will considerably shorten its lifespan!
|
Product description Synchronize your lighting above, on, and under the water by encasing your Pocket Wizard Plus III Radio Transceiver in the Water Wizard from Aquatica's Technical Lighting Control series. This waterproof housing protects your transceiver from harsh elements, allowing you to safely link and trigger multiple underwater strobes and top-side studio flashes. The Water Wizard features an Ikelite bulkhead connector, which interfaces with your camera housing or lighting units via user-supplied, commercially available sync and extension cords. This setup is compatible with any DSLR housing equipped with Nikonos or Ikelite-type strobe connectors.
This housing has a depth rating of more than 150', but since radio wave signals transmit poorly underwater, the Water Wizard is designed for surface use. When secured in the housing and floating on the surface, the transceiver can transmit or receive signals underwater from connected camera housings or lights over the distance of a 15' sync cord or above water up to 325' within a clear line of sight.
In shallow water, the device can be attached to a tripod or other support using 1/4”-20 threaded mounting holes located at the sides and bottom of the unit. In deeper water, winglet extensions on each side can accommodate Aquatica's optional buoyancy floats to keep the housing vertical on the water's surface, thus improving transmission.
Additionally, the Water Wizard can function as a remote camera trigger. To do this, you'll need Aquatica's optional remote control bulkhead (# 18738) and an internal remote cord compatible with your camera (# 19310 for a Nikon 10-pin remote socket, # 19311 for a Canon 3-pin remote socket), which connects to your camera's remote control terminal. Once this is set up, you'll be able to trigger the camera from a remote location.
Built for durability with stainless steel and PVC plastic parts, the Water Wizard is suitable for use in sports and activities such as outdoor photography, underwater adventure, extreme boating, surf photography, as well as research and industrial applications involving adverse weather or conditions that require lighting to be operated in the field without risk to equipment. - Applications
-
- Poolside Studio Photography: A floating Water Wizard housing containing a Pocket Wizard Plus III radio transceiver is used as a transmitter and connected to the camera housing. Additional Pocket Wizard's in Water Wizard housings can be connected to underwater strobes mounted on light stands throughout the pool. Any number of studio lights can also be synchronized top side, each with its own Pocket Wizard transceiver.
- Surf Photography: A Pocket Wizard Plus III radio transceiver in a Water Wizard housing can be mounted on the camera housing as a transmitter. Remote lighting with Pocket Wizard transceivers in Water Wizard housings can then be added as fill flashes or to light up a twilight scene.
- Underwater Exploration: Spelunking, a.k.a. caving, or exploring cenotes (surface connections to subterranean water bodies): Pocket Wizard Plus III radio transceivers in the Water Wizard housing can be connected to underwater strobes and cameras to help synchronize top side and underwater lighting in sunken chambers and other remote locations.
- For sports, outdoor adventure or research photography, or in any adverse weather situation requiring supplemental lighting or remote camera triggering, the Water Wizard can be mounted and left in the open without risk to equipment.
- Waterproofing
-
- Depth rating of more than 150'.
- Surface use recommended for transmission of radio wave signals.
- Controls, Handling and Operation
-
- Features electronic on/off and test/trigger buttons.
- Secure unit using four corner fasteners and hexagonal key.
- Ikelite bulkhead connector attaches to optional sync or extension cords.
- For functionality as a remote camera trigger, install optional Aquatica remote control bulkhead (# 18738) and an internal remote cord compatible with your camera (# 19310 for a Nikon 10-pin remote socket, # 19311 for a Canon 3-pin remote socket), which connects to your camera's remote control terminal.
- Construction Details
-
- Housing made from stainless steel and PVC plastic.
- Electrostatically applied polyester powder coating.
- External Strobe Use
-
- Included Ikelite bulkhead connector attaches to optional sync or extension cords for lighting.
- Mounting
-
- Three 1/4”-20 threaded tripod mounting points.
- Optional buoyancy floats for deep water use.
In the Box Aquatica Water Wizard Housing - Bulkhead Protector Cap
- Hexagonal Key
- Limited 1-Year Warranty
User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aquatica Water Wizard Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquatica 15500 Specs | Waterproofing | Waterproof to 150' / Designed for surface use | | Control Type | Electronic | | Material of Construction | Stainless steel, PVC plastic and electrostatically applied polyester powder coating | | Buoyancy | Neutral | | External Strobe Connector | Ikelite-type bulkhead connector
Sync and extension cords sold separately | | Moisture Alarm | None | | Mounting | 1/4”-20 threaded tripod mounting points on 3 sides
Optional buoyancy floats for deep water use | | Dimensions | 2.15 x 5.25 x 3.5" / 5.46 x 13.3 x 8.9 cm | | Weight | 1.10 lb / 500 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.7 x 8.4 x 3.1" |
