User Manual for Arca-Swiss d4 Tripod Head with a Classic Knob Quick Release Click to enlarge the picture
Contents of the user manual for the Arca-Swiss d4 Tripod Head with a
- Product category: Tripod Heads Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Tripod Heads
 |
User manual for the Arca-Swiss d4 Tripod Head with a contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

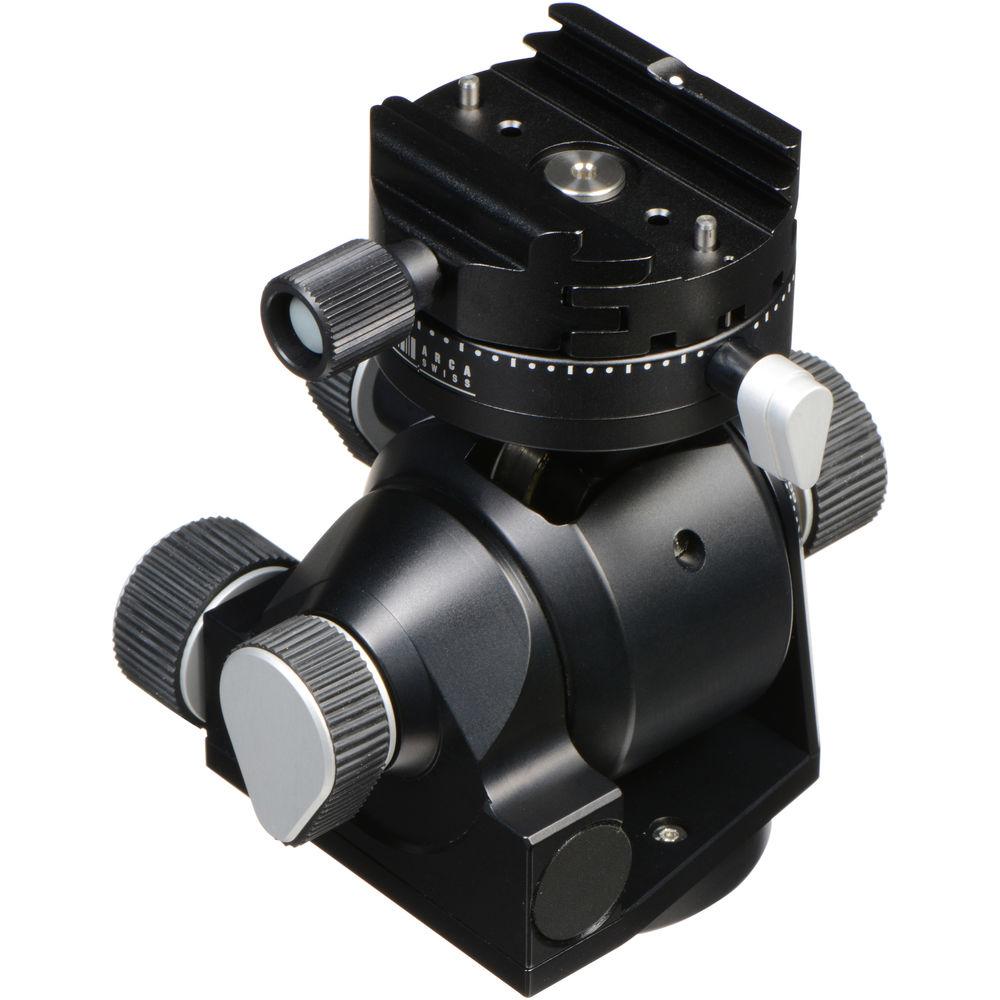

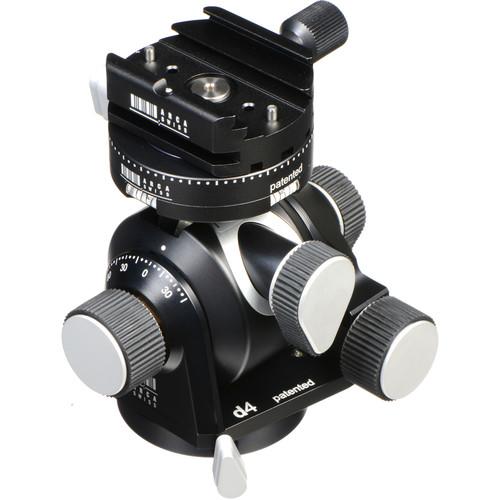

Product description Tilt and pivot your camera in three-dimensional space with the Arca-Swiss d4 Tripod Head with a Classic Knob Quick Release, which combines the advantages of a spherical head and a 3D tilt head in one compact system.
Small at only 4.3" high and 1.8 lb, yet comprising a 75 lb leverage weight capacity (which accounts for the added stress of a heavy lens) and unobtrusive yet functional controls, the d4 can be used on a tripod like a normal spherical head. When both X- and Y-axes are open, one can move the camera freely. But, in contrast to a spherical head, X- and Y-axis movements can also be made separately, one at a time. And, if one of these axes is fixed, movements can be performed with even more precision.
The design of this head puts the center of rotation of X and Y- tilts in the same place, making the pivoting radius of these movements very small, thus allowing users to maintain perspectives during readjustment. Also, a self-locking shock absorption feature for the swivel function allows for near total compensation of the camera's weight.
In addition to manual operation, the d4 also offers the precision of separate gear-driven vertical/horizontal movements when the locking levers are fixed, with quick release clutches for fast large adjustments.
Another notable feature is the separate 360° panning devices at the top and at the base of the head. The bottom device allows for camera alignment, while the top device facilitates the performance of accurate panoramas and rotational stitching. Two spirit levels, arranged at 90° angles underneath the upper panorama adjustment, are sufficiently visible to facilitate effective leveling, even from a low viewpoint. This head is compatible with either classic Arca-Swiss-type or newer Arca-Swiss MonoballFix-type camera plates. In the Box Arca-Swiss d4 Tripod Head with a Classic Knob Quick Release (Geared) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss d4 Tripod Head with a Classic Knob Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss d4 Specs | | | Head Type | Ball Head | | Quick Release Plate Type | Arca-Type, Classic Arca Swiss | | Load Capacity | 75 lb / 34 kg | | Number of Bubble Levels | 2 | | | | Lateral Tilt | -40
