User Manual for Arca-Swiss F-Classic 5x7 View Camera Click to enlarge the picture
Contents of the user manual for the Arca-Swiss F-Classic 5x7 View Camera
- Product category: Large Format Cameras Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Large Format Cameras
|
User manual for the Arca-Swiss F-Classic 5x7 View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

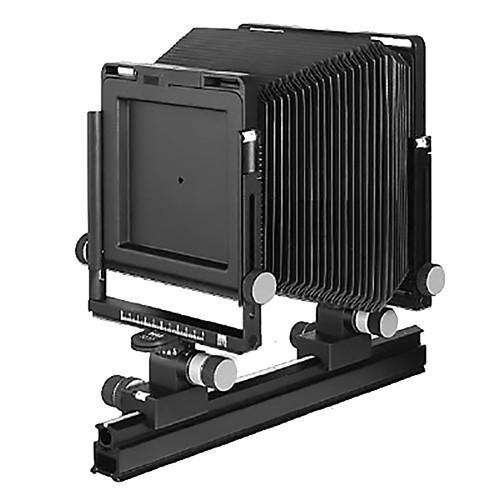

Product description The Arca-Swiss F-Classic 5x7 View Camera is an incredibly precise and professional view camera that features calibrated, easily accessed control blocks (they call them 'function carriers). Focusing is done with your right hand, with finely geared control available from both the front and the rear standard, unlike most field cameras. All camera movements are done on the left. This "F-Classic" version of the 5x7 format offers a basic telescoping bench rail, which fully accommodates the included 500mm bellows. It can be extended with optional longer bellows and bench extensions. The 5x7 F offers an incredible 100mm of rise on the rear standard to reach down into elevated views, along with 75mm of rise and 25mm of fall on the front standard. The front rise is especially helpful with ground-level architecture. It has 50mm of lateral shift on each standard as well, and offers unlimited vertical swing movement to allow you to remove the bellows (which is a quick procedure) and pack the camera flat. The monorail slides directly into any tripod with an Arca-type quick release clamp, which is itself an adored professional standard. The Arca-Swiss 5x7 is a high quality professional's tool that is ideal for use with 5x7 film (a host of B&W options remain), medium format film backs (up to 6x17), and digital backs with interfaces such as the Silvestri 5x7 Sliding Back Adapter. - An incredibly precise view camera made in France
- Fully modular system with extensive accessories for viewing, conversion, etc.
- Great for use with digital backs and lenses (requires digital back 5x7 interface, such as Silvestri 5x7 Sliding Adapter)
- Standard telescoping 40-60cm bench rail
- Conical 500mm bellows comfortably accommodate all camera positions within the bellows range without interference
- Rapid, friction-based ungeared movements
- 75mm of rise and 25mm of fall upon front standard
- 100mm of rise upon rear standard
- 50mm of lateral shift upon each standard
- Standard 141mm lensboard easily accommodates #1 shutters in recessed boards (adapters are available to accept Linhof Technika-type or Arca-Swiss 110mm lensboards)
- Rail inserts directly into any Arca-type quick release
In the Box Arca-Swiss F-Classic 5x7 View Camera Monorail - Expanding/Telescopic - 40cm fewrqrwbyyaeytvwtbsftstcswsxzxqwy Function Carrier for F-Line Function Carrier with Markings for F-Line - Rear 4x5" Format Frame for Front F Line - 141mm #062021 Rear Format Frame #088012 5x7 Film Holder & Groundglass Frame with Fresnel 50cm Synthetic Bellows for 4x5" Camera, 141mm Standard 5 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss F-Classic 5x7 View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss 12157 Specs Tilts | Front and Rear Base: 30° forward and backward | Swings | Front and Rear: 45 ° left and right, calibrated 360° total swing capability | Rise & Fall | Front: 75mm rise, 25mm fall Rear: 100mm rise only | Shifts | Front and Rear: 2" (50mm) left and right | Camera Back | 5x7" Vertical/Horizontal quick-change Standard Groundglass with grid-lines and fresnel screen | Interchangeable Bellows | Yes | Minimum Extension | 3.2" (80mm) with standard bellows and flat lensboard 2.6" (65mm) with standard bellows, 13mm recessed lensboard 2.2" (55mm) with wide-angle bellows, 13mm recessed lensboard | Maximum Extension | 500mm Bellows 40-60cm Telescopic monorail | Lensboard | 141 x 141mm Arca-Swiss | Dimensions | Not Specified by Manufacturer | Weight | 8.4 lbs (3.8kg) |
