User Manual for Arca-Swiss F-Classic C 4x5 View Camera Click to enlarge the picture
Contents of the user manual for the Arca-Swiss F-Classic C 4x5 View Camera
- Product category: Large Format Cameras Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Large Format Cameras
|
User manual for the Arca-Swiss F-Classic C 4x5 View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

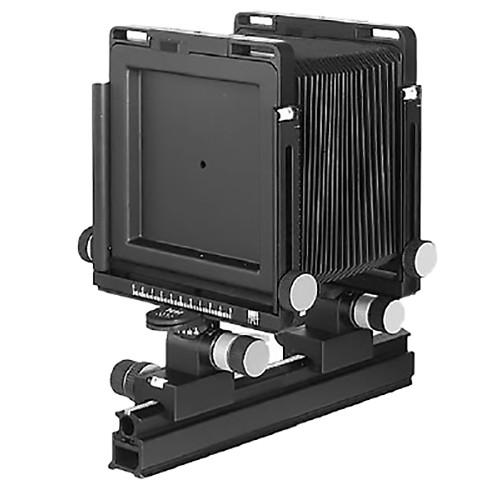

Product description The Arca-Swiss F-Classic C 4x5 View Camera is an incredibly precise and professional view camera that features calibrated, easily accessed control blocks (they call them 'function carriers). Focusing is done with your right hand, with finely geared control available from both the front and the rear standard, unlike most field cameras. All camera movements are done on the left. This "C" version of the F-Classic 4x5 camera includes a compact 30cm collapsing bench rail, which offers built-in extension to 300mm but also can be folded in half for storage. The 4x5 F offers an incredible 100mm of rise on each standard, with 50mm of lateral shift on each standard as well. It also offers unlimited vertical swing movement, to allow you to remove the bellows (which is a quick procedure) and pack the camera flat-making it a truly compact piece of equipment. The monorail slides directly into the included extension bracket, which itself fits into any tripod with an Arca-type quick release clamp. The Arca-Swiss 4x5 is a high quality, easily transported, professional's tool that is ideal for use with 4x5 film, medium format film backs (up to 6x12), and digital backs made to fit medium format SLR system cameras or the 4x5 international Graflok standard. - An incredibly precise view camera made in France
- Fully modular system with extensive accessories for viewing, conversion, etc.
- Great for use with digital backs and lenses
- Collapsing 30cm bench rail with included extension bracket
- Conical 380mm bellows comfortably accommodate all camera positions within the monorail's range without interference
- Rapid, friction-based ungeared movements
- 100mm of rise upon each standard
- 50mm of lateral shift upon each standard
- Standard 141mm lensboard easily accommodates #1 shutters in recessed boards (adapters are available to accept Linhof Technika-type or Arca-Swiss 110mm lensboards)
- Rail inserts directly into any Arca-type quick release
In the Box Arca-Swiss F-Classic C 4x5 View Camera Monorail - 30cm Collapsible/Folding - with Extension Bracket zzbrzaudux Extension Bracket II (Tripod Mount/Rail Clamp, 3.35") Function Carrier for F-Line Function Carrier with Markings for F-Line - Rear 4x5" Format Frame for Front F Line - 141mm 4x5" Format Frame for Rear F Line - 141mm 4x5 Filmholder Adapter Replacement Groundglass, Frame and Fresnel 4x5 Standard Bellows (38cm) 5 Year Manufacturer's Warranty Note: Lens Board not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss F-Classic C 4x5 View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss F-Classic C Specs Tilts | Front and Rear (base): 30° forward and backward | Swings | Front and Rear: 45° left, right - calibrated 360° swing capability | Rise & Fall | Front and Rear: 3.9" (100mm) rise only | Shifts | Front and Rear: 2" (50mm) left and right | Camera Back | 4x5" Vertical/Horizontal quick-change Standard Graflok Groundglass with grid-lines, 6x7, 6x9, 6x12 and Polaroid markings, and fresnel screen | Interchangeable Bellows | Yes | Minimum Extension | With standard bellows and flat lensboard: 3.2" (80mm) With standard bellows and 13mm recessed lensboard: 2.6" (65mm) With wide-angle bellows and 13mm recessed lensboard: 2.2" (55mm) | Maximum Extension | 380mm (requires 40cm monorail) | Lensboard | 141mm x 141mm Arca Swiss | Dimensions | Not Specified by Manufacturer | Weight | 7.0 lbs (3.2kg) | | Package Weight | 6.975 lb | Box Dimensions (LxWxH) | 15.3 x 13.7 x 5.5" |
