User Manual for Arca-Swiss M-Monolith 4x5 View Camera Click to enlarge the picture
Contents of the user manual for the Arca-Swiss M-Monolith 4x5 View Camera
- Product category: Large Format Cameras Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Large Format Cameras
|
User manual for the Arca-Swiss M-Monolith 4x5 View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

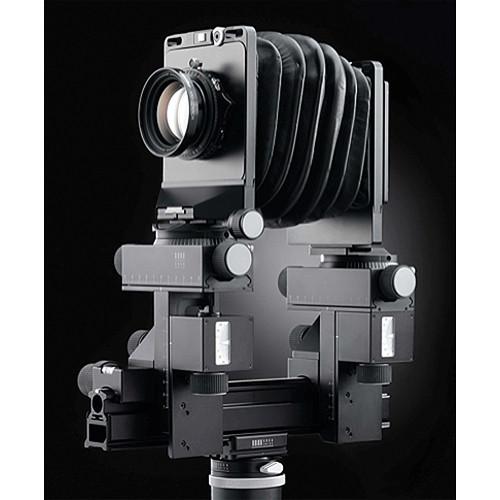

Product description The Arca-Swiss F-Monolith 4x5 View Camera is an incredibly precise and professional studio view camera that features calibrated, finely geared, and easily accessed control blocks (they call them 'function carriers). It is absolutely ideal for use with digital backs. Focusing is done with your right hand, with geared control available from both the front and the rear standard. All camera movements are done on the left. The F-Monolith 4x5 camera includes a telescoping 40cm bench rail, which fully accommodates the included 380mm bellows. It can be extended with optional longer bellows and bench extensions. The 4x5 F-Monolith offers 70mm of geared rise and 50mm of geared shifts upon each standard, with 50mm of additional ungeared lateral shift if needed. It also offers Arca-Swiss' "Orbix" geared center-based front tilt, which allows the lens to essentially rotate around its optical axis so that the entire image on the groundglass essentially remains stationary during tilts and swings, with only the focus planes being altered. The M-Monolith's monorail itself slides directly into any tripod with an Arca-type quick release clamp, itself an adored professional standard. The M-Monolith, with its precise gearing, is perfect for use atop Arca-Swiss' C1 Cube tripod head, or any other geared tripod head. - An incredibly precise view camera made in France
- Fully modular system with extensive accessories for viewing, conversion, etc.
- Perfect for studio use of digital backs and lenses
- Standard telescoping 40cm bench rail
- Conical 380mm bellows comfortably accommodate all camera positions within the monorail's range without interference
- Geared rise, shift, tilt, and swing-with no backlash
- 70mm of geared rise and ±50mm of geared shift upon each standard
- 50mm of additional ungeared lateral shift upon each standard, for 100mm of available total lateral displacement
- Arca-Swiss "Orbix" geared center-based tilt to ease control of focusing planes
- Standard 141mm lensboard easily accommodates #1 shutters in recessed boards (adapters are available to accept Linhof Technika-type or Arca-Swiss 110mm lensboards)
- Rail inserts directly into any Arca-type quick release
In the Box Arca-Swiss M-Monolith 4x5 View Camera Monorail - Expanding/Telescopic - 40cm frdczdbruq Function Carrier for M-Line Monolith - Front Function Carrier for M-Line Monolith - Rear 4x5" Format Frame for Front - M Line Monolith - 141mm 4x5" Format Frame for Rear - M Line Monolith - 141mm 4x5 Filmholder Adapter Replacement Groundglass, Frame and Fresnel 4x5 Standard Bellows (38cm) frdczdbruq 5 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss M-Monolith 4x5 View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss M-Monolith Specs | Tilts | Front: Axis: 30° forward and backward
Base: 45 ° forward and backward
Rear: Base Only: 45° forward and backward | | Swings | Front and Rear: 45° Left and Right, geared | | Rise & Fall | Front (geared): 2.75" (70mm) rise, Rear (geared): 2.75" (70mm) rise | | Shifts | Front and Rear: 2" (50mm) left and right, 50mm non-geared | | Camera Back | 4x5 Vertical/Horizontal quick-change Standard Graflok
Groundglass, grid-lines, 6x7, 6x9, 6x12, Polaroid markings, Fresnel | | Interchangeable Bellows | Yes | | Minimum Extension | 3.2" (80mm) with standard bellows and flat lensboard
2.6" (65mm) with standard bellows, 13mm recessed lensboard
2.2" (55mm) with wide-angle bellows, 13mm recessed lensboard | | Maximum Extension | 380mm Bellows
15.7 - 25.6" (40-65cm) Telescopic monorail | | Lensboard | 141 x 141mm Arca-Swiss | | Dimensions | 16 x 9.8 x 14.5" (41 x 25 x 37cm) LWH | | Weight | 11.7 lbs (5.3kg) | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 14.4 x 10.9 x 10.3" |
