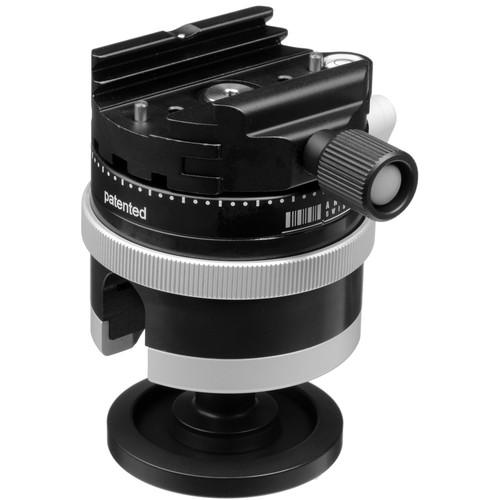

User Manual for Arca-Swiss Monoball p0 Ball Head with Classic Quick Release Click to enlarge the picture
Contents of the user manual for the Arca-Swiss Monoball p0 Ball Head with
- Product category: Tripod Heads Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Tripod Heads
|
User manual for the Arca-Swiss Monoball p0 Ball Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|
Product description The Arca Swiss Monoball p0 with Classic Quick Release is an unconventional ball head built with portability, simple functionality and performance in mind. Its minimalist design is indicative of its ease of operation. The Monoball p0 has an inverted, aspheric-shaped ball. This means that as the camera is tilted further from the horizontal plane it meets increased resistance, which is desirable if you have a heavy camera or long telephoto mounted on the head. The p0's 44 lb load capacity comes in a very compact package, being about the size of an average 50mm SLR lens while weighing in at less than 1 lb. Turning the highly visible knurled collar on the body will lock even a large camera firmly in place; no need to fumble for the locking knob which may be out of sight. The unique design of the head has negated the need for any lubricating grease which can work against the user and produce "head creep" which can lead to your tripod and camera tipping over.
Inside the head three locking "planets" clamp firmly around the ball, applying even force on all sides. This arrangement also ensures that all camera movements are smooth in any axis. The inverted ball design provides greater stability in keeping the camera's center of gravity closer to the center of the ball. The p0 allows for a full 90° of tilt. Placing the head's panning system directly below the camera ensures that the panning motion is directly aligned with the camera itself and does not deviate from the same plane. The locking lever for the pan head is the only external control on the Monoball p0. - Knobless Design
- Locking operation is facilitated by simply turning the highly visible knurled ring on the body of the head. It is easy to feather control between loose and firm lock.
- Panning Mechanism
- Situating the panning mechanism directly below the camera plate, instead of in the base of the head, means that the pan is always in the same plane as the camera.
- Aspheric Ball
- The aspheric shape of the ball gives progressive resistance to tipping and can prevent accidents.
In the Box Arca-Swiss Monoball p0 Ball Head with Classic Quick Release Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss Monoball p0 Ball Head with Classic Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss 801-214 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 44.1 lb / 20 kg | | Number of Bubble Levels | 1 | | | | Dimensions |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
