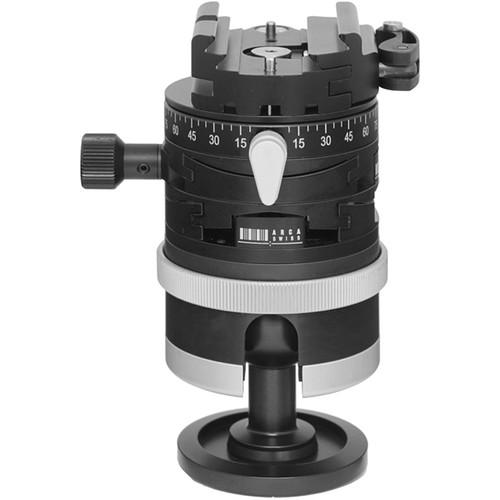

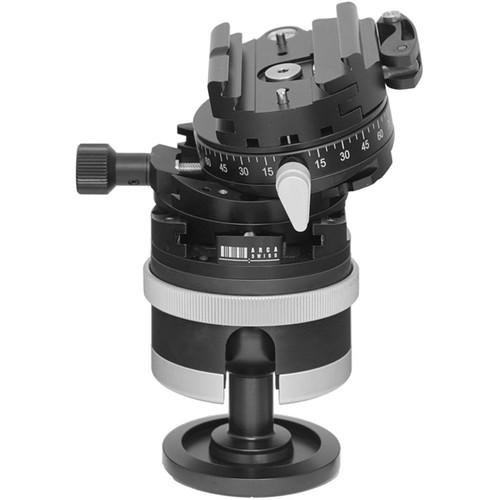

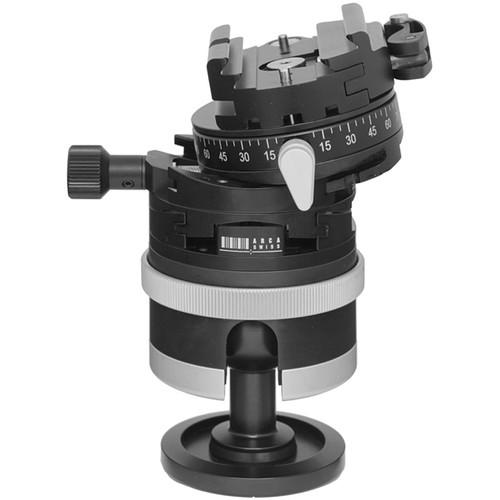

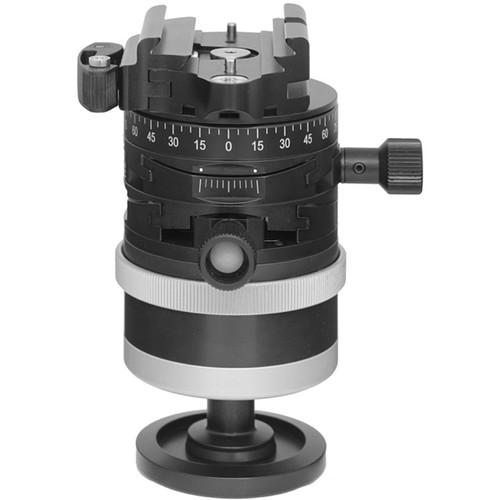

User Manual for Arca-Swiss Monoball p0 Hybrid Ball Head with Flip Lock Quick Release Click to enlarge the picture
Contents of the user manual for the Arca-Swiss Monoball p0 Hybrid Ball Head
- Product category: Tripod Heads Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Tripod Heads
 |
User manual for the Arca-Swiss Monoball p0 Hybrid Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|
Product description The Monoball p0 Hybrid Ball Head Flip Lock Quick Release from Arca-Swiss has a unique design that combines the light weight and straight-forward simplicity of the original p0 head with the geared precision movements of the C1 Cube. The p0 Hybrid employs an aspheric ball with 3-point locking that enables smooth adjustments and secure lockdown, allowing the 1.1 lb support to handle loads up to 44 lb. The photographer or videographer first makes coarse leveling and alignment adjustments, locks them down, and makes fine adjustments of plus or minus 10 degrees on the x and y axis using the head's 2 self-locking geared segments. You can then use the swivel stage above the geared sections for a completely level 360-degree rotation without further adjustments. This version of the head has a Flip Lock quick release. The quick release uses all standard Arca-type compatible camera plates. If using multiple independent brand plates other than Arca, it is important that they all be of the same brand to avoid accidents due to inconsistencies in manufacture. - Knobless Design
- Locking operation is facilitated by simply turning the highly visible knurled ring on the body of the head. It is easy to feather control between loose and firm lock.
- Panning Mechanism
- Situating the panning mechanism directly below the camera plate, instead of in the base of the head, means that the pan is always in the same plane as the camera.
- Aspheric Ball
- The aspheric shape of the ball gives progressive resistance to tipping and can prevent accidents.
In the Box Arca-Swiss Monoball p0 Hybrid Ball Head with Flip Lock Quick Release Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss Monoball p0 Hybrid Ball Head with Flip Lock Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss Monoball p0 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 44 lb / 20 kg | | Number of Bubble Levels | 1 | | | | Dimensions |
