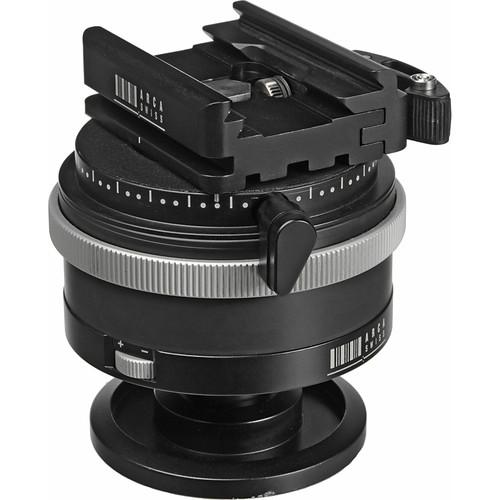

User Manual for Arca-Swiss Monoball P1 S with Quick Set Device Flip-Lock Click to enlarge the picture
Contents of the user manual for the Arca-Swiss Monoball P1 S with Quick
- Product category: Tripod Heads Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Tripod Heads
|
User manual for the Arca-Swiss Monoball P1 S with Quick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|
Product description The Arca Swiss Monoball P1 S with Quick Set Device Flip-Lock is a unique, entirely re-engineered type of ballhead that improves on the conventional ballhead design. The first noticeable difference is the "upside-down" design of this ballhead. Instead of having a ball that rests inside a ball-housing, the entire P1's ball-housing sits on top of the ball. Three small gears surround the ball and apply a uniform, synchronized force around the ball, thus ensuring smooth movement of the installed camera in all axes. Another major difference with the P1 head is the conspicuous absence of a locking knob. Instead of using a lever or knob, you lock down the head by turning the knurled ring, which is positioned between the camera platform and the ball. This means that whichever orientation the head may be positioned in front of you, you can blindly reach for the ballhead and turn the knurled ring to set the camera, without having to fumble for the locking knob. The panning system is unconventionally located above the ball, just below the camera mount. This allows the 360° panoramic rotation to be kept in line with the vertical axis. Ever since their introduction over forty years ago, the Arca Swiss Monoballs have been at the forefront of quality and performance. Today, their unique shape (an ellipse rather than a sphere) is still what separates them from all others. With other ballheads, no matter how good the tension modulation is, invariably you will need to increase the tension control as you move the load away from the center. This is because gravity has a greater effect on gear when not perfectly level. - Includes the Flip-Lock quick release system, which offers double safety locking feature, with instant flip-lock release of the clamp. This also allows for faster mounting and dismounting of cameras.
- Maximum tilt range of 35°
- Base diameter of 2.5" (65mm)
In the Box Arca-Swiss Monoball P1 S with Quick Set Device Flip-Lock Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss Monoball P1 S with Quick Set Device Flip-Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss P1 S Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Load Capacity | 66 lb / 30 kg | | Number of Bubble Levels | None | | Friction Control | Yes | | | | Dimensions | H: 3.6" / H: 91.0 mm | | Weight | 1.2 lb / 550.0 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.3 x 6.2 x 4.1" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
