User Manual for Arca-Swiss Monoball X-Table System Click to enlarge the picture
Contents of the user manual for the Arca-Swiss Monoball X-Table System
- Product category: Other Macro Accessories Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Other Macro Accessories
|
User manual for the Arca-Swiss Monoball X-Table System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

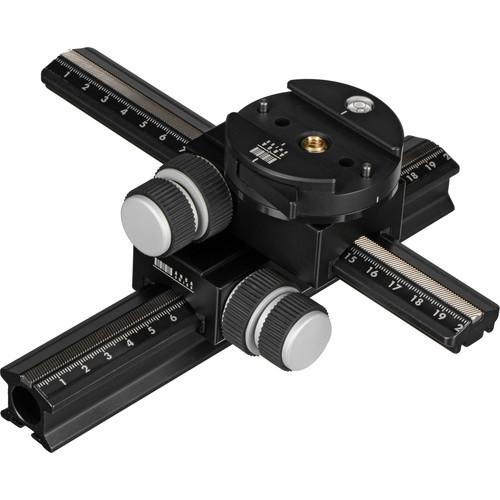

Product description The Monoball X-Table System from Arca-Swiss is a geared optical bench designed specifically for macro photography. It comprises two finely geared 8" rails mounted at right angles, in X and Y axes. The rails are etched with millimeter markings along their length to aid in proper focus. The rails run through two cross-mounted focusing carriers which allow for fine camera movement along their length. Both carriers feature a friction knob and an adjustment knob so you can position your camera with extreme accuracy. The top carrier has an Arca-Swiss MonoballFix quickset clamp on top with which to mount your camera. The clamp has an incorporated bullseye level to aid in alignment. The base monorail can be mounted directly into a quick release clamp without a quick release plate. - Components
- 041120 Base Monorail 8" (20 cm)
041036 Top Monorail 8" (20 cm)
802012 Quickset Device MonoballFix with 1/4"-20 mounting thread
802013 MonoballFix Quickset Device Base for camera plates
052010 2 Carriers for MonoballFix system In the Box Arca-Swiss Monoball X-Table System Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss Monoball X-Table System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArca-Swiss 802330 Specs | Maximum Movement | X Axis: 7" (18 cm)
Y Axis: 7" (18 cm) | | Quick Release | Yes | | Head Mount Thread Size | 1/4"-20 | | Weight | 1.57 lb (712 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.7 x 6.4 x 4.4" |
