User Manual for Arca-Swiss Monoball Z1 sp with Quick Release Click to enlarge the picture
Contents of the user manual for the Arca-Swiss Monoball Z1 sp with Quick
- Product category: Uncategorized Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Uncategorized
 |
User manual for the Arca-Swiss Monoball Z1 sp with Quick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

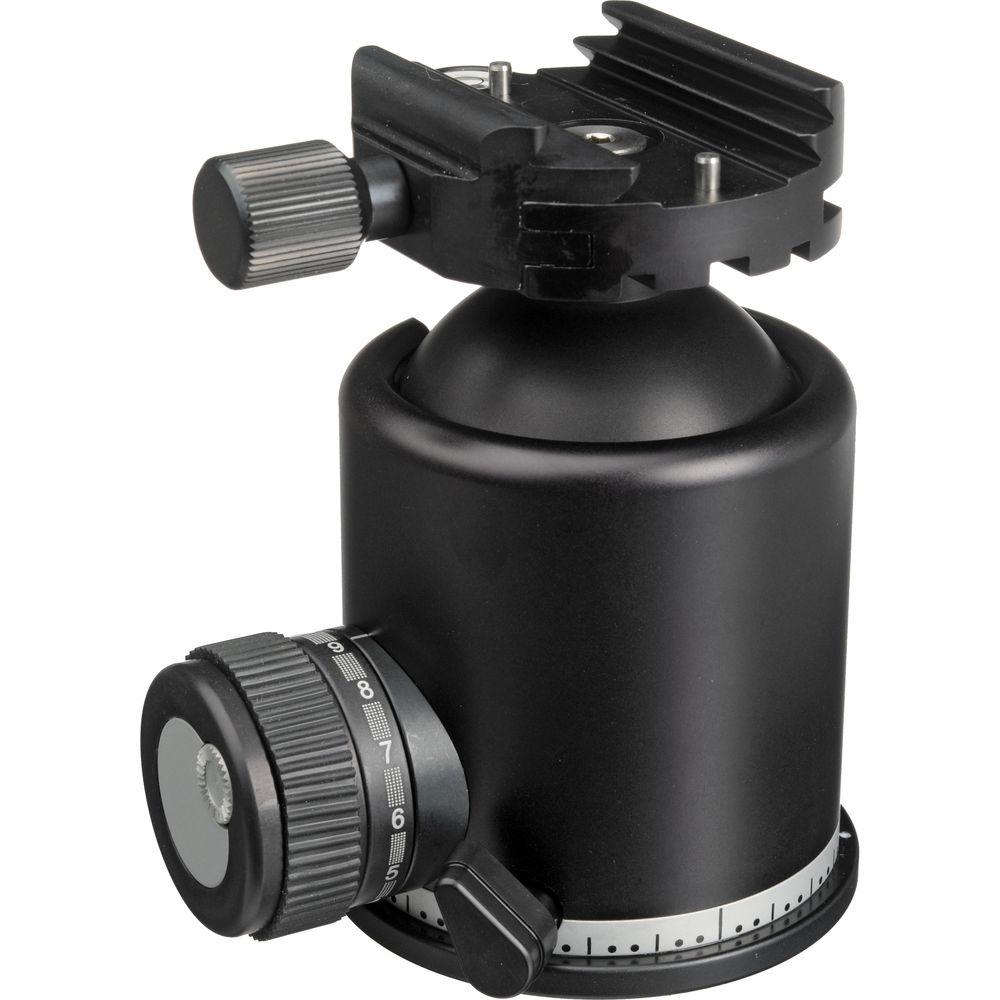

Product description The Arca Swiss Monoball Z1 sp (Single Pan) Ballhead builds on the success and popularity of their B-series ballheads. Z-Series ballheads are just as elegant, and even more perfect. The size and weight of the ball heads have been significantly reduced. The ball and fastening are now assembled using a patented bayonet mount. Various accessories can thus be quickly mounted to adapt the tripod as required. In addition to the proven, patented Arca-Swiss features, including aspherical ball heads, axial clamping and PMF (progressive motion related friction control), the Z-Series also boasts new technical developments and optimized materials and coatings. The Z series can withstand an incredible 130 lb (59 kg) off-axis. This model is the "sp" version, which features a single panning base. The Z1 head is also available as the "dp" version, with a double panning design. Ever since their introduction over forty years ago, the Arca Swiss Monoballs have been at the forefront of quality and performance. Today, their unique shape (an ellipse rather than a sphere) is still what separates them from all others. With other ballheads, no matter how good the tension modulation, you invariably will need to increase the tension control as you move the load away from the center. This is because gravity has a greater effect on gear when not perfectly level. - The Arca Swiss Monoball eliminates the need to modulate the tension, because its elliptical nature corrects it by virtue of its own design. The load stays exactly where you tell it to once it's locked into position. A separate control is set to apply a constant minimum friction, which allows the photographer the peace of mind that comes with knowing that his gear will never move of its own volition. The heavier the equipment, the more the advantages of the Arca Swiss become evident.

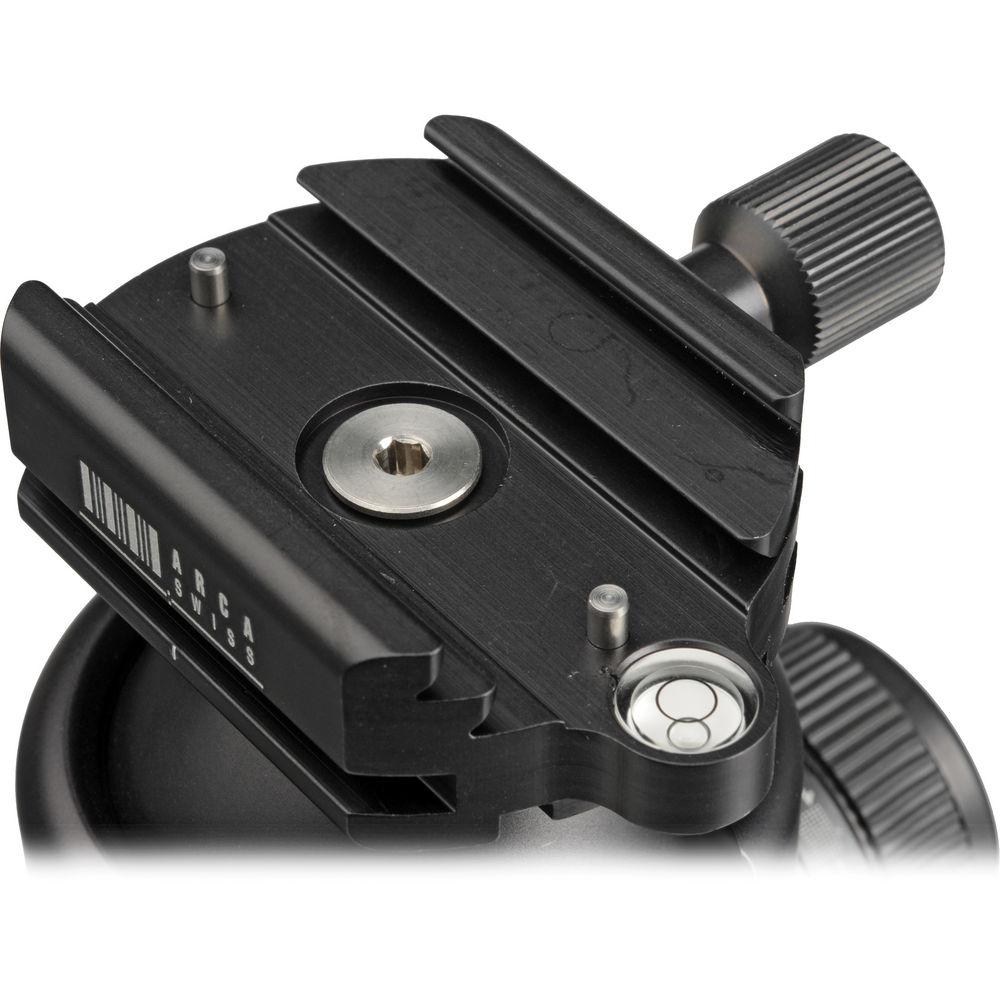

- The ballhead includes the "Arca" style quick release system for quick mounting and dismounting of cameras. This head now features the restyled quick release clamp, which features spring-loaded detent pins on both ends that project into the pockets or windows that are cut into the bottom of most manufactures quick release plates. Detent pins will prevent the plate from accidentally sliding out in the event that the knob is partially loosened. It also features a bubble level built in directly to the clamp.
- A tension adjustment thumb-dial is built into the indexed friction control knob.
- Base diameter of 2.7" (69mm), excluding knobs
In the Box Arca-Swiss Monoball Z1 sp with Quick Release Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arca-Swiss Monoball Z1 sp with Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Arca-Swiss Monoball Z1 sp with Quick Release can be downloaded in PDF format at the link stated below.
Technical parameters | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Load Capacity | 130 lb / 59 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | | | Dimensions | H: 4.0" / H: 10.0 cm | | Weight | 1.4 lb / 635.0 g |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
