User Manual for Arca-Swiss Universal L-Bracket Click to enlarge the picture
Contents of the user manual for the Arca-Swiss Universal L-Bracket
- Product category: Tripods & Support Arca-Swiss
- Brand: Arca-Swiss
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arca-Swiss Tripods & Support
|
User manual for the Arca-Swiss Universal L-Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arca-Swiss product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arca-Swiss user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arca-Swiss product will considerably shorten its lifespan!
|

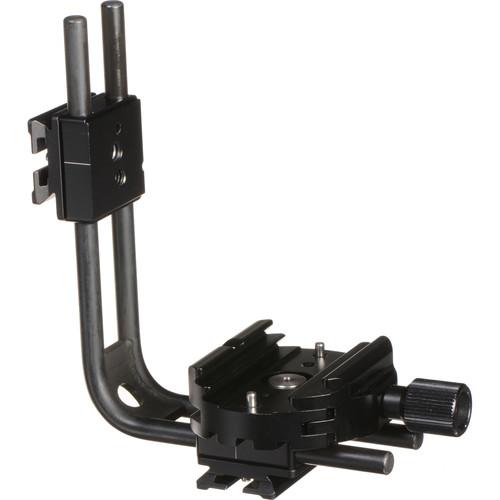

Product description The Universal L-Bracket (Twist-Lock) from Arca-Swiss is an adjustable L-bracket designed to work with most DSLR, mirrorless, and compact cameras.
The primary function of any L-bracket is to allow the users to quickly and easily transition their camera from landscape to portrait orientation without having to tilt the camera head into portrait position. This function gives the user a number of advantages including no loss of height, maintaining their camera's center of gravity, and pivoting their camera from a single position in portrait orientation - a feature valued most when taking panoramic photographs.
This L-bracket has been designed specifically for universal use with most camera models and features a built-in quick release for quick mounting and dismounting. Like many L-brackets, this features Arca-type dovetail plates on both the vertical and horizontal axis - but unlike most brackets, it also features a twist-lock quick release clamp on the horizontal axis, requiring the camera to already be mounted to an Arca-type plate. This camera plate is not included with the bracket and must be purchased separately.
The bracket also features a length adjustment lock which allows the user to lengthen or shorten the bracket depending on the size of the mounted camera body. The mounting plate also features two standard safety stops, a bubble level, and is designed to work with standard Arca-type plates and clamps. In the Box Arca-Swiss Universal L-Bracket (Twist-Lock) Limited 3-Year Warranty Table of Contents
|
