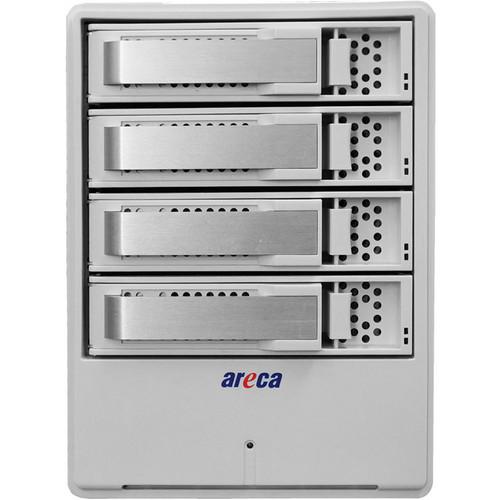

User Manual for Areca 12TB Thunderbolt ARC-5026 RAID Storage Click to enlarge the picture
Contents of the user manual for the Areca 12TB Thunderbolt ARC-5026 RAID Storage
- Product category: Hard Drive Arrays Areca
- Brand: Areca
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Areca Hard Drive Arrays
|
User manual for the Areca 12TB Thunderbolt ARC-5026 RAID Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Areca product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Areca user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Areca product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More ddfbqddesfyrcrxryabyusecwcydzbfdezeew The 12TB Thunderbolt ARC-5026 RAID Storage from Areca features a large 12TB storage capacity made possible through the use of 4 x 3TB hard drives. These drives can be formatted in a variety of RAID configurations including RAID 0, 1, 3, 5, 6, and 10 along with Single Disk and JBOD. The versatile RAID configuration options ensure you can setup your storage array to provide extensive data backup or ultra fast data transfer and data backup speeds.
With both Thunderbolt and USB 3.0 interfaces, you benefit from enhanced performance and improved flexibility. Thunderbolt connectivity lets you move data between high-resolution displays and high-performance data devices through a single, compact port. A single cable attached to one of the ports provides 2 channels each capable of achieving data transfer rates of up to 10 Gb/s. Additionally, the integrated USB 3.0 port is also capable of enhanced data transfer rates of up to 5 Gb/s. - Thunderbolt Technology
- The ARC-5026 features both Thunderbolt and SuperSpeed USB 3.0 interfaces. Thunderbolt technology is a high-speed dual-protocol I/O technology designed for performance, simplicity and flexibility. Thunderbolt I/O technology lets you move data between high-resolution displays and high-performance data devices on a single, compact port. Both data and display signals can be sent and received at the same time through dual 10 Gb/s channels. A single cable attached to one of the ports provides 2 channels able to achieve the 10 Gb/s speeds flowing both way s simultaneously. A single Thunderbolt port supports hubs as well as a daisy chain of up to seven Thunderbolt devices. To improve bandwidth transmission, Thunderbolt has implemented two duplex (PCIe and DisplayPort) channels into the controller and each channel can provide full bi-directional performance.
- Easy RAID Management
- Configuration and monitoring can be managed through the Thunderbolt port using the firmware-embedded web browser-based RAID manager (McRAID). This McRAID manager allows local or remote access from any standard Internet browser via the Archttp utility. The ARC-5026 Thunderbolt RAID storage solution also provides an API library allowing customers to combine it with their own monitor utility. The Disk Stress Test (DST) utility kicks out disks meeting marginal specification requirements before the RAID unit is actually put on-line.
With intelligent cooling, the RAID enclosure continuously adapts to environmental conditions by automatically controlling the speed of the cooling fans. This silent design creates a balance between noise reduction and necessary cooling, making the ARC-5026 well suited for audio/video applications. - Enhanced Performance
- The ARC-5026 is a 4-bay 6 Gb/s SATA Thunderbolt/USB 3.0 storage enclosure with RAID control capabilities designed for a Mac environment. The Thunderbolt host interface makes the ARC-5026 RAID storage well suited for SOHO group professionals. The integrated Thunderbolt technology allows for high-speed data transfers with speeds up to 10 Gb/s. The Thunderbolt port can also be shared by multiple devices while transferring data equally to all connected devices. The ARC-5026 also comes with an integrated on-board high-performance ARM-based storage processor and 1GB DDR3 SDRAM complete with ECC protection.
- Improved Data Availability
- With support for a variety of RAID configurations you can choose from configurations designed to backup your important data, to configurations that streamline the data storage process with ultra-fast data read and write speeds. With support for SATA connectivity and the ability to utilize solid-state storage drives you benefit from enhanced levels of performance as well as enterprise level data protection.
UPC: 898041003384 In the Box Areca 12TB Thunderbolt ARC-5026 RAID Storage 4 x 3TB Hard Drives Installation CD RJ-45 LAN Cable Power Cord USB 3.0 Cable 16 x Drive Mounting Screws (4 x per Drive Tray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Areca 12TB Thunderbolt ARC-5026 RAID Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAreca ARC-5026 Specs | Capacity | 12 TB
4 x 3 TB hard drives | | Processor | ARM-based storage I/O processor | | RAM | 1 GB on-board SDRAM with ECC protection | | Cache | Write-through or write-back cache support | | SATA Ports | 4 x internal SATA 6 Gb/s | | RAID Levels | RAID 0, 1, 10(1E), 3, 5, 6, single disk or JBOD | | Drive Support | Up to 4 x 6 Gb/s SATA/SSD | | Host Connection | 2 x Thunderbolt ports
1 x USB 3.0 port | | Software Driver | Mac OS X 10.6.x / 10.7.x / 10.8.x
Windows 7 / Windows 8 | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 85% non-condensing | | Cooling Fan | 1 x 7200 rpm / 0.135 A brushless fan | | Power Supply | 135 W / 100-240 V AC / +19 V / 7.1 A | | System Requirements | Computer with Thunderbolt/USB 3.0 connector
Mac OS X 10.6.8 or higher
Windows 7, Windows 8
Thunderbolt cable | | Dimensions (WxHxD) | 4.84 x 6.51 x 9.11" / 123.00 x 165.60 x 232.00 mm | | Weight | 8.0 lb / 3.6 kg (without disk) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 11.8 x 9.6 x 7.5" |
