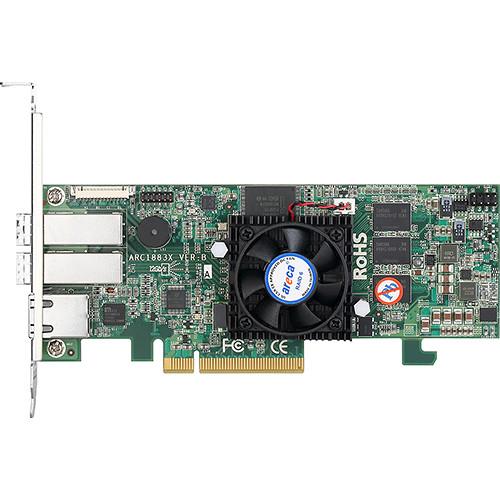

User Manual for Areca ARC-1883X 8-Port 12 Gb s SAS SATA RAID Adapter Click to enlarge the picture
Contents of the user manual for the Areca ARC-1883X 8-Port 12 Gb s
- Product category: Controller Cards Areca
- Brand: Areca
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Areca Controller Cards
|
User manual for the Areca ARC-1883X 8-Port 12 Gb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Areca product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Areca user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Areca product will considerably shorten its lifespan!
|
Product description The ARC-1883X 8-Port 12 Gb/s SAS/SATA RAID Adapter from Areca is equipped with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture, and PCIe 3.0 interface. It has a multi-adapter support for large storage requirements. The ARC-1883X adapter supports up to 256 SATA or SAS devices using SAS. It also supports HDD firmware update, SED (self-encrypting drives) function, and Command Line Interface (CLI). The adapter features NVRAM for RAID event and transaction log, and redundant flash image for controller availability. It also has Single Admin Portal (SAP) monitor utility and API library for customer to write monitor utility. The adapter supports online capacity expansion and RAID level migration simultaneously. - Write-through or write-back cache support
- Supports up to 4/8/12/16/24 internal or 4/8 external 12 Gb/s SAS ports
- BIOS boot array support for greater fault tolerance
- Supports up to 256 SATA or SAS devices using SAS expanders
- Boot support for the uEFI host BIOS
- Configurable stripe size up to 1MB
- Supports online array roaming, online RAID level/stripe size migration, and online volume set growth
- Supports global and dedicated hot spare
- Automatic drive insertion/removal detection and rebuilding
- Supports native 4K and 512 byte sector SAS and SATA devices
- Supports intelligent power management and background initialization
- Supports NTP protocol synchronize RAID controller clock over the on-board Ethernet port
- Multiple pairs SSD/HDD disk clone function
- Supports SSD automatic monitor clone (AMC) and controller level hardware encryption function
- System status indication through global HDD activity/fault connector, individual activity/fault connector, LCD/I2C connector, and alarm buzzer
- SMTP support for email notification and SNMP support for remote manager
- Enclosure management (SES-2, SMP and SGPIO) ready
- Field-upgradeable firmware in flash ROM
- Hot key "boot-up" McBIOS RAID manager via M/B BIOS
- Web browser-based McRAID storage manager via ArcHttp proxy server for all operating systems
- Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent, and Telnet function via Ethernet port
- Supports push button and LCD display panel (optional)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Areca ARC-1883X 8-Port 12 Gb s SAS SATA RAID Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAreca ARC-1883X Specs | I/O Processor | Dual Core RAID-on-chip 1.2 GHz | | Interface | PCIe 3.0 x8 lane host interface | | On-Board Cache | 2 GB onboard DDR3-1866 SDRAM | | Driver Connector | 2 x SFF-8644 | | Drive Support | Up to 256 12 Gb/s SAS or 6 Gb/s and 3 Gb/s SAS/SATA HDDs/SSD, using 12 Gb/s SAS expander | | Form Factor | Low Profile: 6.7 x 2.5" / 169.5 x 64.4 mm | | RAID Support | Multiple RAID selection
Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID 100)
RAID level 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, single disk, or JBOD | | System Requirements | Windows 10/8/Server 2012/7/2008/Vista/Server 2003/XP
Linux
FreeBSD
VMware (Driver 6.x support CLI in-band management utility) Solaris 10/11 x86/x86_64
Mac OS X 10.5.x or higher (EFI BIOS support) | | Operating Temperature | 41 to 140°F / 5 to 60°C | | Operating Humidity | 10 to 85%, non-condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90%, non-condensing | | Power Voltage | 12 V | | Wattage | 14.4 W | | Compliances | RoHS compliant | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.1 x 6.7 x 3.3" |
