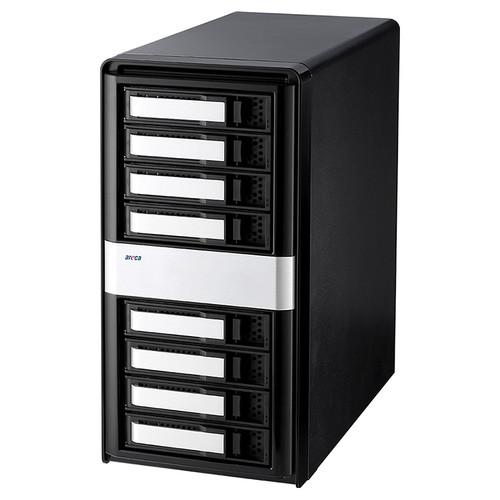

User Manual for Areca ARC-4038ML 8-Bay SAS Enclosure Click to enlarge the picture
Contents of the user manual for the Areca ARC-4038ML 8-Bay SAS Enclosure
- Product category: NAS Enclosures Areca
- Brand: Areca
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Areca NAS Enclosures
|
User manual for the Areca ARC-4038ML 8-Bay SAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Areca product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Areca user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Areca product will considerably shorten its lifespan!
|
Product description The ARC-4038ML 8-Bay SAS Enclosure from Areca provides eight storage bays and two SFF-8644 host interfaces to offer extra storage capabilities for a system outfitted with a RAID controller card. The two host interfaces utilize SAS technology that transfers data at rates of up to 12 Gb/s. The enclosure's eight bays are compatible with 2.5" and 3.5" storage drives, which feature a SAS or SATA interface. With an optional RAID adapter, you can configure the user-supplied drives for performance or redundancy. For powering and cooling the drives, one 220W power supply and two variable-speeds fans are on board. Moreover, the ARC-4038ML comes with a re-driver chip on its backplane to help ensure a reliable connection between your drives and host interface. - Cable-free 12Gb/s re-driver SAS/SATA backplane design for 8 removable drive trays
- Compatible with 12Gb/s SAS host bus adapter and 12Gb/s SAS RAID controllers
- Built-in intelligent cooling fans for self-contained ventilation and buzzer alarm
- Can be used with 2.5" drives without the use of converters
- LED indicators for fault and Activity/power on each HDD tray
In the Box Areca ARC-4038ML 8-Bay SAS Enclosure Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Areca ARC-4038ML 8-Bay SAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAreca ARC-4038ML Specs | Host Interface | 2 x SFF-8644 | | Host Cable | 1 or 2 x SFF-8644 to SFF-8644 | | Drive Interface | 8 x 12 Gb/s SAS/SATA | | Power Supply | 220 W | | Voltage Input | 90 to 265 VAC | | Power Rating | +12 V/16 A, +5 V/16 A, +3.3 V/14 A | | Cooling | 2 x 2700 rpm (0.135 A) brush-less fans | | Dimensions (W x H x D) | 5.7 x 11.9 x 11.4" / 14.6 x 30.2 x 29 cm | | Weight | 14.9 lb / 6.8 kg | | | | Package Weight | 30.1 lb | | Box Dimensions (LxWxH) | 15.3 x 13.7 x 7.5" |
