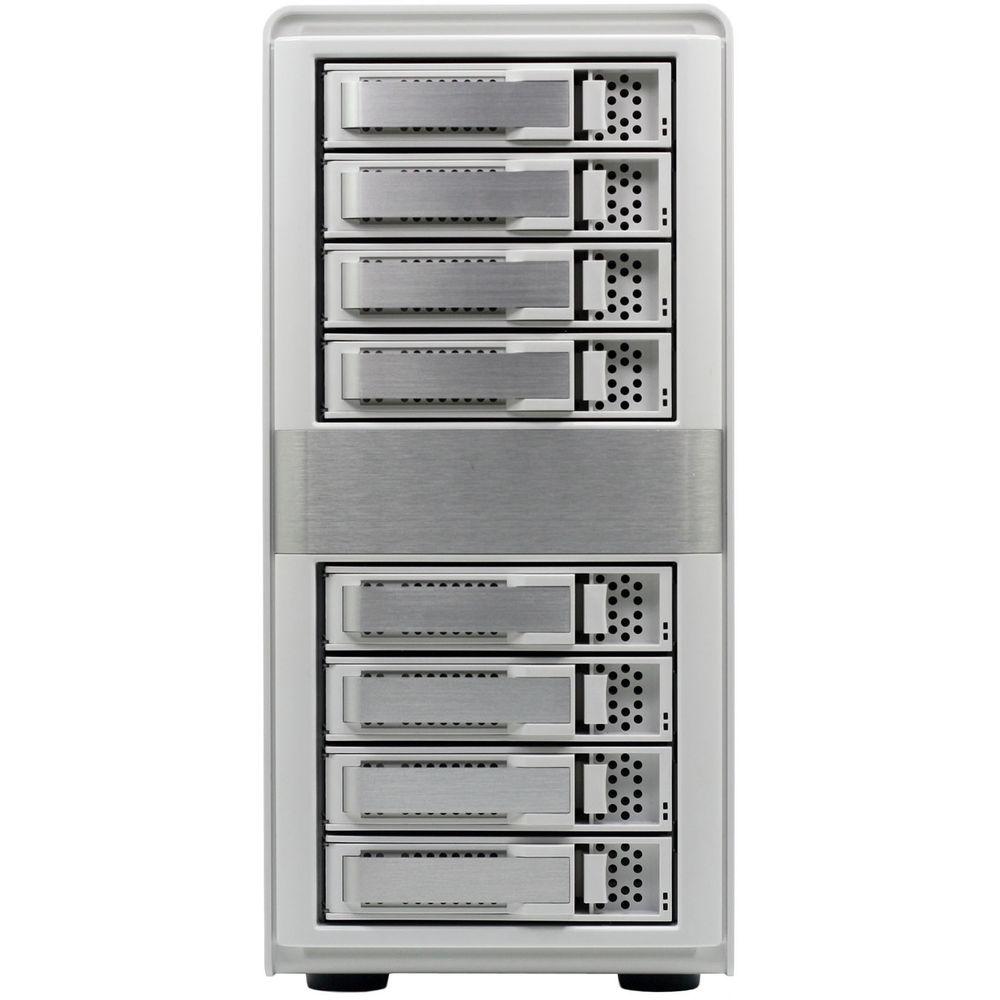

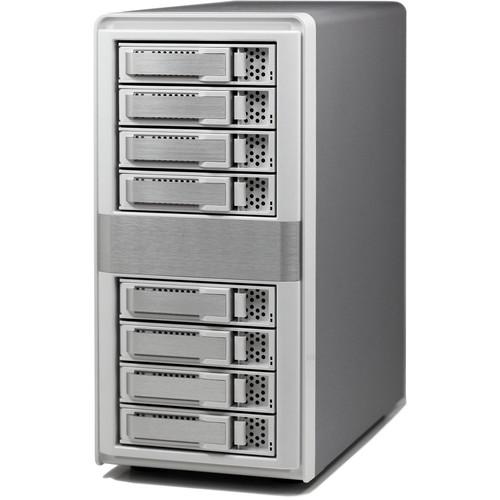

Product description The ARC-4038X 64TB 8-Bay RAID Array from Areca comes with a PCIe RAID controller, an external miniSAS HD cable, and eight 8TB Enterprise-Level HDDs, providing 64TB of raw storage.

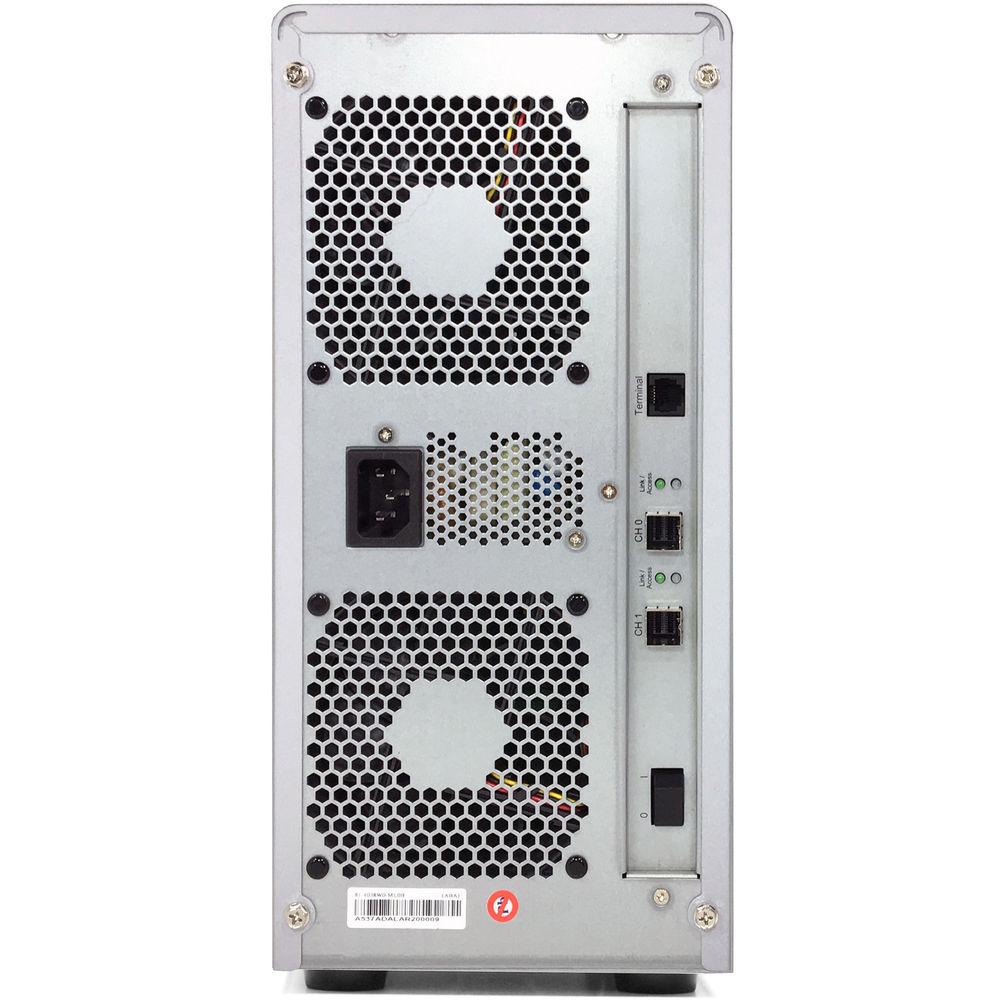

It offers a compact external storage chassis capable of accommodating drives with a SAS 12 Gb/s or SATA 6 Gb/s interface. The box can support both 2.5" and 3.5" disk drives, each one contained in a disk carrier. This compact tower provides one 6 Gb/s SFF-8088 SAS and four 12 Gb/s SFF-8644 connections. Out-of-band CLI can be redefined to the manufacture default setting on those connections. Configuration and environmental information are accessible either via in-band (SES-3.0 over SMP) or out-of-band serial port.
The ARC-4038 includes 8 internal plus 20 external SAS 12 Gb/s ports for host and easy expansion. It features SAS and LSI DataBolt bandwidth optimizer technology. This enclosure is compatible with SAS-enabled systems as well as 6 Gb/s drives and backplanes. Using DataBolt, the ARC-4038 buffers 6 Gb/s data and then transfers it out to the host at 12 Gb/s speeds in order to match the bandwidth between faster hosts and slower SAS or SATA devices.
The ARC-4038 contains an embedded expander manager that can access via in-band SES-3.0 over SMP protocol and out-of band RS-232 port. The ARC-4038 expander firmware and EPLD has implemented the SES-3.0 protocol and disk activity map to the individual fault/activity status indicator on the backplanes. It has autonomous chassis management of the power supply status connectors and two fan monitor/speed control connectors through the SES-3.0 protocol. The hardware monitor can keep track of system voltage and temperature as well as offer a warning message via an alarm buzzer and the corresponding LED.
The ARC-1883X PCIe RAID controller offers increased performance and improved enterprise data protection. This low-profile card is equipped with a 1.2 GHz dual-core ROC processor, 2GB of DDR3-1866 memory, and PCIe 3.0 interface. It supports up to 256 drives and provides two SFF-8644 ports. The drives are preconfigured in a single RAID 5 array, providing 56TB of usable storage. - Four 12Gb/s SFF-8644 and one 6Gb/s SFF-8088 SAS host and expansion connections
- LED activity/status in each drive carrier
- Daisy chain capacity expansion
- Plug & Play add capacity without shutting down
- Support CLI for conguration and environmental information
In the Box Areca ARC-4038X 64TB 8-Bay RAID Array (8 x 8TB) with PCIe RAID controller Power Cord External MiniSAS HD Cable PCIe RAID Controller RJ11 to RS-232 DB9 Cable RJ-45 LAN Cable 32 x Drive Mounting Screws Limited 3-Year Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Areca ARC-4038X 64TB 8-Bay RAID Array with PCIe RAID controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAreca ARC-4038-X64TB Specs | | | Total Raw Capacity | 64 TB | | Included Drives | 8 x 8 TB 3.5" HDD | | | | Number of Bays | 8 x 2.5"/3.5" | | Connections | 4 x Mini SAS (SFF-8644)
1 x Mini SAS (SFF-8088)
1 x RJ11 (UART)
1 x RJ45 (Management) | | Compatible Drive Interface | SAS-3, SATA III | | | | AC Input Power | 90 to 256 VAC, 50 / 60 Hz | | PSU Wattage | 220 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | | | Status Monitoring | LED Indicator | | Dimensions | 11.9 x 5.8 x 11.4" / 30.2 x 14.6 x 29.0 cm | | Weight | 14.9 lb / 6.8 kg |
