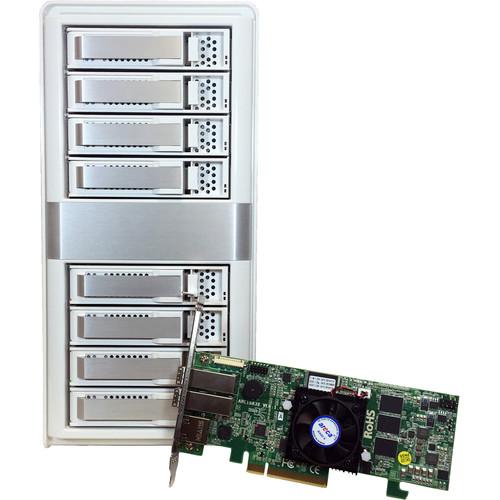

User Manual for Areca ARC-4038X 8-Bay 12Gb SAS Expander JBOD Tower Enclosure Click to enlarge the picture
Contents of the user manual for the Areca ARC-4038X 8-Bay 12Gb SAS Expander
- Product category: Hard Drive Enclosures & Docks Areca
- Brand: Areca
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Areca Hard Drive Enclosures & Docks
|
User manual for the Areca ARC-4038X 8-Bay 12Gb SAS Expander contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Areca product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Areca user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Areca product will considerably shorten its lifespan!
|
Product description With the ability to accommodate up to eight 12 Gb/s, Serial-Attached SCSI (SAS) drives or 6 Gb/s Serial ATA (SATA) drives, the ARC-4038X 8-Bay 12Gb SAS Expander JBOD Tower Enclosure from Areca users can quickly and easily expand their storage. This tower enclosure is capable of housing up to eight 2.5" and or 3.5" disk drives at speeds of up to 15K for SAS drives and up to 10K for SATA drives.
With plug-and-play configuration this tower enclosure can be set up in no time. On the back of the unit you will find eight SAS hard drive connectors, a single power supply connector, two cooling fan module connectors, and a single expander board connector. Users can also take advantage of four SFF-8644 and one SFF-8088 connectors making it easy to connect to host/expansion units. To manage this tower enclosure, Areca has integrated into the unit one 6-pin RJ-11 connector and one RJ-45 LAN connector.
The ARC-1883X offers increased performance and improved enterprise data protection. It is designed with a 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture, and PCIe 3.0 interface. It includes 8 ports of low profile as well as full height 12/16/24 internal ports with an additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port. - Four 12Gb/s SFF-8644 and one 6Gb/s SFF-8088 SAS host and expansion connections
- LED activity/status in each drive carrier
- Daisy chain capacity expansion for additional ARC-4038
- Plug-n-play additional capacity without shutting down
- Support CLI for configuration and environmental information
UPC: 764968123996 In the Box Areca ARC-4038X 8-Bay 12Gb SAS Expander JBOD Tower Enclosure Power Cord External Mini-SAS HD Cable PCIe RAID Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Areca ARC-4038X 8-Bay 12Gb SAS Expander JBOD Tower Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAreca ARC-4038X Specs | Number of Bays | 8 x 2.5"/3.5" | | Connections | 1 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s))
4 x Mini SAS (SFF-8088) (SAS-3 (12 Gb/s))
1 x RJ11 (UART)
1 x RJ45 (Ethernet) | | Compatible Drive Interface | SAS-3, SATA III | | | | AC Input Power | 90 to 256 VAC, 50 / 60 Hz | | Power Consumption | 220 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 11.9 x 5.8 x 11.4" / 302.0 x 146.0 x 290.0 mm | | Weight | 14.9 lb / 6.8 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 15.9 x 14.5 x 14.1" |
