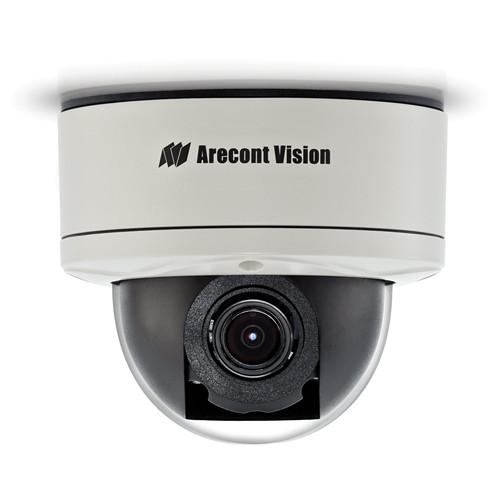

User Manual for Arecont Vision ARAV2256PM MegaDomeA 2 series 2.07 Mp Day Night Network Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision ARAV2256PM MegaDomeA 2 series
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision ARAV2256PM MegaDomeA 2 series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The ARAV2256PM MegaDomeA 2 2.07 Mp Day / Night IP Network Camera from Arecont Vision belongs to the wide dynamic range line of H.264 MegaDome 2 series cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides full 1920 x 1080 Mp at full video frame rates of 32 fps.With the features of casino mode, PSIA compliance, privacy masking, extended motion detection and flexible cropping, it is a high sensitivity, PoE (IEEE 802.3af) compliant camera. Built with MegaVideoA technology, this camera outputs full real-time frame rates and deliver the good quality megapixel imaging for both indoor and outdoor applications. - Easily adjustable 3-Axis gimbal
- Day / night functionality with removable IR cut filter
- IP66 and vandal-resistant dome, IK-10 rated
- Privacy mask, motion detection, flexible cropping and forensic zooming
- Dual encoder H.264 / MJPEG
- Bit rate and bandwidth limit control
- Auto adjustment between LDR and WDR modes
- Flexible Cropping : Crop to 2 pixels in H.264 and 1 pixel in JPEG
- Total PoE Solution to Power camera and fan
- PSIA and ONVIF conformant
- Remote focus, remote zoom and P-Iris lens
- All-in-one, wide dynamic range MegaDome 2 with motorized P-Iris lens
- MoonLight Mode: Extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- General purpose opto-coupled input and output
In the Box Arecont Vision ARAV2256PM MegaDomeA 2 series 2.07 Mp Day / Night Network Camera Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision ARAV2256PM MegaDomeA 2 series 2.07 Mp Day Night Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Arecont Vision ARAV2256PM MegaDomeA 2 series 2.07 Mp Day Night Network Camera can be downloaded in PDF format at the link stated below.
Technical parametersArecont Vision AV2256 Specs | | | Pixel Density | 2.07 Mp | | Imaging Device | Progressive scan CMOS WDR Image Sensor | | Optical Format | 1/3.2" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (non-binning): 0.3 lux @ F1.2 Day/Night: 0 lux | | Wide Dynamic Range | Up to 100 dB | | Signal-to-Noise Ratio | Maximum: 49 dB | | Pixel Density | 2.07 MP | | Full Field of View Resolution | 1.3 Mp: 1280x1024 720p: 1280x720 HDTV VGA: 640 x 480 | | Video Frame Rate | 30fps @ 1920x1080
41fps @ 1280x1024 | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG 21 levels of quality | | Transmission Protocol | TFTP, HTTP,RTSP, RTP/TCP, RTP/UDP | | Ethernet Interface | 100Base-T | | Multi-Streaming | 8 non-identical streams | | Motion Detection | On-Camera: Up to 1,024 detection zones | | White Balance | Auto multi-matrix white balance | | Flicker Filter Control | 50 / 60 Hz | | PTZ Control | Electronic pan, tilt, zoom | | Image Flip | Electronic: 180º rotation | | Shutter Speed | 1 to 500 ms | | | | Lens Type | 3 to 9 mm, F1.2, remote focus, zoom and P-iris lens | | Field of View | Horizontal Field Of View: 81 to 27° | | | | Power Over Ethernet | 802.3 af | | Power | Auxiliary Power: 12 to 48 VDC and 24 VAC | | Power Consumption | 10.7 W | | | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RoHS, REACH, IK-10 (EN62262), IP66 (EN60529) CE Mark | | Standard | PSIA and ONVIF conformant | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | | | Casing | Die-cast aluminum chassis with 4.0" (10.1 cm) polycarbonate dome bubble
IP66 rated for dust and water ingress Vandal-resistant
IK-10 protection rating | | Adjustments | Camera Adjustment: 3-axis camera adjustment with 360° pan, 90° tilt & 360° z-axis | | Dimensions | Diameter: 5.5 x 4.9" (140.3 x 124.6 mm)
Bubble only: 4.0 x 2.4" (102.0 x 61.8 mm) | | Weight | Camera: 2.25 lb (1.02 kg) |
