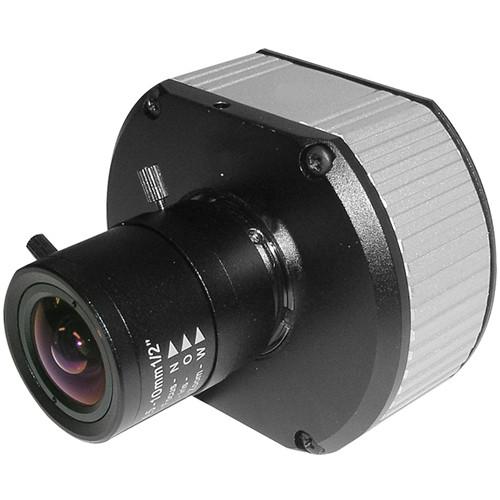

User Manual for Arecont Vision AV10115 10 MP 1080p Dual Mode H.264 IP MegaVideo Color Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV10115 10 MP 1080p
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV10115 10 MP 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV10115 10 MP/1080p Dual Mode H.264 IP MegaVideo Color Camera is an innovative security device designed to deliver videos with unparalleled high-definition resolution up to 3648 x 2752. With its 10 MP CMOS sensor, the camera can capture excellent imagery of the surveillance area at up to 7 fps.
With the forensic zooming feature, the MegaVideo Camera allows you to zoom in on specific portions of the live recording or after-event video, when simultaneously recording the full field-of-view in HD. This is useful when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases. All this is possible thanks to Arecont Vision's MegaVideo image processing that helps the camera perform 80 billion operations per second to deliver full resolution videos and region of interest streams.
Video footage can be stored in either MJPEG or H.264 (MPEG4, Part 10) compression format, which provides small-sized files and uses less network bandwidth. For efficient data management, you can send videos up to 8 concurrent, non-identical streams with different frame or bit rates, resolutions, and picture quality.
With up to 1024 distinct motion detection zones, the camera triggers an alarm if any movement is detected in these zones for efficient video recording. You can also protect the privacy of people in the surveillance area by blocking multiple regions of a video in almost any arbitrary shape. The Power over Ethernet feature (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply. - Imaging
-
- Unparalleled high-definition resolution at 3648 x 2752
- Dual mode 10 MP and 1080p
- Up to 7 fps at 10 MP and up to 32 fps at 1080p
- Operates in areas with a minimum illumination of 0.42 lux (non-binned) to ensure clear images even in low-light conditions
- MoonLight mode offers extended exposure and proprietary noise cancellation
- Data Transmission
-
- Dual encoder H.264 (MPEG Part 10) and MJPEG
- Multi-streaming function enables you to stream up to 8 concurrent, non-identical streams with different frame-rates, bit-rates, resolutions, and picture quality
- Forensic zooming
-
- Allows you to zoom into specific areas of either a live recording or after-event video when recording the full field-of-view in HD
- Programmability
-
- Flexible cropping to eliminate unnecessary portions of an image
- Bit rate control feature to maintain the required bandwidth and storage size
- Backlight compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light
- Auto Exposure (AE) and Gain Control (AGC) >120dB
- Automatic gain control adjusts the signal strength to maintain a constant brightness level
- Auto multi-matrix white balance
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Picture-in-Picture offers simultaneous delivery of full field-of-view and zoomed images
- Programmable shutter speed to help control motion blur
- Motion detection triggers an alarm when movement is detected in a designated portion of the video display
- Privacy masking allows you to enables video to be blocked in multiple regions in almost any arbitrary shape
- Electronic 180° image flip
- 50/60Hz selectable flicker control ensures seamless viewing of moving images
- Electronic pan, tilt, zoom (PTZ)
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Bandwidth & storage savings by running at 1/4 resolution
- Power Supply
-
- Power over Ethernet (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply
- Auxiliary power - 12-48 VDC / 24 VAC
- Compact and Lightweight
-
- Small enough to fit in a 4" housing
- Ensures quick and easy installation
- Suitable for security applications that need the camera with a low-profile design
In the Box Arecont Vision AV10115 10 MP/1080p Dual Mode H.264 IP MegaVideo Color Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV10115 10 MP 1080p Dual Mode H.264 IP MegaVideo Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV10115 Specs | Sensor | Type: 10 MP CMOS image sensor
Format: 1/2.3" optical format
Pixel: 1.67 μm pixel pitch
Filter: Bayer mosaic RGB filter
Binned Mode (2 x 2): 2.5M to improve low light performance | | Lens Mount | C/CS | | Maximum Resolution | Mode 1: 3648(H) x 2752(V)
Mode 2: 1920(H) x 1080(V) | | Minimum Illumination | Color (non-binned): 0.42 lux at f/1.4
Color (binned): 0.21 lux at f/1.4 | | Dynamic Range | 57.2 dB | | S/N Ratio | Maximum SNR 40 dB | | Resolutions | Full Field of View (FOV) Resolution
3648(H) x 2752(V) at 10 MP
1920(H) x 1080(V) at HDTV-1080p
1824(H) x 1376(V) at 2.5 MP
Cropped (FOV) Resolution
2592 x 1944 at 5 MP
2560 x 1600 at WQXGA
2048 x 1536 at 3 MP
1920 x 1080 at HDTV - 1080p
600 x 1200 at 2 MP
1280 x 1024 at 1.3 MP
1280 x 720 at HDTV - 720p
640 x 480 at VGA | | Data Transmission | Video frame rate up to:
7 fps at 3648 x 2752
14 fps at 2592 x 1944
19 fps at 2048 x 1536
28 fps at 1920 x 1080
39 fps at 1280 x 1024
Video frame rate in binned mode:
32 fps at 1920 x 1080
27 fps at 1824 x 1376
47 fps at 1296 x 972
57 fps at 1024 x 768 | | Compression | H.264 (MPEG4, Part 10)
Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Data Rate | Bit rate control from 100 Kbps to 10 Mbps
Unthrottled data rate up to 70 Mbps | | Streaming Capability | Multi-streaming: 8 non-identical streams | | Electrical | General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power 12-48 VDC, 24 VAC
Power consumption: 5 W maximum | | Regulatory | FCC, CE, RoHS, UL | | Environmental | Operating temperature: 23 to 140°F (-5 to 60˚C)
Stable image temperature: 32 to 122°F (0 to 50˚C)
Storage temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Compliance | PSIA compliance | | Dimensions (W x H x D) | 3 x 2.5 x 1.25" (76 x 63.5 x 31.7 mm) (without lens) | | Weight | 5.8 oz (164 grams) (without lens) |
