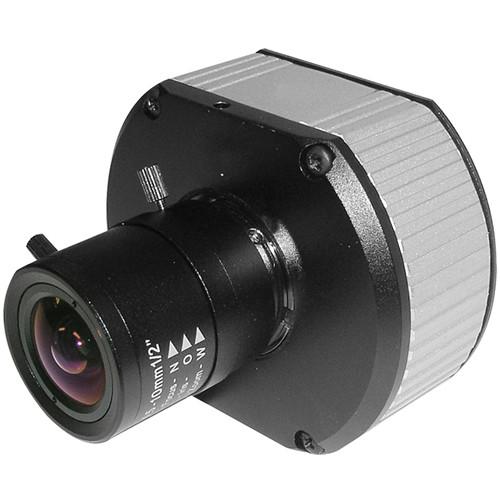

User Manual for Arecont Vision AV10115DNV1 Dual Mode 10 Mp IP MegaVideo Day Night Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV10115DNV1 Dual Mode 10
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV10115DNV1 Dual Mode 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV10115DNV1 10 Mp IP MegaVideo Day/Night Camera is a compact, dual mode camera with a resolution of 1080p. It features a frame rate of up to 7 fps at 10 Mp, and up to 32 fps at 1080p with an HD imaging resolution of 3648 x 2752. Additionally, it features a binning technique that helps improve low-light performance. - Dual Encoder H.264 (MPEG Part-10) & MJPEG
- On-camera real-time motion detection with 1024 detection zones
- Auto backlight compensation
- Auto multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom)
- Electronic image flip - 180° rotation
- Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight mode allows for extended exposure and proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Picture-in-Picture: Simultaneous delivery of full field of view and zoomed images
- Saves bandwidth and storage when running at 1/4 resolution
- General purpose opto-coupled input and output
In the Box Arecont Vision AV10115DNV1 Dual Mode 10 Mp IP MegaVideo Day/Night Camera Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV10115DNV1 Dual Mode 10 Mp IP MegaVideo Day Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Arecont Vision AV10115DNV1 Dual Mode 10 Mp IP MegaVideo Day Night Camera can be downloaded in PDF format at the link stated below.
Technical parametersArecont Vision AV10115 Specs | | | Sensor | 10 Mp CMOS | | Mode | Binned (2x2): 2.5M to improve low light performance | | Maximum Resolution | Mode 1: 3648 (H) x 2752 (V)
Mode 2: 1920 (H) x 1080 (V) | | Optical Format | 1/2.3" | | Pixel Pitch | 1.67 μm | | Minimum Illumination | Color: Non-Binned 0.42 lux @ F1.4
Binned 0.21 lux @ F1.4 | | Dynamic Range | 57.2 dB | | S/N Ratio | 40 dB | | Resolution | Full Field of View (FOV): 10 Mp: 3648 x 2752
HDTV-1080p: 1920 x 1080
2.5 Mp: 1824 x 1376
Cropped (FOV): 5MP: 2592 x 1944
WQXGA: 2560 x 1600
3 Mp: 2048 x 1536
HDTV-1080p: 1920 x 1080
2 Mp: 1600 x 1200
1.3 Mp: 1280 x 1024
HDTV-720p: 1280 x 720
VGA: 640 x 480 | | | | Transmission | Video Frame Rate: Up to 7 fps @ 3648 x 2752
14 fps @ 2592 x 1944
19 fps @ 2048 x 1536
28 fps @ 1920 x 1080
39 fps @ 1280 x 1024
In Binned Mode: 32 fps @ 1920 x 1080
27 fps @ 1824 x 1376
47 fps @ 1296 x 972
57 fps @ 1024 x 768 | | Compression | H.264 (MPEG4, Part 10)
Motion JPEG
21 levels of quality | | Protocols | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100 Base-T Ethernet | | Data Rate | Bit rate control from 100 Kbps to 10 Mbps
Un-throttled data rate up to 70 Mbps | | Multi-Streaming | 8 non-identical streams | | | | Power Over Ethernet | PoE 802.3af for camera | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Power Consumption | 5 W maximum | | | | Temperature | Operating: 23 to 140 °F (-5 to 60˚C)
Stable image: 32 to 122°F (0 to 50˚C)
Storage: -4 to 140°F (-20 to 60˚C) | | Humidity | 0 to 90% (non-condensing) | | Auto Exposure | Gain Control: > 120 dB | | Flicker Filter Control | 50/60 Hz selectable | | Image Flip | Electronic: 180° | | Approvals | FCC, CE, RoHS, UL | | Mount | C / CS lens mount | | Dimensions (W x H x D) | 3.0 x 2.5 x 1.25" (76.0 x 63.5 x 31.7 mm) without lens | | Weight | 5.8 oz (164 g) without lens | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.1 x 4.0 x 3.5" |
