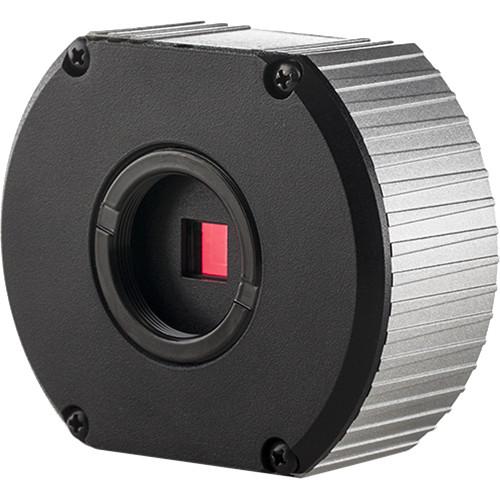

User Manual for Arecont Vision AV10215DN MegaVideo G5 10MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV10215DN MegaVideo G5 10MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV10215DN MegaVideo G5 10MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV10215DN MegaVideo G5 10MP Network Box Camera from Arecont Vision records and transmits video at a maximum resolution of 3648 x 2752 at 7 fps. This camera is compatible with select lenses (sold separately). It is suitable for applications with challenging lighting conditions that include strong back lighting or scenes with reflections from wet flooring/puddles.
Dual mode allows the camera to switch between 10MP and 1080p recording. The camera's power can be supplied via a Power-over-Ethernet network cable or a 12 to 48 VDC / 24 VAC power supply (sold separately).
The MegaVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer. - Maximum 10MP resolution video
- True day/night functionality with mechanical IR cut filter
- SNAPstream capability reduces bandwidth use without impacting image quality
- Binning mode for strong low light performance
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multi-casting, and forensic zooming
- Compatible lenses sold separately
- 12 to 48VDC/24VAC PoE and auxiliary power
- Small size for flexible mounting options
- Dual mode allows the camera to switch between 10MP and 1080p video streaming or recording
- Binning mode resolutions include 1920 x 1080 at 29 fps, 1824 x 1376 at 26 fps, 1296 x 972 at 43 fps, and 1024 x 768 at 54 fps
- IPv4, IPv6, HTTP, , QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, and DHCP network protocols supported
- Electronic pan and tilt (PTZ)
UPC: 847778000869 In the Box Arecont Vision AV10215DN MegaVideo G5 10MP Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV10215DN MegaVideo G5 10MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV10215 Specs | | | Sensor | 10 MP 1/2.3" | | Lens Mount | CS | | Zoom | Digital | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.42 Lux
B&W: 0.04 Lux | | Shutter Speed | 1 to 500 Seconds | | | | Streaming Resolution | 3648 x 2752 at 7 fps
2592 x 1944 at 12 fps
2048 x 1536 at 18 fps
1920 x 1080 at 25 fps
1280 x 1024 at 37 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Security | IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, TCP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Alarm | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | Certifications | FCC (Part 15 Class A), UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Material of Construction | Aluminum | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions | H: 2.5 x W: 3.0 x L: 1.3" / H: 6.3 x W: 7.6 x L: 3.3 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 0.585 lb | | Box Dimensions (LxWxH) | 4.1 x 4.1 x 3.6" |
