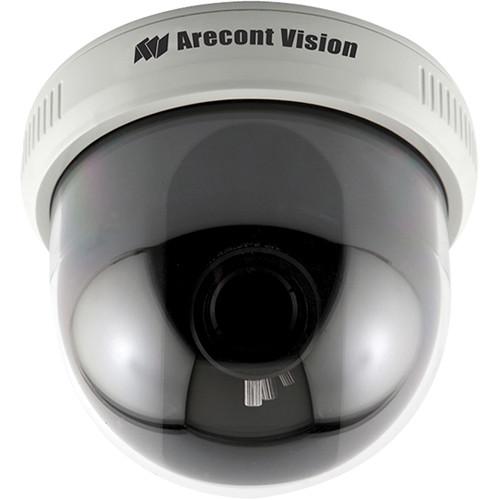

Product description The Arecont Vision AV1115DNv1 MegaVideo IP Day/Night Camera with Surface Mount Dome & Lens features the MPL33-12 3.3 to 12mm Varifocal Lens and the D4S Indoor 4" Surface Mount Dome. The MegaVideo Compact series camera features a 1.3 Mp CMOS image sensor and records videos at a resolution of up to 1280 x 1024 at 42 fps. It is a true day and night camera that captures crisp and clear images in a minimum illumination of up to 0 lux thanks to the removable ICR (IR Cut Filter). - Camera:
- Imaging
- 1.3 Mp CMOS image sensor
- 1/2.7" optical format
- Full Resolution: 1920 x 1080 pixel array
Programmability - Flexible cropping
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- On-camera real-time motion detection and Privacy Mask feature with 1,024 detection zones
- Backlight Compensation
- Auto Multi-Matrix White Balance
- 50 / 60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom)
- Electronic Image Flip: 180° rotation
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight mode allows extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Simultaneous delivery of full field-of-view and zoomed images
- Bandwidth and storage savings by running at 1/4 resolution
- Multi-streaming with 8 non-identical streams
Additional Features - UL listed
- PSIA and ONVIF conformant
- Lens:
-
- 3.3 to 12mm varifocal CS-mount lens
- Aperture: f/1.4
- Optical format of 1/2.5"
- IR corrected
- High sharpness, low distortion, good relative illumination, and compact size
- Dome:
-
- Easy to install, beige colored surface mount dome for indoor applications
- 2-axis gimbal for camera positioning
- Housing Material: Acrylonitrile Butadiene Styrene (ABS) plastic
- Dome Cover Protection: Acrylic (PMMA)
In the Box Arecont Vision AV1115DNv1 MegaVideo IP Day/Night Camera with Surface Mount Dome & Lens D4S Indoor Dome Surface Mount MPL33-12 3.3 to 12mm Varifocal Lens Rubber Gasket (Pre-Installed on the Camera) CD with AV100 Software (License Key Required for Recording) C to CS Lens Adapter 0.5mm Lens Spacer Ring 6-Position External Power & Input / Output Plug 0.05" Hex L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV1115DNv1 MegaVideo IP Day Night Camera with Surface Mount Dome & Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision D4S-AV1115 Specs | | | Sensor | Type: 1.3 Mp CMOS image sensor
Format: 1/2.7" optical format
Pixel: 3 μm pixel pitch | | Minimum Illumination | Color (Non-Binned): 0.1 lux @ f/1.4
Day/Night: 0 lux, IR sensitive | | Lens Mount | C / CS | | Dynamic Range | 69 dB | | S/N Ratio | 45 dB, maximum | | Resolution | Full Resolution: 1920 x 1080 pixel array
Full Field of View
1280 x 1024 @ 1.3 Mp
640 x 512 @ 1/4 resolution
Cropped Field of View
Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
1280 x 720 at HDTV-720p, 640 x 480 at VGA, 352 x 288 at CIF, 320 x 240 at SIF | | Data Transmission | Video Frame Rate
Up to 42 fps @ 1280 x 1024 | | Compression | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet | | Electrical | General purpose opto-coupled input and output
PoE 802.3af for the camera
Auxiliary Power: 12 to 48 VDC, 24 VAC | | Power Consumption | 5.1 W, maximum | | Standard | PSIA and ONVIF conformant | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3 RoHS, REACH
CE Mark | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Dimensions (W x H x D) | 3.00 x 2.50 x 1.25" (76.00 x 63.50 x 31.70 mm) without lens | | Weight | 5.8 oz (164.0 g) without lens | | | | Image Format | 1/2.5" | | Focal Length | 3.3 to 12 mm | | Aperture | f/1.4 | | Mount Type | CS | | Minimum Object Distance | 0.33' (0.10 m) | | Iris | Manual | | Back Focal Length | 6.49 to 13.94 mm | | Field of View | Horizontal:
Wide @ 3.3 mm: 61°
Tele @ 12 mm: 21° | | Dimensions (Ø x L) | 1.2 x 1.3" (30.0 x 33.4 mm) | | | | Environmental | Operating Temperature: 23 to 113°F (-5 to 45°C)
Storage Temperature: -22 to 140°F (-30 to 60°C)
Humidity: 0 to 90% (non-condensing) | | Dimensions (Ø x H) | Bubble Cover: 4.00 x 2.90" (101.60 x 73.66 mm)
Housing: 4.70 x 3.80" (119.38 x 96.52 mm) | | Weight | Without Camera: 0.47 lb (0.22 kg)
With Camera and Lens: 0.98 lb (0.45 kg) |
