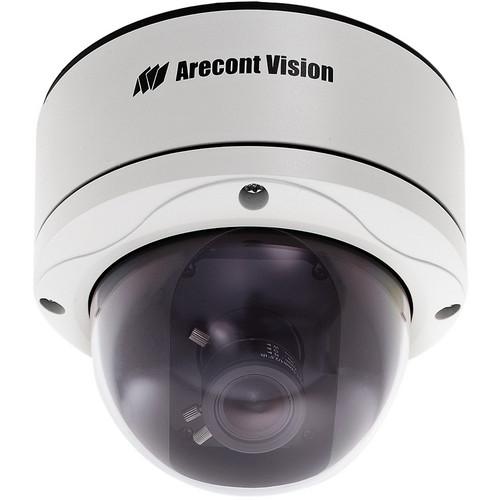

User Manual for Arecont Vision AV1115v1 MegaVideo IP Day Night Camera with Outdoor Surface Mount Dome Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV1115v1 MegaVideo IP Day
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV1115v1 MegaVideo IP Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV1115v1 MegaVideo IP Day/Night Camera with Outdoor Surface Mount Dome features the MPL33-12 3.3 to 12mm Varifocal Lens and the D4SO Outdoor 4” Surface Mount Dome. The MegaVideo Compact series camera features a 1.3 Mp CMOS image sensor and records videos at a resolution of up to 1280 x 1024 at 42 fps. It is a true day and night camera that captures crisp and clear images in a minimum illumination of up to 0 lux thanks to the removable ICR (IR Cut Filter). - Camera:
- Imaging
- 1.3 Mp CMOS image sensor
- 1/2.7" optical format
- Full Resolution: 1920 x 1080 pixel array
Programmability - Flexible cropping
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- On-camera real-time motion detection and Privacy Mask feature with 1,024 detection zones
- Backlight Compensation
- Auto Multi-Matrix White Balance
- 50 / 60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom)
- Electronic Image Flip: 180° rotation
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight mode allows extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Simultaneous delivery of full field-of-view and zoomed images
- Bandwidth and storage savings by running at 1/4 resolution
- Multi-streaming with 8 non-identical streams
Additional Features - UL listed
- PSIA and ONVIF conformant
- Lens:
-
- 3.3 to 12mm varifocal CS-mount lens
- Aperture: f/1.4
- Optical format of 1/2.5"
- IR corrected
- High sharpness, low distortion, good relative illumination, and compact size
- Dome:
-
- Easy to install 4” surface mounting dome designed for outdoor applications
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
- Casing: Die-cast aluminum chassis with 4” polycarbonate dome bubble
- IP66-rated and vandal-resistant dome
In the Box Arecont Vision AV1115v1 MegaVideo IP Day/Night Camera with Outdoor Surface Mount Dome D4SO Outdoor Dome Surface Mount MPL33-12 3.3 to 12mm Varifocal Lens Rubber Gasket (Pre-Installed on the Camera) CD with AV100 Software (License Key Required for Recording) C to CS Lens Adapter 0.5mm Lens Spacer Ring 6-Position External Power & Input / Output Plug 0.05" Hex L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV1115v1 MegaVideo IP Day Night Camera with Outdoor Surface Mount Dome in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision D4SO-AV1115 Specs | | | Sensor | Type: 1.3 Mp CMOS image sensor
Format: 1/2.7" optical format
Pixel: 3 μm pixel pitch | | Minimum Illumination | Color (Non-Binned): 0.1 lux @ f/1.4
Day/Night: 0 lux, IR sensitive | | Lens Mount | C / CS | | Dynamic Range | 69 dB | | S/N Ratio | 45 dB, maximum | | Resolution | Full Resolution: 1920 x 1080 pixel array
Full Field of View
1280 x 1024 @ 1.3 Mp
640 x 512 @ 1/4 resolution
Cropped Field of View
Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
1280 x 720 at HDTV-720p, 640 x 480 at VGA, 352 x 288 at CIF, 320 x 240 at SIF | | Data Transmission | Video Frame Rate
Up to 42 fps @ 1280 x 1024 | | Compression | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet | | Electrical | General purpose opto-coupled input and output
PoE 802.3af for the camera
Auxiliary Power: 12 to 48 VDC, 24 VAC | | Power Consumption | 5.1 W, maximum | | Standard | PSIA and ONVIF conformant | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3 RoHS, REACH
CE Mark | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Dimensions (W x H x D) | 3.00 x 2.50 x 1.25" (76.00 x 63.50 x 31.70 mm) without lens | | Weight | 5.8 oz (164.0 g) without lens | | | | Image Format | 1/2.5" | | Focal Length | 3.3 to 12 mm | | Aperture | f/1.4 | | Mount Type | CS | | Minimum Object Distance | 0.33' (0.10 m) | | Iris | Manual | | Back Focal Length | 6.49 to 13.94 mm | | Field of View | Horizontal:
Wide @ 3.3 mm: 61°
Tele @ 12 mm: 21° | | Dimensions (Ø x L) | 1.2 x 1.3" (30.0 x 33.4 mm) | | | | Casing | IP66-rated weatherproof
Vandal resistant, IK10 rated | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50°C) without heater
Storage Temperature: -22 to 140°F (-30 to 60°C)
Humidity 0 to 90% (non-condensing) With heater (sold separately) the operating temperature range is -22 to 122°F (-30 to 50°C). | | Dimensions (Ø x H) | Total Unit: 5.5 x 4.9" (140.3 x 124.6 mm)
Only Bubble: 4.0 x 2.4" (102.0 x 61.8 mm) | | Weight | 2.00 lb (0.91 kg) |
