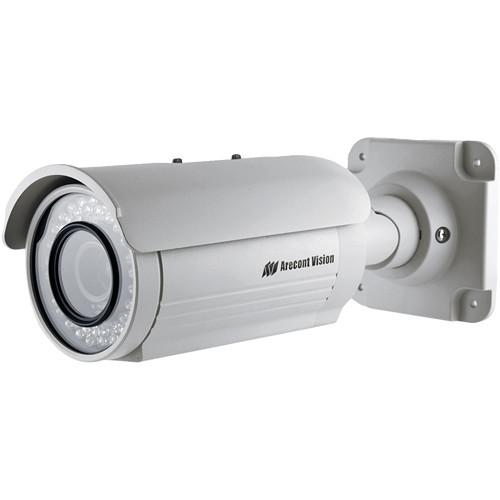

User Manual for Arecont Vision AV1125DN 1.3 MP Day Night MegaView PoE IP Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV1125DN 1.3 MP Day
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV1125DN 1.3 MP Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV1125DN 1.3 MP Day/Night MegaView PoE IP Camera is an all-in-one security device designed to deliver videos with unparalleled high-definition resolution up to 1280 x 1024. With its 1.3 MP CMOS sensor, the camera can capture excellent imagery of the surveillance area at up to 42 fps.
With the forensic zooming feature, the MegaVideo Camera allows you to zoom in for post-event investigations when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases. All this is possible thanks to Arecont Vision's MegaVideo image processing that helps the camera perform 80 billion operations per second to deliver full resolution videos and region of interest streams.
Video footage can be stored in either MJPEG or H.264 (MPEG4, Part 10) compression format, which provides small-sized files and uses less network bandwidth. For efficient data management, you can send videos up to 8 concurrent, non-identical streams with different frame or bit rates, resolutions, and picture quality.
With up to 1024 distinct motion detection zones, the camera triggers an alarm if any movement is detected in these zones. In addition, you can protect the privacy of people in the surveillance area by blocking multiple regions of a video in almost any arbitrary shape. The Power over Ethernet (PoE) feature transfers both power and data over a single Ethernet network cable, eliminating the need to hard-wire the camera or use a separate power supply. An integrated heater and blower is used to regulate the internal temperature of the camera, enabling it to operate in temperatures ranging from -40 to 122°F (-40 to 50°C). - Imaging
-
- Unparalleled resolution at 1280 x 1024 at 42 fps
- 1.3 MP CMOS sensor
- Operates in areas with a minimum illumination of 0 lux to ensure clear images even in dark areas
- Data Transmission
-
- Dual encoder H.264 (MPEG Part 10) and MJPEG
- Multi-streaming function enables you to stream up to 8 concurrent, non-identical streams with different frame-rates, bit-rates, resolutions, and picture quality
- Forensic zooming
-
- Allows you to zoom in for post-event investigations when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases
- Programmability
-
- Flexible cropping to eliminate unnecessary portions of an image
- Casino mode ensures that the camera maintains 30 fps
- Bit rate control feature to maintain the required bandwidth and storage size
- Backlight compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light
- Automatic gain control adjusts the signal strength to maintain a constant brightness level
- Auto multi-matrix white balance
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Picture-in-Picture offers simultaneous delivery of full field-of-view and zoomed images
- Programmable shutter speed to help control motion blur
- On-camera real-time motion detection with 1024 detection zones
- Privacy masking allows you to block videos in multiple regions in almost any arbitrary shape
- Electronic 180° image flip
- 50/60Hz selectable flicker control ensures seamless viewing of moving images
- Electronic pan, tilt, and zoom (PTZ)
- MoonLight mode extends exposure and proprietary noise cancellation
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Bandwidth and storage savings by running at 1/4 resolution
- External lens adjustment including zoom, iris, and focus
- Power Supply
-
- Power over Ethernet (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply
- Auxiliary power - 12 to 48 VDC / 24 VAC for IR illuminator, heater and blower
- Housing
-
- IP66-rated, vandal-resistant aluminum cylindrical (bullet-style) housing
- Easily adjustable 3-axis bracket
- Compact & Lightweight
-
- Ensures quick and easy installation
- Suitable for security applications that need the camera with a low-profile design
In the Box Arecont Vision AV1125DN 1.3 MP Day/Night MegaView PoE IP Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV1125DN 1.3 MP Day Night MegaView PoE IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1125 Specs | Sensor | Type: 1.3 MP CMOS image sensor
Format: 1/2.7" optical
Pixel: 3 μm
Filter: Bayer mosaic RGB | | Lens | Focal length: 4.5 to 10 mm varifocal lens with IR corrected
Max Aperture: F/1.6
Horizontal F.O.V - 22 to 48˚ | | Minimum Illumination | Day/Night: 0 lux, IR sensitive | | Dynamic Range | 69 dB | | S/N Ratio | 45 dB | | Full Field of View Resolution | 1280x 1024 at 1.3 MP
640 x 512 at 1/4 resolution | | Cropped (FOV) Resolution | Flexible cropping
1280 x 720 at HDTV-720p
640 x 480 at VGA
352 x 288 at CIF
320 x 240 at SIF | | Data Transmission | 42 fps at 1280 x 1024 | | Compression | H.264 (MPEG4, Part 10), Motion JPEG | | Quality | 21 levels | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Data Rate | Bit rate control from 100 Kbps to 10 Mbps
Unthrottled data rate up to 55 Mbps | | Streaming | Multi-streaming: 8 non-identical streams | | Electrical | General purpose: opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power: 12 to 48V DC
Power consumption: 7.9 W maximum | | Heater & Blower | Voltage input: 12 to 48 VDC or 24V AC (separate power required)
Power output: 10 W Max (DC12V) / 28.8 W Max ( AC24V)
Switch: On: 39.2°F (4°C), Off: 44.6°F (7°C) | | Regulatory Approvals | FCC, CE, RoHS, UL | | Compliance | PSIA compliance | | Environmental | IP66 weatherproof standard
Operating temperature: -40 to 122°F (-40 to 50˚C)
Stable image temperature: 32 to 122°F (0 to 50˚C)
Storage temperature: -22 to 140°F (-30 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Mechanical | Easily adjustable 3-axis bracket
Vandal-resistant aluminum cylindrical (Bullet-style) housing
External lens adjustment including zoom, iris and focus | | Dimensions (H x W x D) | 4 x 4.3 x 11.5" (102 x 111 x 293 mm) | | Weight | 3.74 lb (1.69 kg) |
