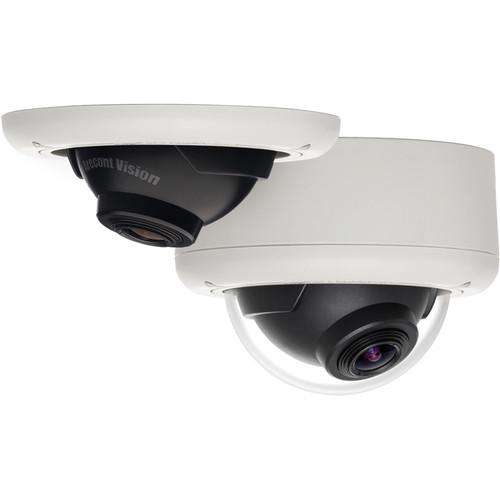

User Manual for Arecont Vision AV1145DN-3310-D-LG 1.3 Mp MegaBall Indoor Day Night Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV1145DN-3310-D-LG 1.3 Mp MegaBall
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV1145DN-3310-D-LG 1.3 Mp MegaBall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The stylish AV1145DN-3310-D-LG 1.3 Mp MegaBall Indoor Day / Night Dome Camera from Arecont Vision comes in a in light gray dome housing provides ample resolution to zoom-in for details in live or recorded video. This indoor, all-in-one solution integrates a 1.3 Mp camera with fast frame rates and a choice of IR-corrected, 3.3 to 10mm vari-focal lens with adjustable surface mount light gray dome housing. H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Additionally, day / night functionality allows for 24 hours surveillance. General Features - All-in-one H.264 indoor 3" ball shape day / night camera with integrated lens
- True Day / Night functionality with a mechanical IR cut filter
- Dual encoder H.264 / MJPEG
- 3.3 to 10mm vari-focal lens
- Surface mount bracket & dome configuration
- Installer friendly with external lens adjustment, cable management, 3-axis adjustment, surface mount, and bubble
- Privacy mask, motion detection, flexible cropping, and forensic zooming
Programmability - Motion Detection and privacy mask with 1024 detection zones
- Flexible Cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- Electronic PTZ (pan, tilt, zoom) and image flip 180°, 50 / 60 Hz selectable flicker control
- Programmable resolution, brightness, saturation, gamma, sharpness, tint, and shutter speed
Compliance - Industry Standard: PSIA & ONVIF Conformant
- FCC Compliance: 47 CFR 15 Class A
- Environmental: RoHS, REACH, WEEE
- Marking: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950
In the Box Arecont Vision AV1145DN-3310-D-LG 1.3 Mp MegaBall Indoor Day / Night Dome Camera AV100 Software CD Pack of 3 Wood Screws 3 x Dry Wall Anchor Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV1145DN-3310-D-LG 1.3 Mp MegaBall Indoor Day Night Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1145 Specs | | | Image Sensor | 1.3 Mp effective CMOS image sensor | | Optical Format | 1/2.7" | | Pixel Pitch | 3 µm | | Minimum Illumination | 0 Lux, IR sensitive | | Resolution | Full FOV (H x V): 1280 x 1024
1/4 Resolution: 640 x 512 | | Dynamic Range | 69 dB | | Frame Rates | At Maximum Resolution: 42 fps (1280 x 1024) | | Lens | 3.3 to 10 mm, 1/2.5", F1.6, 90 to 31° (H-FOV) | | | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | RTSP, RTP / TCP, RTP / UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | | | Digital Input | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 5.0 W DC Power | | | | Casing | Plastic surface dome with Acrylic bubble | | Lens | External lens adjustment for zoom, focus, and iris | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt, and 360° z-axis | | | | Operating Temperature | -23 to 122°F (-5 to +50°C ) | | Stable Image Temperature | 32 to 122°F (0 to +50°C) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Dome | Light Gray | | Dimensions (Ø x H) | 5.10 x 3.85" (129.54 x 97.79 mm) | | Weight | 1.20 lb (0.54 kg) |
