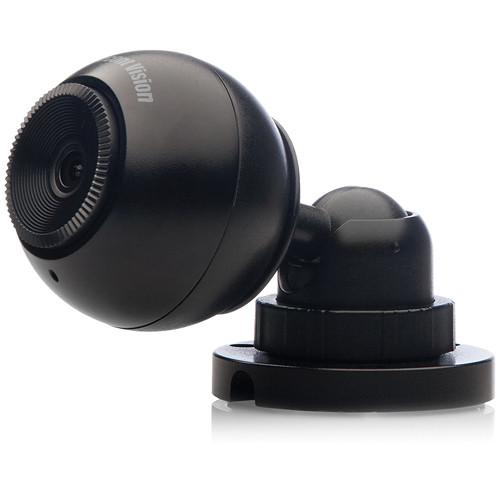

User Manual for Arecont Vision AV1145DN-3310-W 1.3 MP IP MegaBall Day Night Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV1145DN-3310-W 1.3 MP IP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV1145DN-3310-W 1.3 MP IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV1145DN-3310-W 1.3 MP IP MegaBall Day/Night Camera (3.3 to 10mm Lens) is an all-in-one solution with an integrated megapixel IP camera and a 3.3 to 10mm lens. This wall mountable camera records high-definition videos at a resolution of up to 1280 x 1024. - Imaging
-
- 1.3 MP CMOS image sensor
- Full Resolution: 1280 (H) x 1024 (V) pixel array
- 1/2.7" optical format
- 3 μm pixel pitch
- Dynamic range of 69 dB
- Maximum SNR of 45 dB
- Programmability
-
- Flexible cropping and low-light noise filter control
- Shutter Speed: 1 to 500 ms
- Backlight compensation and multi-matrix white balance
- On-camera motion detection and privacy mask with 1024 detection zones
- 50 / 60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom) and image flip (180°) rotation
- MoonLight Mode: Extended exposure and proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Bitrate and bandwidth limitation control
In the Box Arecont Vision AV1145DN-3310-W 1.3 MP IP MegaBall Day/Night Camera (3.3 to 10mm Lens) Wall Mount Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV1145DN-3310-W 1.3 MP IP MegaBall Day Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1145 Specs | | | Sensor | Type: 1.3 MP CMOS image sensor
Format: 1/2.7" optical
Pixel: 3 μm pitch | | Minimum Illumination | Color (Non-Binned): 0.1 lux at f/1.4 | | Dynamic Range | 69 dB | | S/N Ratio | 45 dB | | Resolution | Full Field of View (FOV)
1280 x 1024 at 1.3 MP
640 x 512 at 1/4 resolution
Cropped (FOV)
Flexible Cropping - Crop to 2 pixels in H.264 and 1 pixel in JPEG
1280 x 720 at HDTV-720p
640 x 480 at VGA | | Data Transmission | Video frame rate up to: 42 fps at 1280 x 1024 | | Compression | H.264 (MPEG4, Part 10), Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Data Rate | Bit rate control from 100 Kbps to 10 Mbps
Unthrottled data rate up to 55 Mbps | | Streaming Capability | Multi-Streaming: 8 non-identical streams | | Electrical | General Purpose: opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary Power: 12 to 48 VDC, 24 VAC
Power Consumption: 4.5 W maximum
Optional DC AI connection | | Regulatory | FCC, CE, RoHS, UL | | Compliance | PSIA compliance | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Dimensions (Ø x H) | Ø 3 x 6.15" (76.2 x 156.2 mm) | | Weight | 1.2 lb (0.54 kg) | | | | Focal Length | 3.3 to 10 mm | | Aperture | F1.6 | | Field of View | H: 55° |
